OCYJ313 Integrated GNSS Deception and Interference Monitoring System
Real-time monitoring with switchable sound and light alarms
Multi-directional and multi-angle monitoring capabilities
Rapid alarm transmission via fiber optic or wireless links
Integrated deception, interference, monitoring, and alarm functions
Solar-powered for continuous and sustainable outdoor operation
High detection sensitivity of better than -125dBm
Supports no less than 12 independent channels per frequency point
High reliability with a detection probability exceeding 95%
- Description
- Datasheet
- Reviews (0)
Description

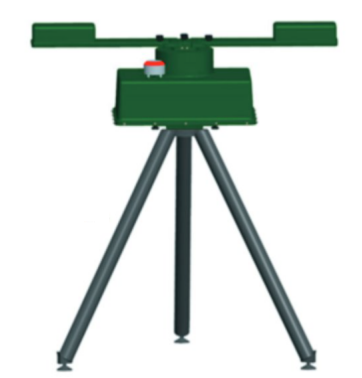

The OCYJ313 is an integrated GNSS deception and interference monitoring and alarm system designed for comprehensive low-altitude defense. It consists of a main unit, a stable tripod, a solar panel for sustainable power, and a power adapter. The device provides real-time monitoring of B3I spoofing and interference signals within its coverage area. Upon detecting a spoofing signal intrusion, it triggers immediate sound and light alarms and transmits alerts rapidly via fiber optic or wireless links. This intelligent equipment is widely used for security in public safety, military operations, civil airports, nuclear power plants, power grids, and prisons, offering high sensitivity and multi-angle monitoring to effectively prevent navigation spoofing attacks in sensitive areas.
OCYJ313 |
|
|
OCYJ313 Integrated GNSS Deception and Interference Monitoring System |
|
Property |
Value |
|
OCYJ-313 |
Detection Probability / Better than 95% |
|
Signal Type |
B3I (Other frequency points customizable) |
|
Signal Detection Sensitivity |
Better than -125dBm (95% detection probability) |
|
Number of Detection Channels |
No less than 12 independent channels per frequency point |
|
Detection Probability |
Better than 95% |
|
Main Components |
Main unit, Tripod, Solar panel, Power adapter |
|
Alarm Methods |
Sound and light, Fiber optic link, Wireless transmission |
|
Application Areas |
Public Security, Military, Civil Airports, Nuclear Power Plants, Power Grids, Prisons |
Features |
|
|
Real-time monitoring with switchable sound and light alarms |
|
|
Multi-directional and multi-angle monitoring capabilities |
|
|
Rapid alarm transmission via fiber optic or wireless links |
|
|
Integrated deception, interference, monitoring, and alarm functions |
|
|
Solar-powered for continuous and sustainable outdoor operation |
|
|
High detection sensitivity of better than -125dBm |
|
|
Supports no less than 12 independent channels per frequency point |
|
|
High reliability with a detection probability exceeding 95% |
|
Applications |
|
|
This intelligent equipment is widely used for security in public safety, military operations, civil airports, nuclear power plants, power grids, and prisons, offering high sensitivity and multi-angle monitoring to effectively prevent navigation spoofing attacks in sensitive areas. |
|
