OG5A017-18-20
Miniaturized and lightweight
High product consistency and high reliability
Customizable
Suitable for aviation, aerospace, radar, electronic countermeasure, microwave communication, and microwave testing fields
- Description
- Datasheet

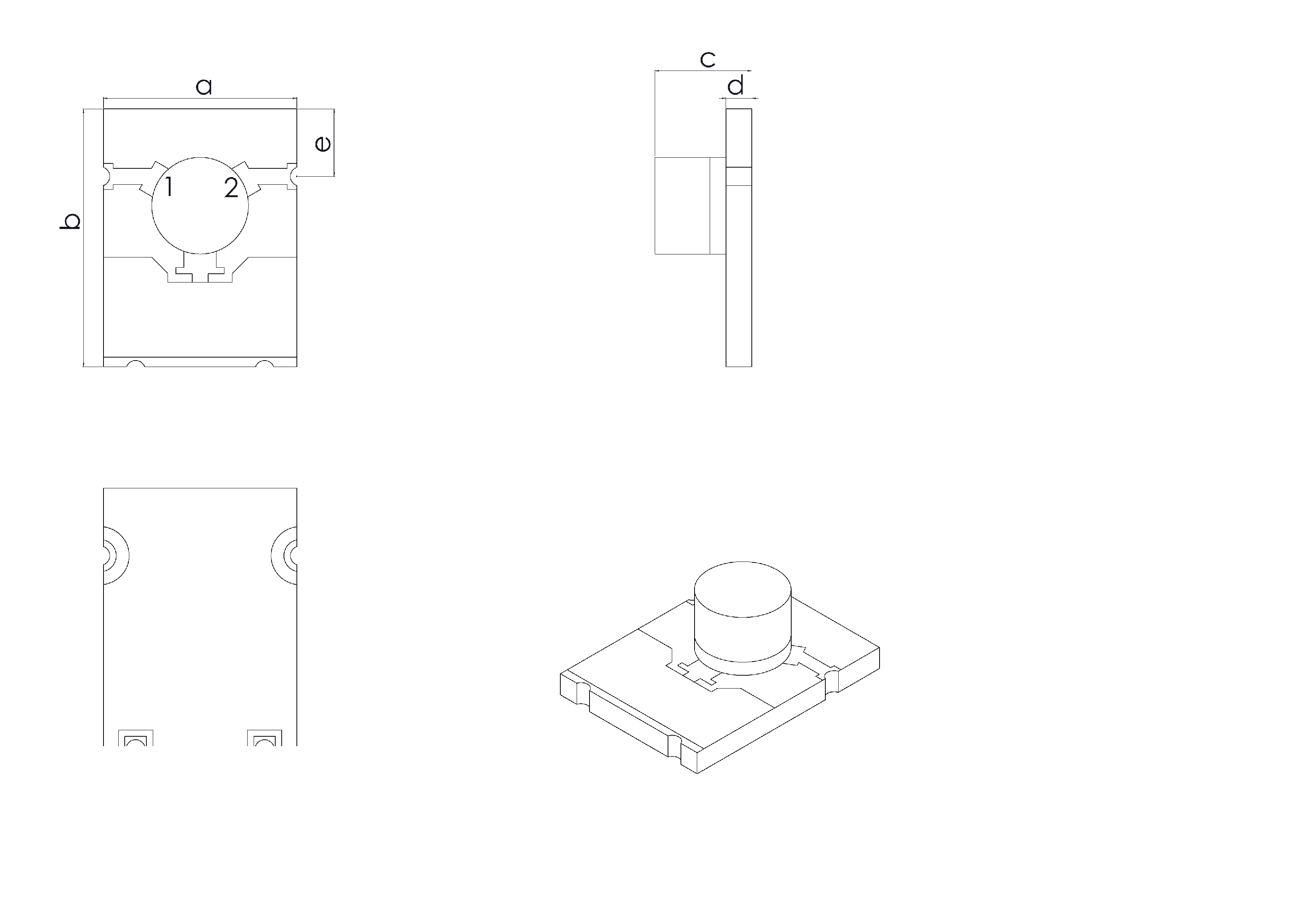

- Outline
- Reviews (0)
Description

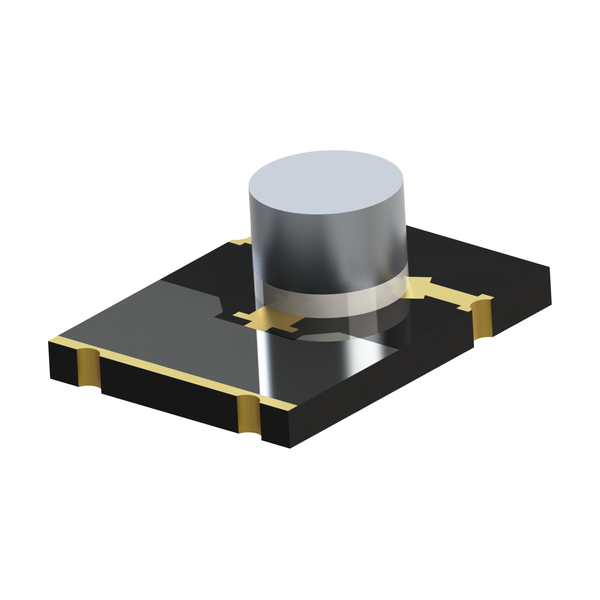

The product named OG5A017 is high-performancemicrostrip surface-mount isolator that plays a role inimpedance matching and decoupling in integratedcircuits, while providing unidirectional transmissionand signal processing functions. Its productionprocess is straightforward and well-suited formicrowave hybrid integrated circuits.
OG5A017-18-20 |
|
|
OG5A017-18-20 |
|
Property |
Value |
|
Frequency (MHz) |
18-20 |
|
Bandwidth |
– |
|
Return Loss (dB) |
0.7 |
|
Isolation (dB) |
18 |
|
Insertion Loss (dB) |
1.3 |
|
VSWR |
– |
|
IMD3 (dBc) |
10 |
|
Power (W) |
3 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
N |
|
Impedance |
– |
|
Size |
– |
|
Operating Temp (degC) |
4.6 to 6.5 |
|
Structure |
microstrip |
Features |
|
|
Miniaturized and lightweight |
|
|
High product consistency and high reliability |
|
|
Customizable |
|
|
Suitable for aviation, aerospace, radar, electronic countermeasure, microwave communication, and microwave testing fields |
|
Applications |
|
