OG5A054-5.3-7.5
Miniaturization and light weight
High product consistency and high reliability
Customizable
Suitable for aviation, aerospace, radar, and electronic countermeasures
Applicable for microwave communications and microwave testing fields
- Description
- Datasheet
- Outline
- Reviews (0)
Description

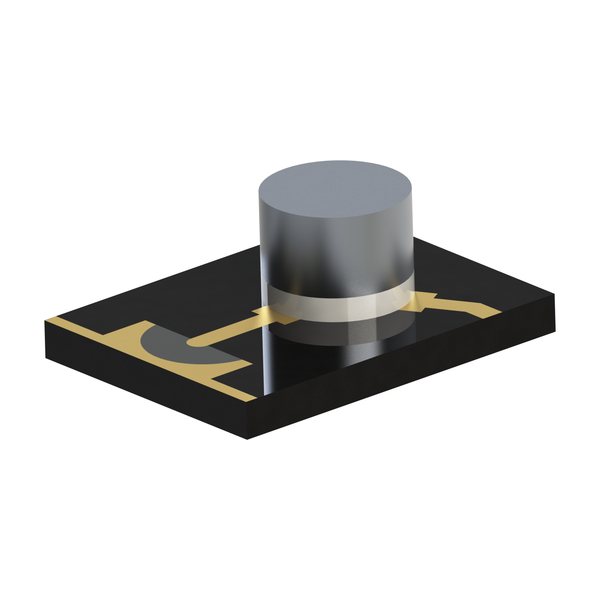

The product named OG5A054 is high-performancemicrostrip isolator. These microstrip isolators areused for impedance matching and decoupling inintegrated circuits, facilitating unidirectionaltransmission and signal processing, ideal formicrowave integrated circuits.
OG5A054-5.3-7.5 |
|
|
OG5A054-5.3-7.5 |
|
Property |
Value |
|
Frequency (MHz) |
5300-7500 |
|
Bandwidth |
– |
|
Return Loss (dB) |
1.45 |
|
Isolation (dB) |
15 |
|
Insertion Loss (dB) |
0.7 |
|
VSWR |
– |
|
IMD3 (dBc) |
15 |
|
Power (W) |
15 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |

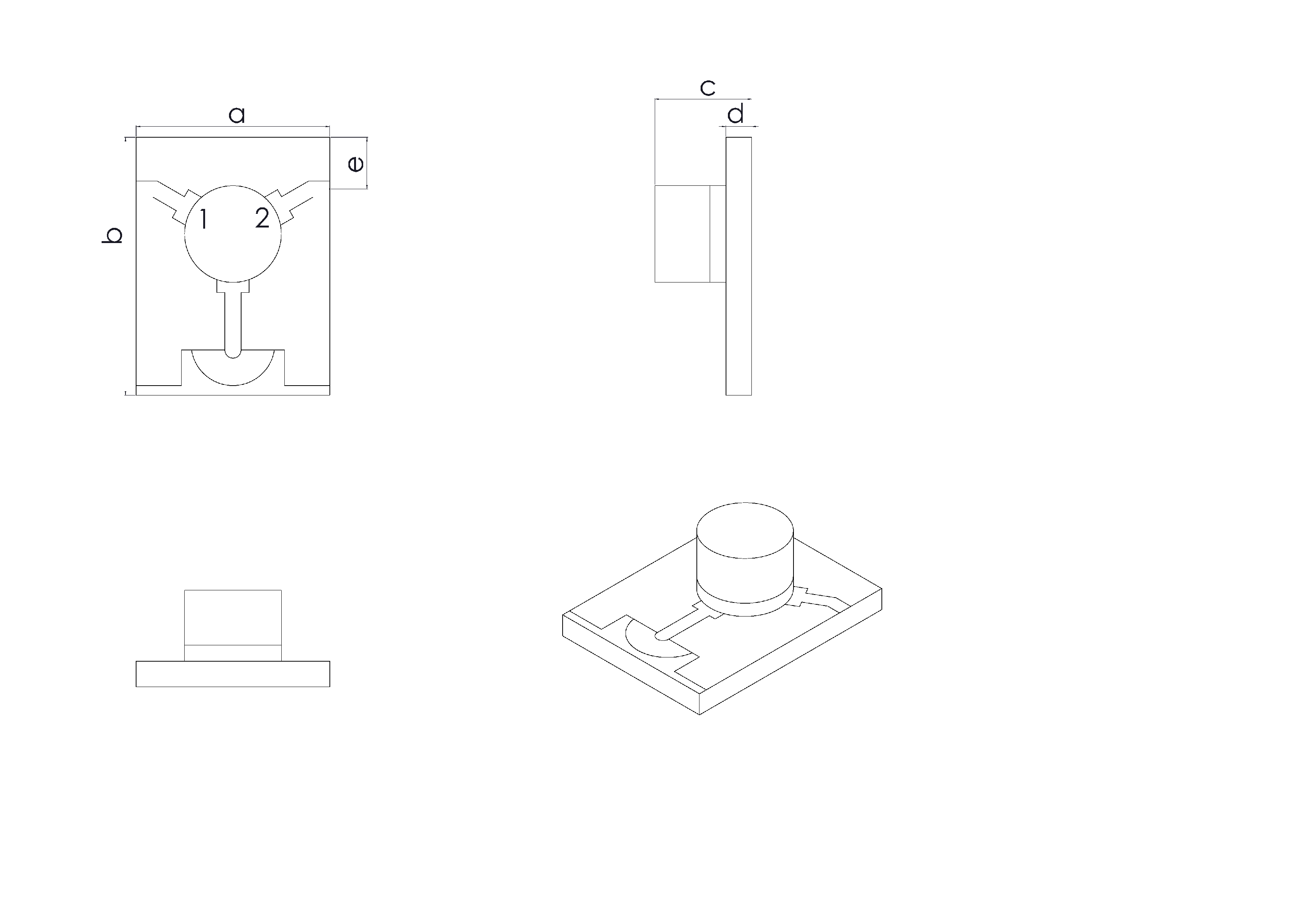

a=9.0, b=11.0, c=4.0, d=0.8, e=2.5 |
|
Operating Temp (degC) |
-55 to +85 |
|
Structure |
microstrip |
Features |
|
|
Miniaturization and light weight |
|
|
High product consistency and high reliability |
|
|
Customizable |
|
|
Suitable for aviation, aerospace, radar, and electronic countermeasures |
|
|
Applicable for microwave communications and microwave testing fields |
|
Applications |
|
