OH103C-3400-3800
Stripline design
Surface mount package
High power handling up to 100W
Excellent isolation and return loss
Wide operating temperature range
- Description
- Datasheet
- Outline
- Reviews (0)
Description

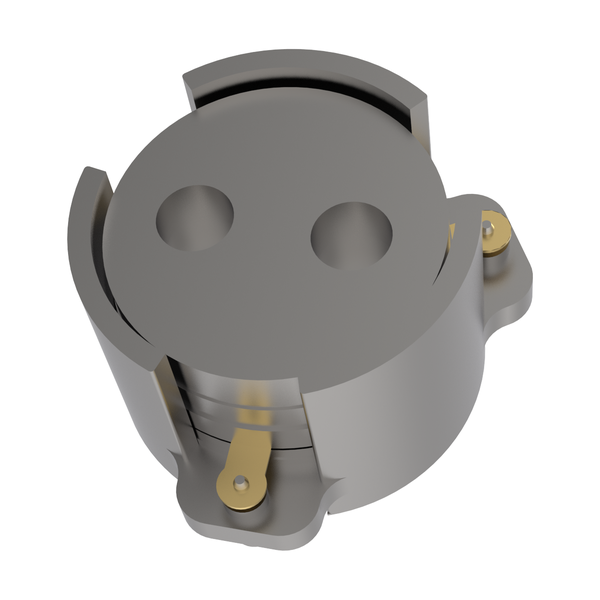

The product named OH103C is high-performancestripline surface mount circulator designed forhigh-power communication systems, offering lowinsertion loss and high isolation across multiplefrequency bands.
OH103C-3400-3800 |
|
|
OH103C-3400-3800 |
|
Property |
Value |
|
Frequency (MHz) |
3400-3800 |
|
Bandwidth |
– |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
VSWR |
– |
|
IMD3 (dBc) |
-60 2*10W |
|
Power (W) |
100 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
2*10W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
12.5mm |
|
Operating Temp (degC) |
-40 to 105 |
|
Structure |
surface-mount |
Features |
|
|
Stripline design |
|
|
Surface mount package |
|
|
High power handling up to 100W |
|
|
Excellent isolation and return loss |
|
|
Wide operating temperature range |
|
Applications |
|
|
forhigh-power communication systems, offering low insertion loss and high isolation across multiple frequency bands. |
|
