OH103E-3400-3800
Surface Mount Package
Broad Frequency Coverage
Low Insertion Loss
High Isolation
High Power Handling
- Description
- Datasheet

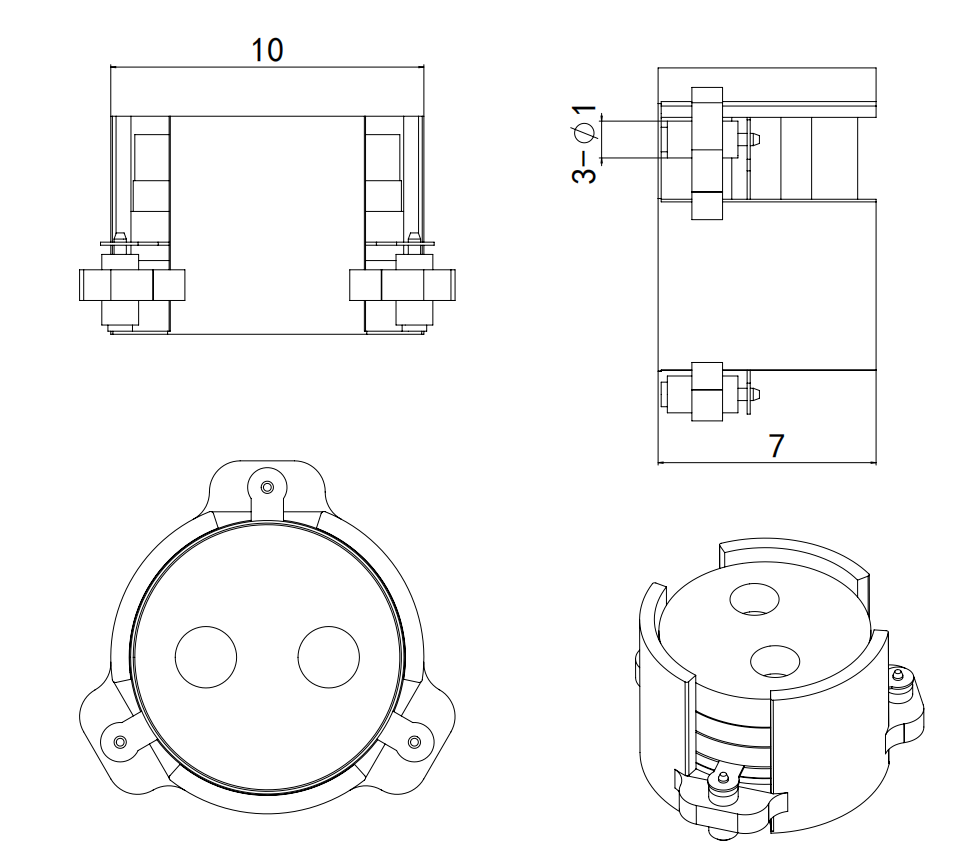

- Outline
- Reviews (0)
Description

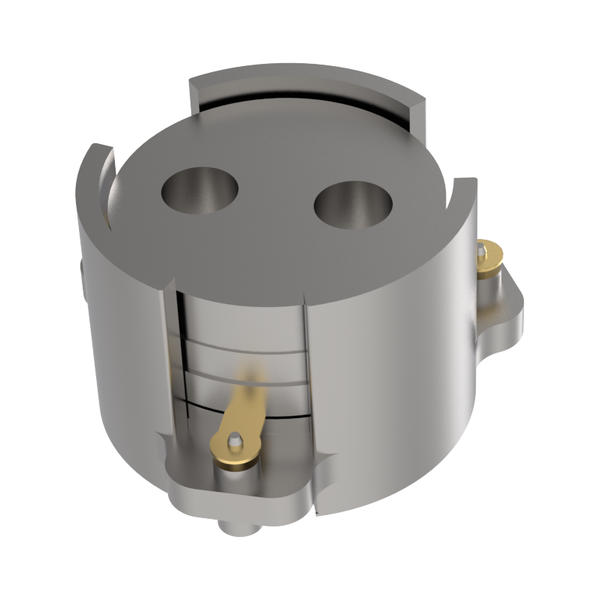

The product named OH103E-3400-3800 is high-performance stripline surface mount circulatordesigned for telecommunications and RFapplications.
OH103E-3400-3800 |
|
|
OH103E-3400-3800 |
|
Property |
Value |
|
Frequency (MHz) |
3400-3800 |
|
Bandwidth |
– |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
VSWR |
– |
|
IMD3 (dBc) |
-60 2*5W |
|
Power (W) |
70 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
2*5W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
10mm |
|
Operating Temp (degC) |
-40 to 105 |
|
Structure |
surface-mount |
Features |
|
|
Surface Mount Package |
|
|
Broad Frequency Coverage |
|
|
Low Insertion Loss |
|
|
High Isolation |
|
|
High Power Handling |
|
Applications |
|
|
designed for telecommunications and RFapplications. |
|
