OH107C-2496-2690
High isolation
Low insertion loss
Compact surface mount package
Wide operating temperature range
Excellent power handling capabilities
- Description
- Datasheet

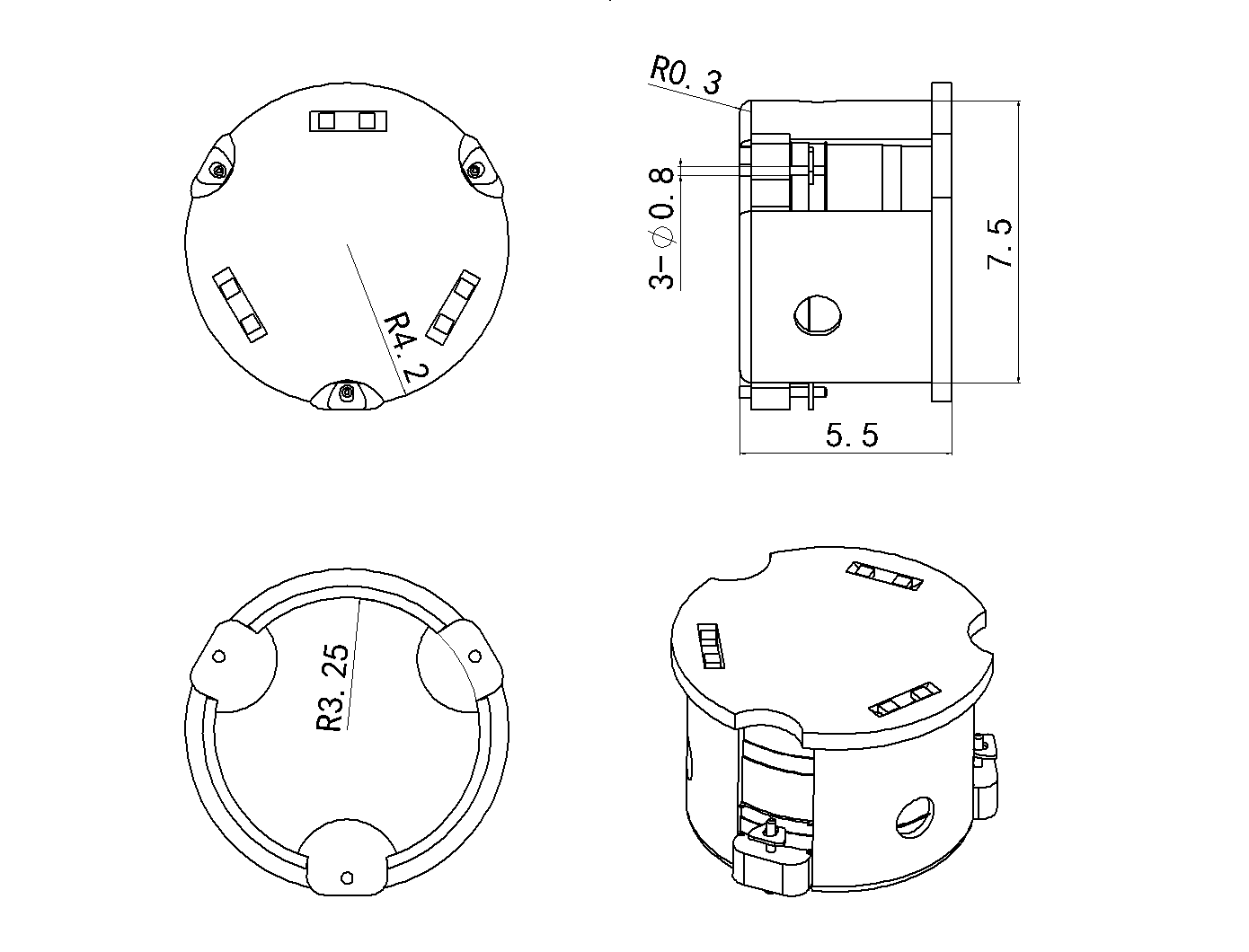

- Outline
- Reviews (0)
Description

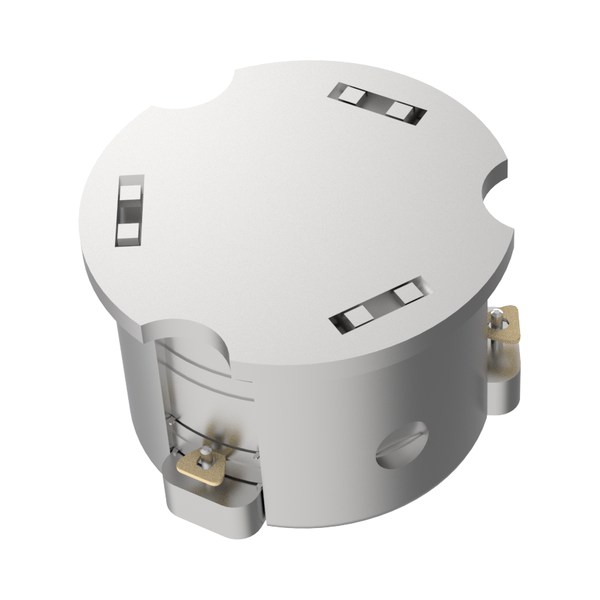

The product named OH107C-2496-2690 is high-performance stripline surface mount circulatordesigned for high-reliability telecommunicationapplications.
OH107C-2496-2690 |
|
|
OH107C-2496-2690 |
|
Property |
Value |
|
Frequency (MHz) |
2496-2690 |
|
Bandwidth |
– |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
VSWR |
– |
|
IMD3 (dBc) |
-60 2*5W |
|
Power (W) |
20 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
2*5W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
7mm |
|
Operating Temp (degC) |
-40 to 105 |
|
Structure |
surface-mount |
Features |
|
|
High isolation |
|
|
Low insertion loss |
|
|
Compact surface mount package |
|
|
Wide operating temperature range |
|
|
Excellent power handling capabilities |
|
Applications |
|
|
designed for high-reliability telecommunicationapplications |
|
