OH120A-3300-3600
Stripline design
Surface mount package
Wide frequency coverage
Low insertion loss
High isolation
Excellent IMD3 performance
- Description
- Datasheet

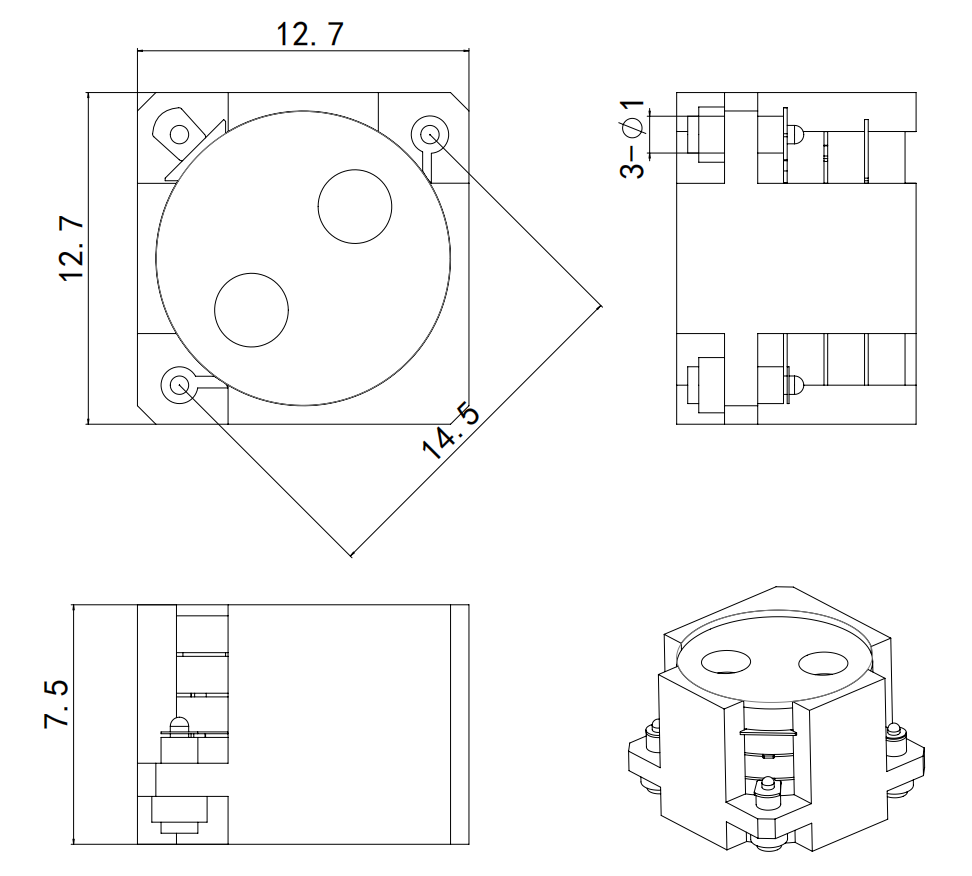

- Outline
- Reviews (0)
Description

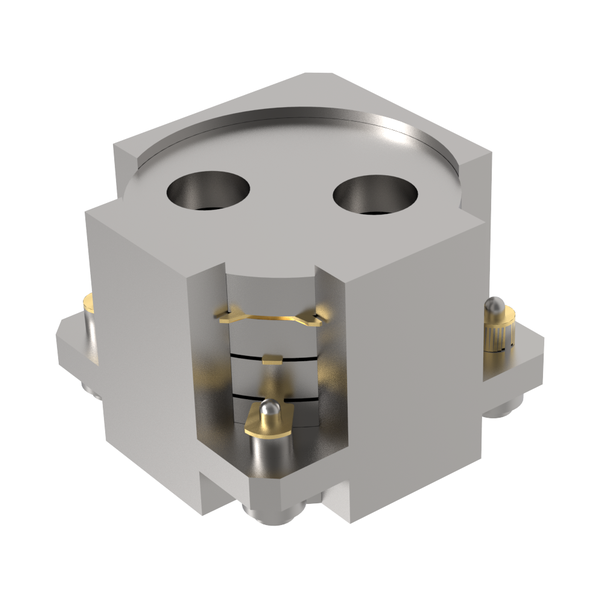

The product named OH120A-3300-3600 is high-performance stripline surface mount circulatordesigned for telecommunication applicationsrequiring a compact form factor and excellentelectrical performance.
OH120A-3300-3600 |
|
|
OH120A-3300-3600 |
|
Property |
Value |
|
Frequency (MHz) |
3300-3600 |
|
Bandwidth |
– |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
-65 2*10W |
|
Power (W) |
100 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
2*10W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
12.7mm |
|
Operating Temp (degC) |
-40 to 125 |
|
Structure |
surface-mount |
Features |
|
|
Stripline design |
|
|
Surface mount package |
|
|
Wide frequency coverage |
|
|
Low insertion loss |
|
|
High isolation |
|
|
Excellent IMD3 performance |
|
