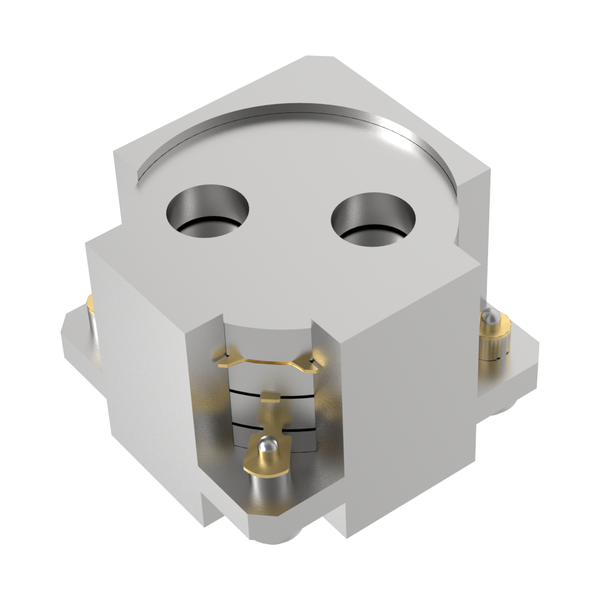

OH121A-4600-5000
Stripline technology
Surface mount package
Wide frequency range coverage
High isolation
Low insertion loss
High power handling up to 50W
Wide operating temperature range (-40degC to +125degC)
- Description
- Datasheet

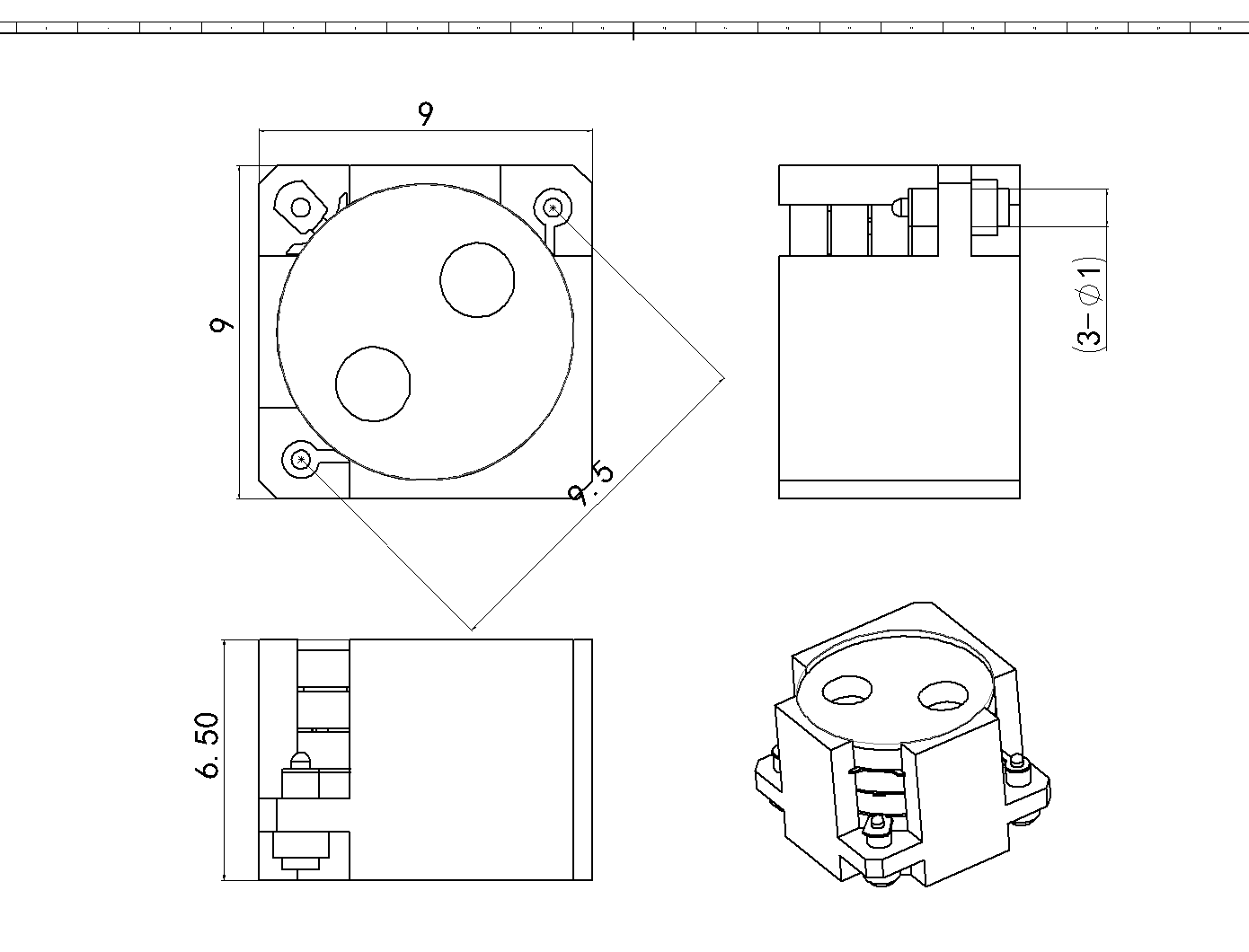

- Outline
- Reviews (0)
Description
The product named OH121A-4600-5000 is high-performance surface mount circulator designed for stripline applications, offering excellent isolationand low insertion loss across its operatingfrequency range.
OH121A-4600-5000 |
|
|
OH121A-4600-5000 |
|
Property |
Value |
|
Frequency (MHz) |
4600-5000 |
|
Bandwidth |
– |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.33 |
|
VSWR |
– |
|
IMD3 (dBc) |
-60 2*5W |
|
Power (W) |
50 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
2*5W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
9mm |
|
Operating Temp (degC) |
-40 to 125 |
|
Structure |
surface-mount |
Features |
|
|
Stripline technology |
|
|
Surface mount package |
|
|
Wide frequency range coverage |
|
|
High isolation |
|
|
Low insertion loss |
|
|
High power handling up to 50W |
|
|
Wide operating temperature range (-40degC to +125degC) |
|
Applications |
|
|
designed for stripline applications |
|
