OH2A055
Applied to quantum communication, deep space communication, physics research, satellite communication and other fields
Stable performance at low temperature environments of -197 degC, -266 degC, -270 degC
- Description
- Datasheet

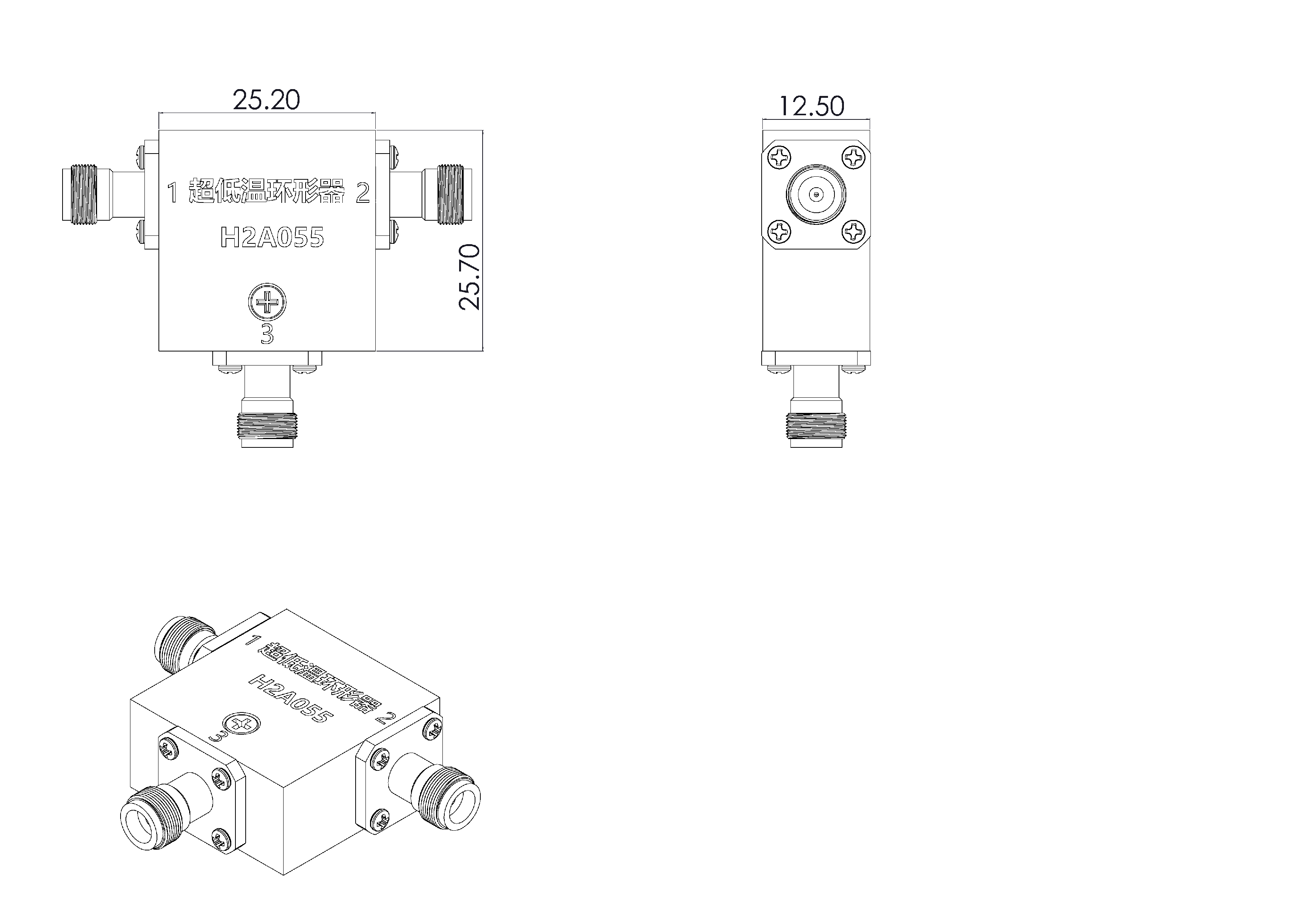

- Outline
- Reviews (0)
Description

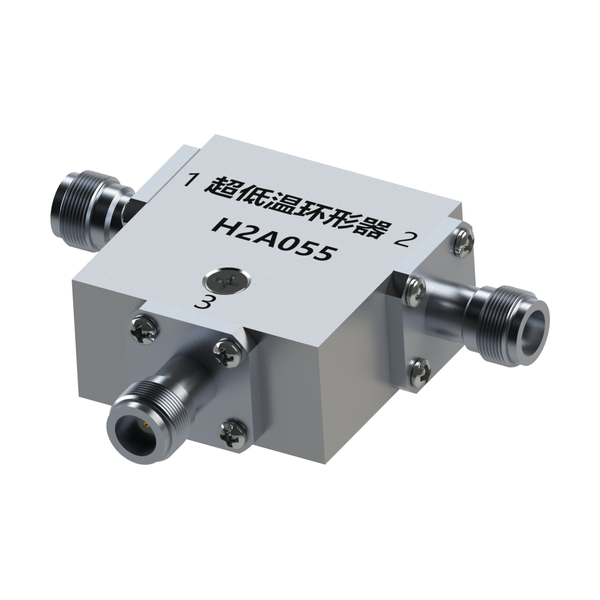

The product named OH2A055 is high-performance cryogenic circulator. It is designed for applications in quantum communication, deepspacecommunication, physics research, and satellitecommunications, maintaining stable performanceand low insertion loss at extreme temperatures of-197degC, -266degC, and -270degC.
OH2A055 |
|
|
OH2A055 |
|
Property |
Value |
|
Frequency (MHz) |
4000-8000 |
|
Bandwidth |
– |
|
Return Loss (dB) |
– |
|
Isolation (dB) |
0.3 |
|
Insertion Loss (dB) |
18 |
|
VSWR |
1.28 |
|
IMD3 (dBc) |
1.28 |
|
Power (W) |
15 |
|
Reverse Power (W) |
15 |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
SMA-K |
|
Impedance |
– |
|
Size |
– |
|
Operating Temp (degC) |
15.0 to 25 |
|
Structure |
– |
Features |
|
|
Applied to quantum communication, deep space communication, physics research, satellite communication and other fields |
|
|
Stable performance at low temperature environments of -197 degC, -266 degC, -270 degC |
|
Applications |
|
