OH532-2110-2170
Embedded stripline design
High isolation up to 23dB
Low insertion loss as low as 0.25dB
High power handling capacity
Wide operating temperature range from -40 to +85 degC
Excellent IMD3 performance
- Description
- Datasheet

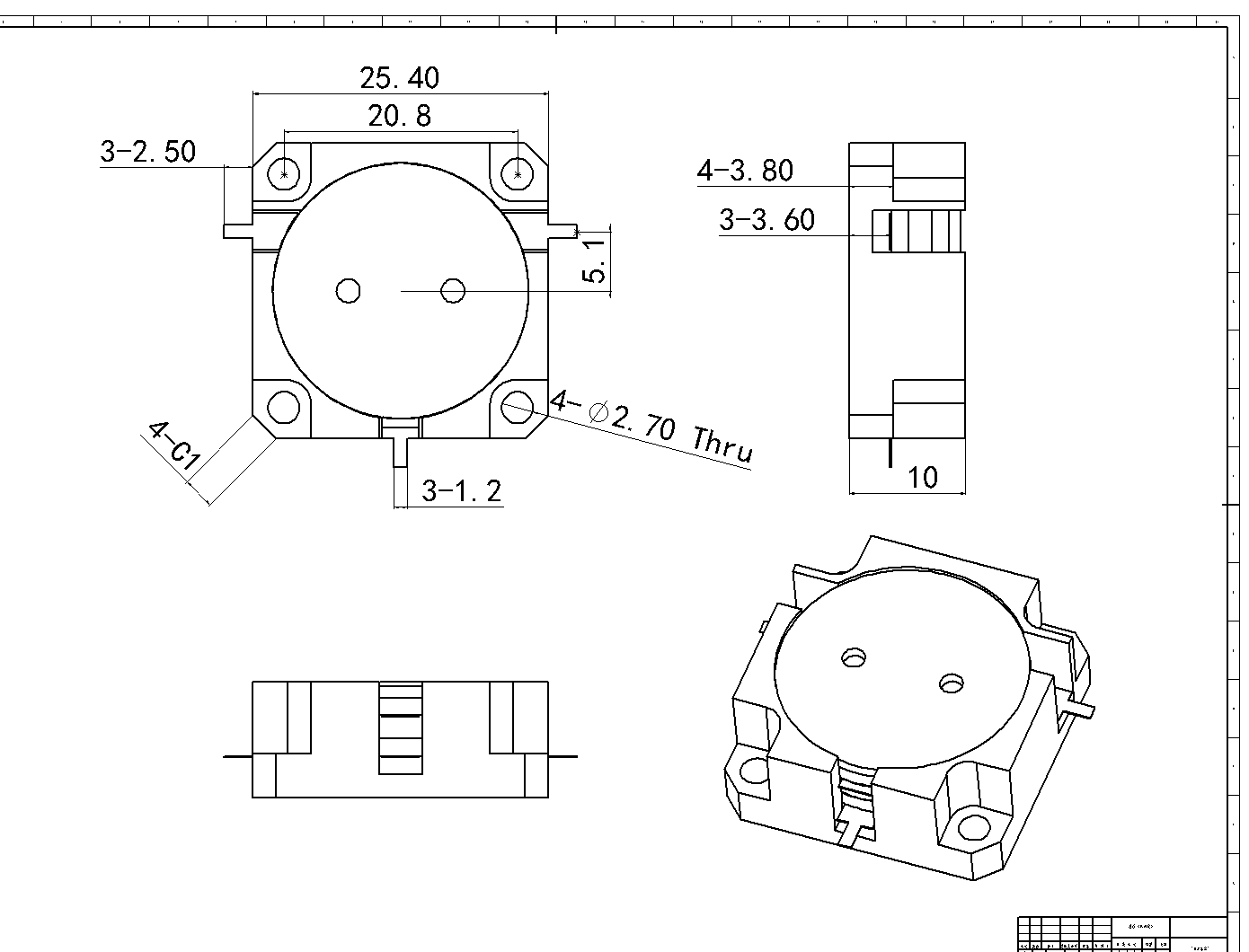

- Outline
- Reviews (0)
Description

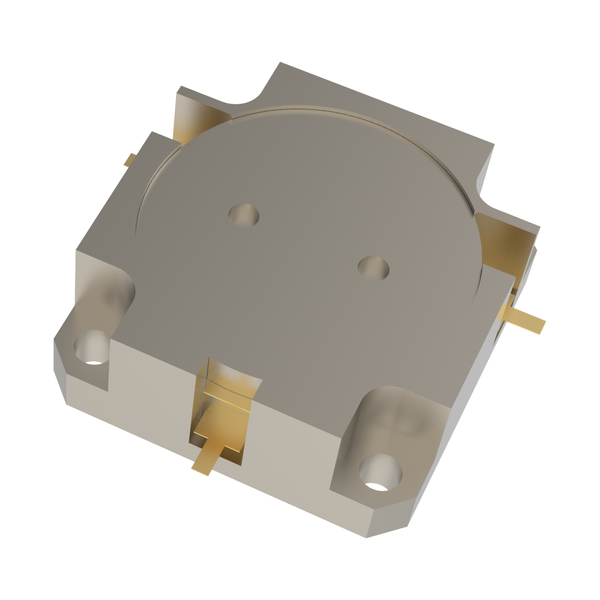

The product named OH532 is high-performance embedded circulator designed for striplineapplications, offering excellent isolation and lowinsertion loss across its operating frequency range.
OH532-2110-2170 |
|
|
OH532-2110-2170 |
|
Property |
Value |
|
Frequency (MHz) |
2110-2170 |
|
Bandwidth |
– |
|
Return Loss (dB) |
23 |
|
Isolation (dB) |
23 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
2005 |
|
Power (W) |
-1 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
1.0inch |
|
Operating Temp (degC) |
-40 to 85 |
|
Structure |
stripline |
Features |
|
|
Embedded stripline design |
|
|
High isolation up to 23dB |
|
|
Low insertion loss as low as 0.25dB |
|
|
High power handling capacity |
|
|
Wide operating temperature range from -40 to +85 degC |
|
|
Excellent IMD3 performance |
|
Applications |
|
|
designed for strip line applications |
|
