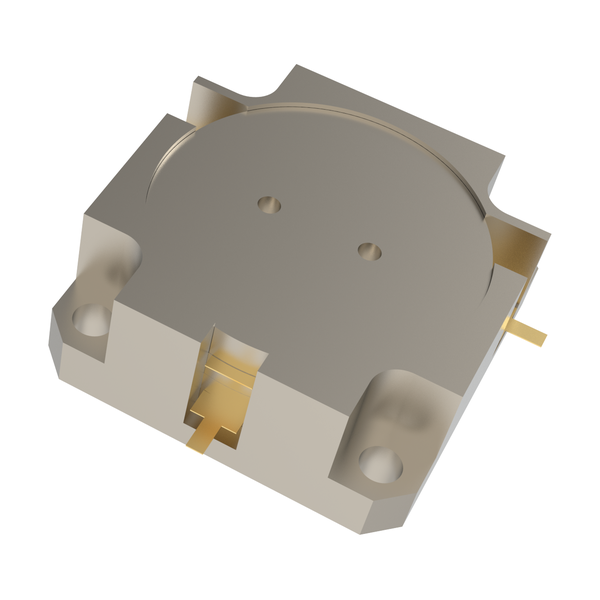

OH544-223-235
Embedded Stripline Design
High Isolation (20dB)
Low Insertion Loss (0.40dB)
High Power Handling (300W)
Wide Operating Temperature Range (-40 to 85degC)
- Description
- Datasheet

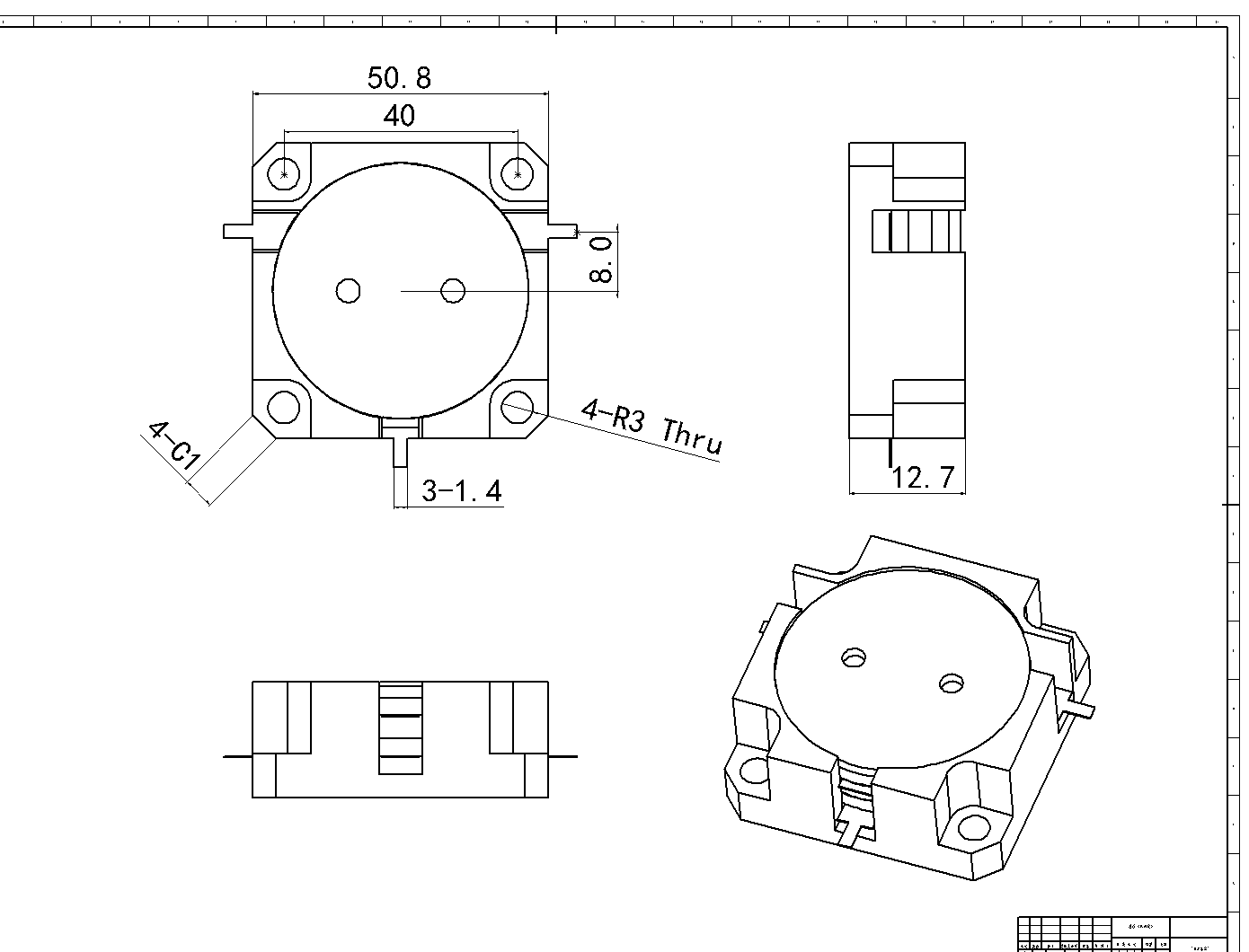

- Outline
- Reviews (0)
Description
The product named OH544-223-235 is high-performance Stripline Embedded Circulatordesigned for the 223-235 MHz frequency range,offering excellent technical characteristics such aslow insertion loss and high isolation for high-powerapplications.
OH544-223-235 |
|
|
OH544-223-235 |
|
Property |
Value |
|
Frequency (MHz) |
223-235 |
|
Bandwidth |
– |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.4 |
|
VSWR |
– |
|
IMD3 (dBc) |
-65 2*50W |
|
Power (W) |
300 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
2*50W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
2inch |
|
Operating Temp (degC) |
-40 to 85 |
|
Structure |
stripline |
Features |
|
|
Embedded Stripline Design |
|
|
High Isolation (20dB) |
|
|
Low Insertion Loss (0.40dB) |
|
|
High Power Handling (300W) |
|
|
Wide Operating Temperature Range (-40 to 85degC) |
|
Applications |
|
|
designed for telecommunications applications |
|
