OH5A088-18500-20000
Small size
Light weight
High consistency
High reliability
Customizable
Suitable for aviation and aerospace
Suitable for radar and electronic countermeasures
Suitable for microwave communications
Suitable for microwave testing
- Description
- Datasheet

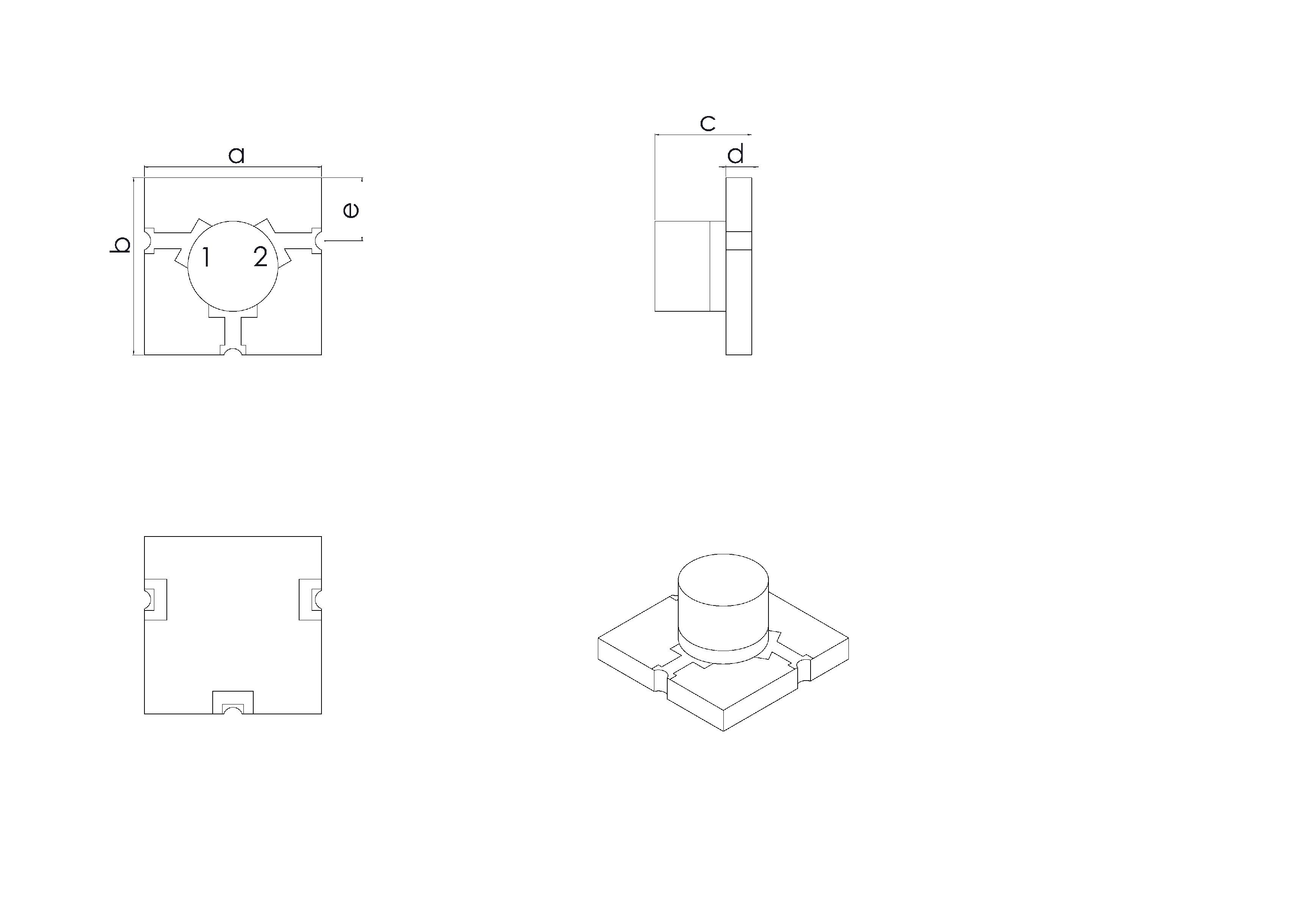

- Outline
- Reviews (0)
Description

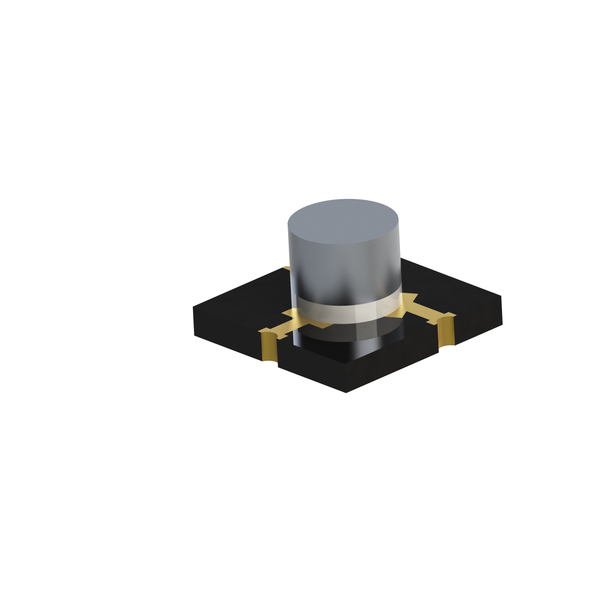

The product named OH5A088 is high-performance,small size, light weight, and features highconsistency and reliability. This circulator formicrostrip patch antenna is customizable andsuitable for aviation, aerospace, radar, electronic counter measures, microwave communications, and microwave testing fields. It serves functions such asimpedance matching, decoupling, unidirectionaltransmission, and signal processing in integratedcircuits.
OH5A088-18500-20000 |
|
|
OH5A088-18500-20000 |
|
Property |
Value |
|
Frequency (MHz) |
18500-20000 |
|
Bandwidth |
– |
|
Return Loss (dB) |
0.7 |
|
Isolation (dB) |
18 |
|
Insertion Loss (dB) |
1.3 |
|
VSWR |
– |
|
IMD3 (dBc) |
10 |
|
Power (W) |
-55 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
4.0×4.0x3.0 |
|
Operating Temp (degC) |
85 |
|
Structure |
microstrip patch antenna |
Features |
|
|
Small size |
|
|
Light weight |
|
|
High consistency |
|
|
High reliability |
|
|
Customizable |
|
|
Suitable for aviation and aerospace |
|
|
Suitable for radar and electronic countermeasures |
|
|
Suitable for microwave communications |
|
|
Suitable for microwave testing |
|
Applications |
|
