OH6A037-55-65
Coaxial integrated design
Frequency range: 55-65 MHz
Low insertion loss of 1.0 dB
High isolation performance
Clockwise signal direction
- Description
- Datasheet

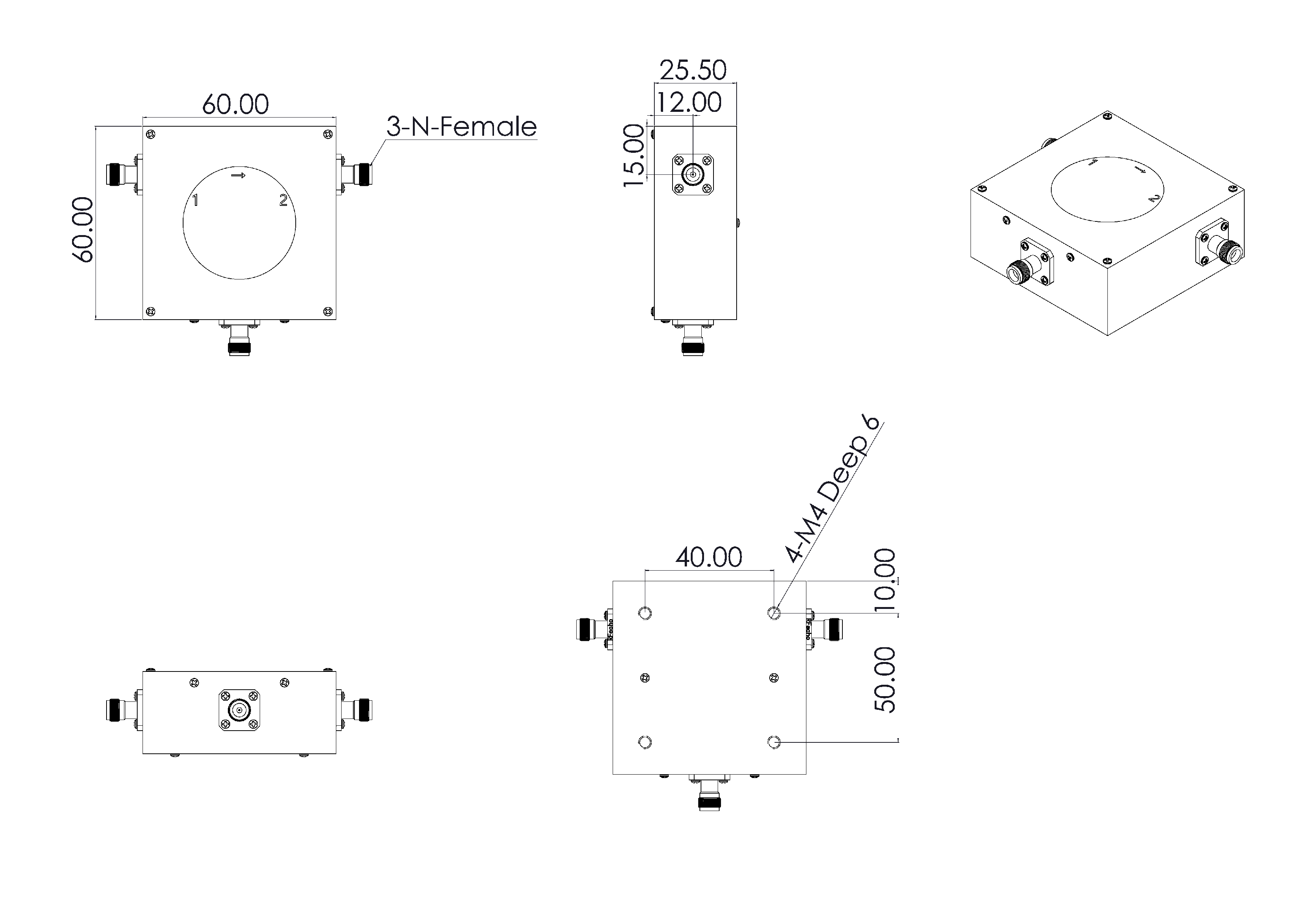

- Outline
- Reviews (0)
Description
The product named OH6A037 is high-performancecoaxial integrated ring circulator, optimized for the 55-65 MHz frequency band with superior powerhandling and signal integrity for integrated RFsystems.
OH6A037-55-65 |
|
|
OH6A037-55-65 |
|
Property |
Value |
|
Frequency (MHz) |
55-65 |
|
Bandwidth |
– |
|
Return Loss (dB) |
18 |
|
Isolation (dB) |
16 |
|
Insertion Loss (dB) |
1 |
|
VSWR |
– |
|
IMD3 (dBc) |
20 |
|
Power (W) |
50 |
|
Reverse Power (W) |
20 |
|
Peak Power |
20 |
|
Power note |
CW |
|
Connector |
– |
|
Impedance |
– |
|
Size |
– |
|
Operating Temp (degC) |
– |
|
Structure |
coaxial |
Features |
|
|
Coaxial integrated design |
|
|
Frequency range: 55-65 MHz |
|
|
Low insertion loss of 1.0 dB |
|
|
High isolation performance |
|
|
Clockwise signal direction |
|
Applications |
|
