OH6A038-40-42
Coaxial integrated design
Frequency range: 40-42 MHz
High isolation of 16 dB
N-Female connector interface
CW direction operation
- Description
- Datasheet

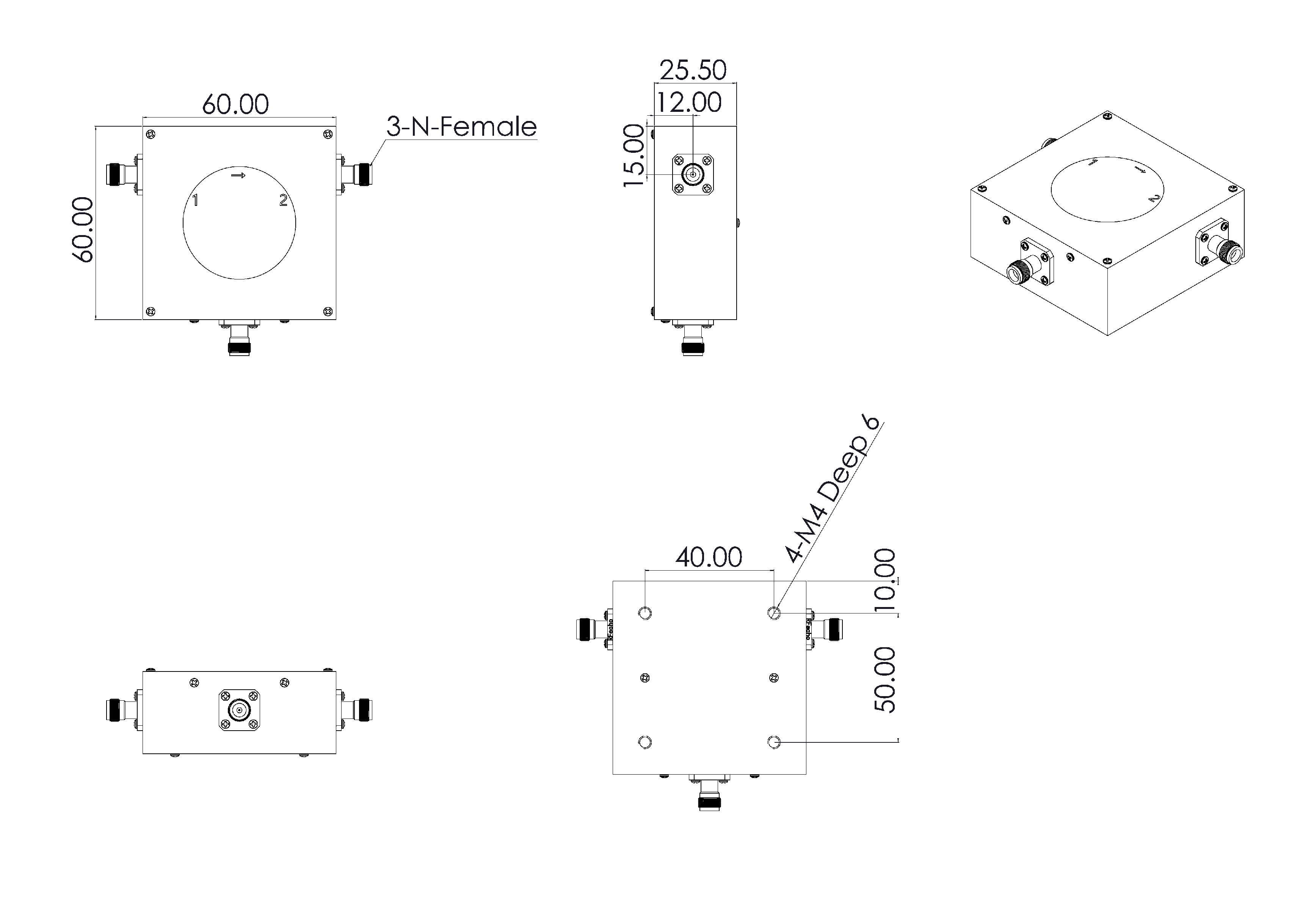

- Outline
- Reviews (0)
Description

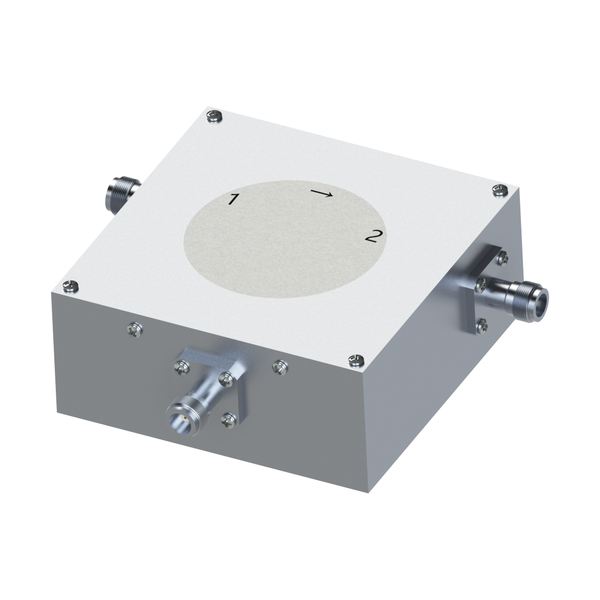

The product named OH6A038 is high-performancecoaxial integrated ring circulator designed forlow-frequency RF applications, providing robustsignal isolation and low insertion loss in a compactpackage.
OH6A038-40-42 |
|
|
OH6A038-40-42 |
|
Property |
Value |
|
Frequency (MHz) |
40-42 |
|
Bandwidth |
– |
|
Return Loss (dB) |
18 |
|
Isolation (dB) |
16 |
|
Insertion Loss (dB) |
1.5 |
|
VSWR |
– |
|
IMD3 (dBc) |
20 |
|
Power (W) |
50 |
|
Reverse Power (W) |
20 |
|
Peak Power |
20 |
|
Power note |
CW |
|
Connector |
N |
|
Impedance |
– |
|
Size |
– |
|
Operating Temp (degC) |
– |
|
Structure |
coaxial |
Features |
|
|
Coaxial integrated design |
|
|
Frequency range: 40-42 MHz |
|
|
High isolation of 16 dB |
|
|
N-Female connector interface |
|
|
CW direction operation |
|
Applications |
|
