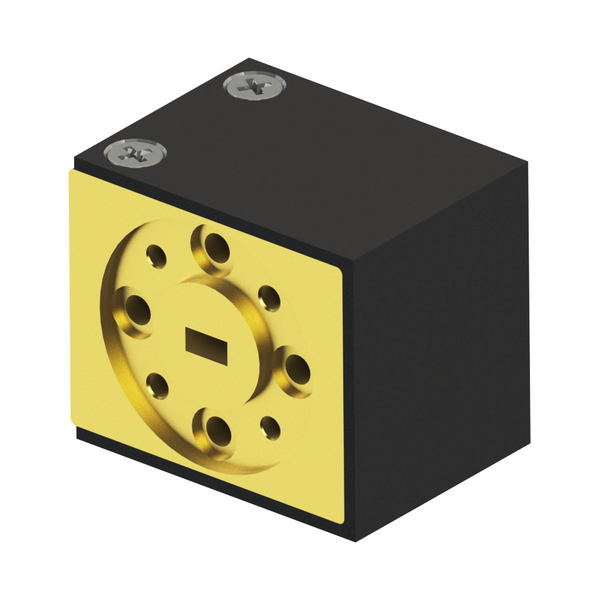

OHTD101-109-101-109

OHTD101-109-101-109

OHTD101-109-101-109

Property

Value

Frequency (MHz)

101-109

Bandwidth

–

Return Loss (dB)

15

Isolation (dB)

15

Insertion Loss (dB)

1

VSWR

–

IMD3 (dBc)

15

Power (W)

3

Reverse Power (W)

1

Peak Power

–

Power note

–

Connector

–

Impedance

–

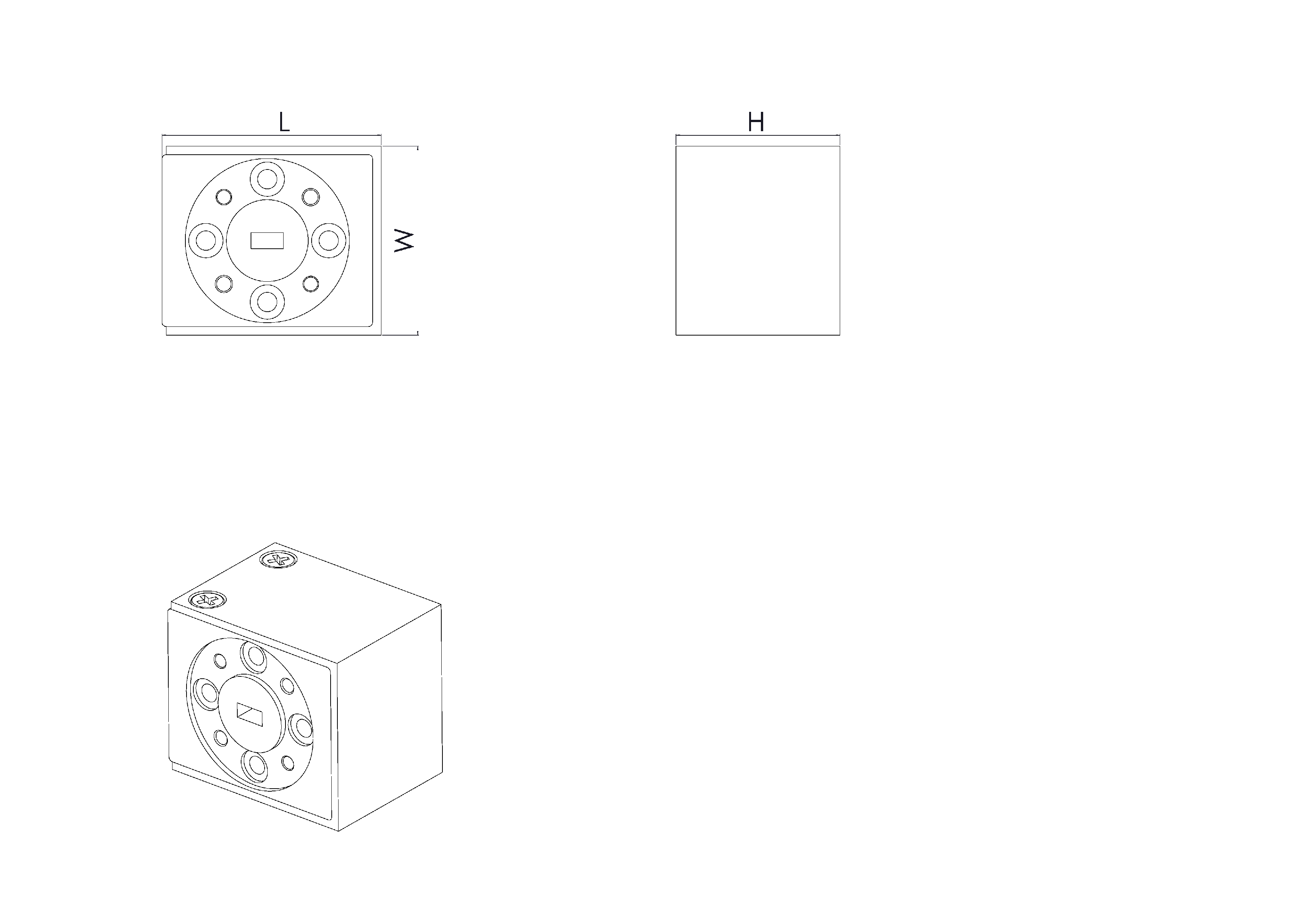

Size

–

Operating Temp (degC)

-40 to +80

Structure

waveguide

Features

Available bandwidths: 10%, 20%, 30%, 40%, and octave

Peak power range: 1W to 40MW

Average power range: 1W to 100KW

Applications: Civil, military, aerospace, and space technology

Customizable specifications according to customer requirements

High performance and high reliability

Applications

for applications in civil, military, andaerospace sectors
