OHTD92-98-92-98
Available bandwidths: 10%, 20%, 30%, 40%, and octave
Peak power range: 1W to 40MW
Average power range: 1W to 100KW
Applications: Civil, military, aerospace, and space technology
Customizable specifications according to customer requirements
High performance and high reliability
- Description
- Datasheet
- Outline
- Reviews (0)
Description

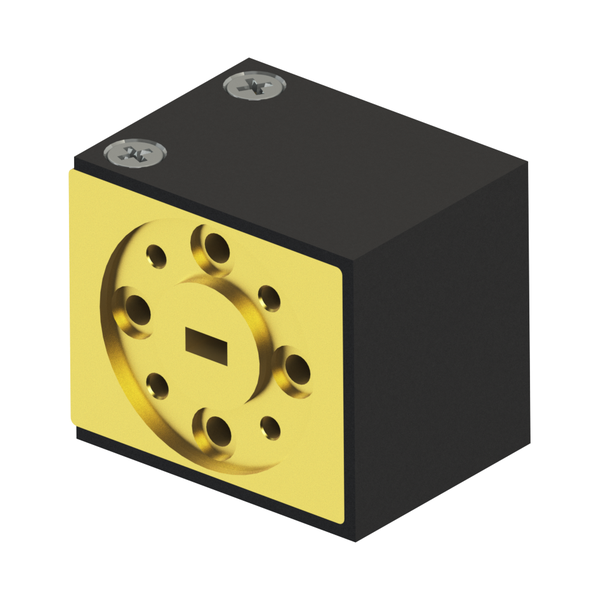

The product named OHTD92-98 is high-performanceA05 waveguide isolator & circulator, offering widefrequency coverage and high reliability forapplications in civil, military, and aerospace sectors.
OHTD92-98-92-98 |
|
|
OHTD92-98-92-98 |
|
Property |
Value |
|
Frequency (MHz) |
92-98 |
|
Bandwidth |
– |
|
Return Loss (dB) |
16 |
|
Isolation (dB) |
17 |
|
Insertion Loss (dB) |
1 |
|
VSWR |
– |
|
IMD3 (dBc) |
17 |
|
Power (W) |
3 |
|
Reverse Power (W) |
1 |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
– |
|
Operating Temp (degC) |
-40 to +80 |
|
Structure |
waveguide |
Features |
|
|
Available bandwidths: 10%, 20%, 30%, 40%, and octave |
|
|
Peak power range: 1W to 40MW |
|
|
Average power range: 1W to 100KW |
|
|
Applications: Civil, military, aerospace, and space technology |
|
|
Customizable specifications according to customer requirements |
|
|
High performance and high reliability |
|
Applications |
|
|
for applications in civil, military, andaerospace sectors |
|
