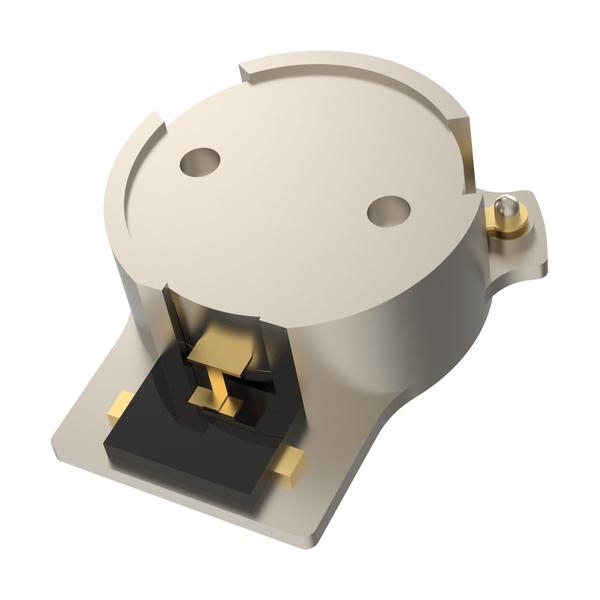

OHYG101B-925-960
Low Insertion Loss
High Isolation
High Power Handling
Compact Surface Mount Package
Wide Operating Temperature Range
- Description
- Datasheet

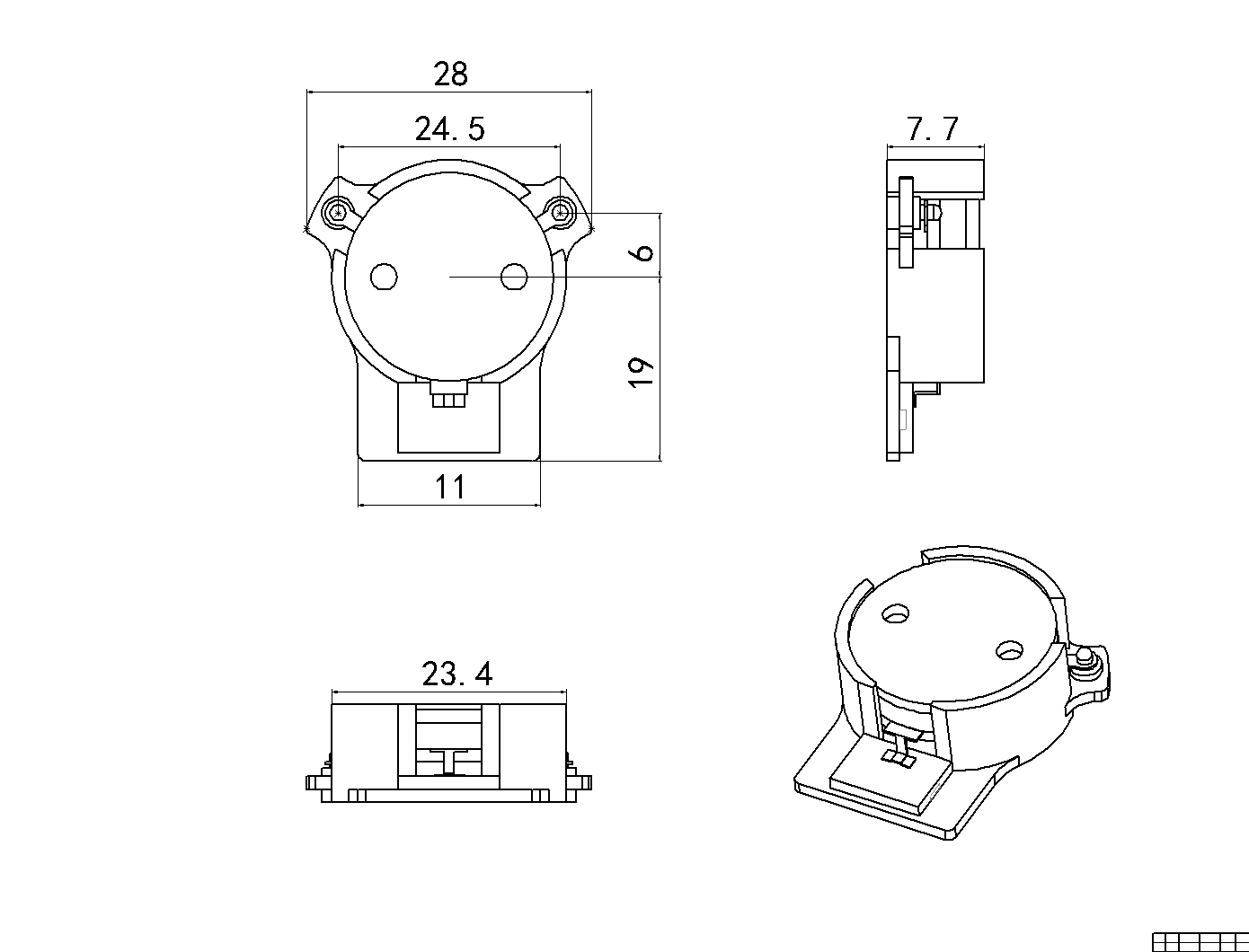

- Outline
- Reviews (0)
Description
The product named OHYG101B is high-performancestripline surface-mounted isolator designed forrobust operation in telecommunication systems. Itfeatures excellent isolation, low insertion loss, andhigh power handling capabilities over variousfrequency bands.
OHYG101B-925-960 |
|
|
OHYG101B-925-960 |
|
Property |
Value |
|
Frequency (MHz) |
5-960 |
|
Bandwidth |
– |
|
Return Loss (dB) |
22 |
|
Isolation (dB) |
22 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
-70 2*50W |
|
Power (W) |
200 |
|
Reverse Power (W) |
100 |
|
Peak Power |
– |
|
Power note |
2*50W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
23.4mm |
|
Operating Temp (degC) |
-40 to 120 |
|
Structure |
surface-mount |
Features |
|
|
Low Insertion Loss |
|
|
High Isolation |
|
|
High Power Handling |
|
|
Compact Surface Mount Package |
|
|
Wide Operating Temperature Range |
|
Applications |
|
|
Designed for robust operation in telecommunication systems |
|
