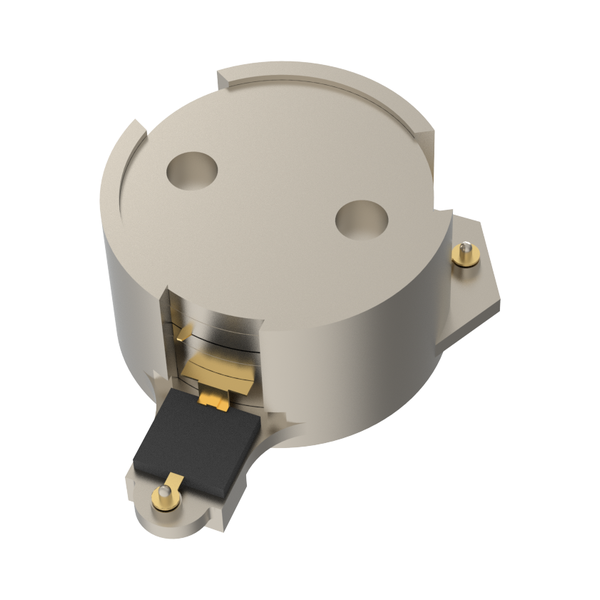

OHYG103B-2110-2170
Surface-mounted design for compact PCB integration
Low insertion loss of 0.25dB for signal integrity
High isolation and return loss of 22dB
Robust power handling up to 100W forward power
Superior IMD3 performance of -65 dBc
Wide operating temperature range from -40 to +105 degrees Celsius
- Description
- Datasheet

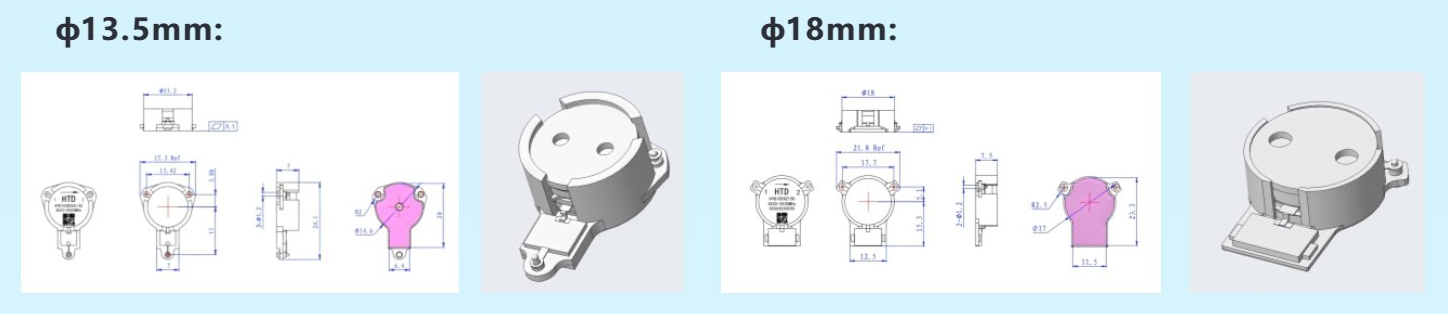

- Outline
- Reviews (0)
Description
The product named OHYG103B-2110-2170 is high-performance stripline surface-mounted isolatordesigned for robust signal control intelecommunication systems.
OHYG103B-2110-2170 |
|
|
OHYG103B-2110-2170 |
|
Property |
Value |
|
Frequency (MHz) |
2110-2170 |
|
Bandwidth |
– |
|
Return Loss (dB) |
22 |
|
Isolation (dB) |
22 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
-65 @ 2*20W |
|
Power (W) |
100 |
|
Reverse Power (W) |
30 |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
13.5mm |
|
Operating Temp (degC) |
-40 to 105 |
|
Structure |
surface-mount |
Features |
|
|
Surface-mounted design for compact PCB integration |
|
|
Low insertion loss of 0.25dB for signal integrity |
|
|
High isolation and return loss of 22dB |
|
|
Robust power handling up to 100W forward power |
|
|
Superior IMD3 performance of -65 dBc |
|
|
Wide operating temperature range from -40 to +105 degrees Celsius |
|
Applications |
|
|
Designed for robust signal control intelecommunication systems. |
|
