OHYG103B-925-960
Surface-mounted design for compact PCB integration
Low insertion loss of 0.30dB for signal integrity
High isolation and return loss of 20dB
Robust power handling up to 100W forward power
Wide operating temperature range from -40 to +105 degrees Celsius
- Description
- Datasheet
- Outline
- Reviews (0)
Description

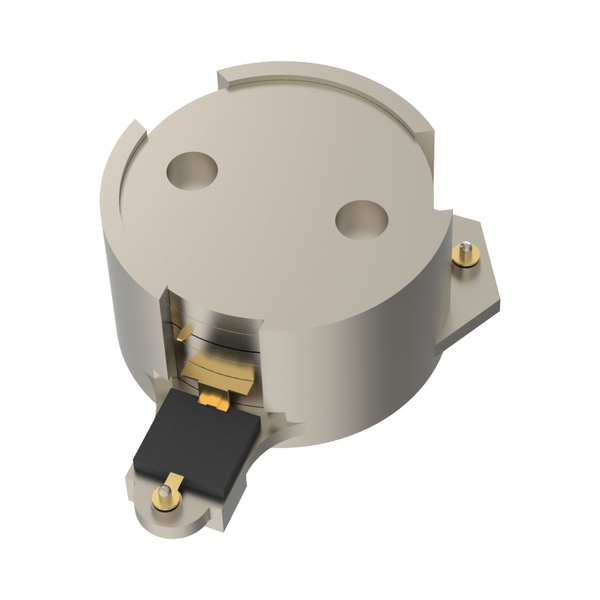

The product named OHYG103B-925-960 is high-performance stripline surface-mounted isolatordesigned for robust signal control intelecommunication systems.
OHYG103B-925-960 |
|
|
OHYG103B-925-960 |
|
Property |
Value |
|
Frequency (MHz) |
925-960 |
|
Bandwidth |
– |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
VSWR |
– |
|
IMD3 (dBc) |
-60 @ 2*20W |
|
Power (W) |
100 |
|
Reverse Power (W) |
30 |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
13.5mm |
|
Operating Temp (degC) |
-40 to 105 |
|
Structure |
surface-mount |
Features |
|
|
Surface-mounted design for compact PCB integration |
|
|
Low insertion loss of 0.30dB for signal integrity |
|
|
High isolation and return loss of 20dB |
|
|
Robust power handling up to 100W forward power |
|
|
Wide operating temperature range from -40 to +105 degrees Celsius |
|
Applications |
|
|
Designed for robust signal control intelecommunication systems. |
|
