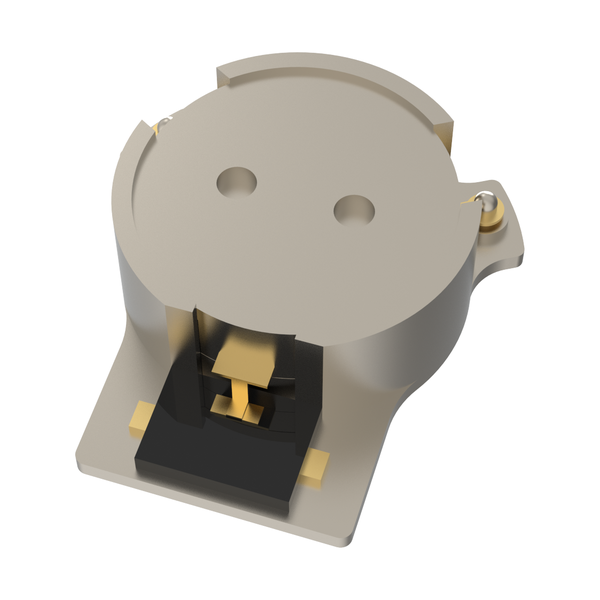

OHYG111B-2110-2180
Surface-mounted design
Stripline structure
Low insertion loss
High isolation
High power handling capacity
Wide operating temperature range
- Description
- Datasheet

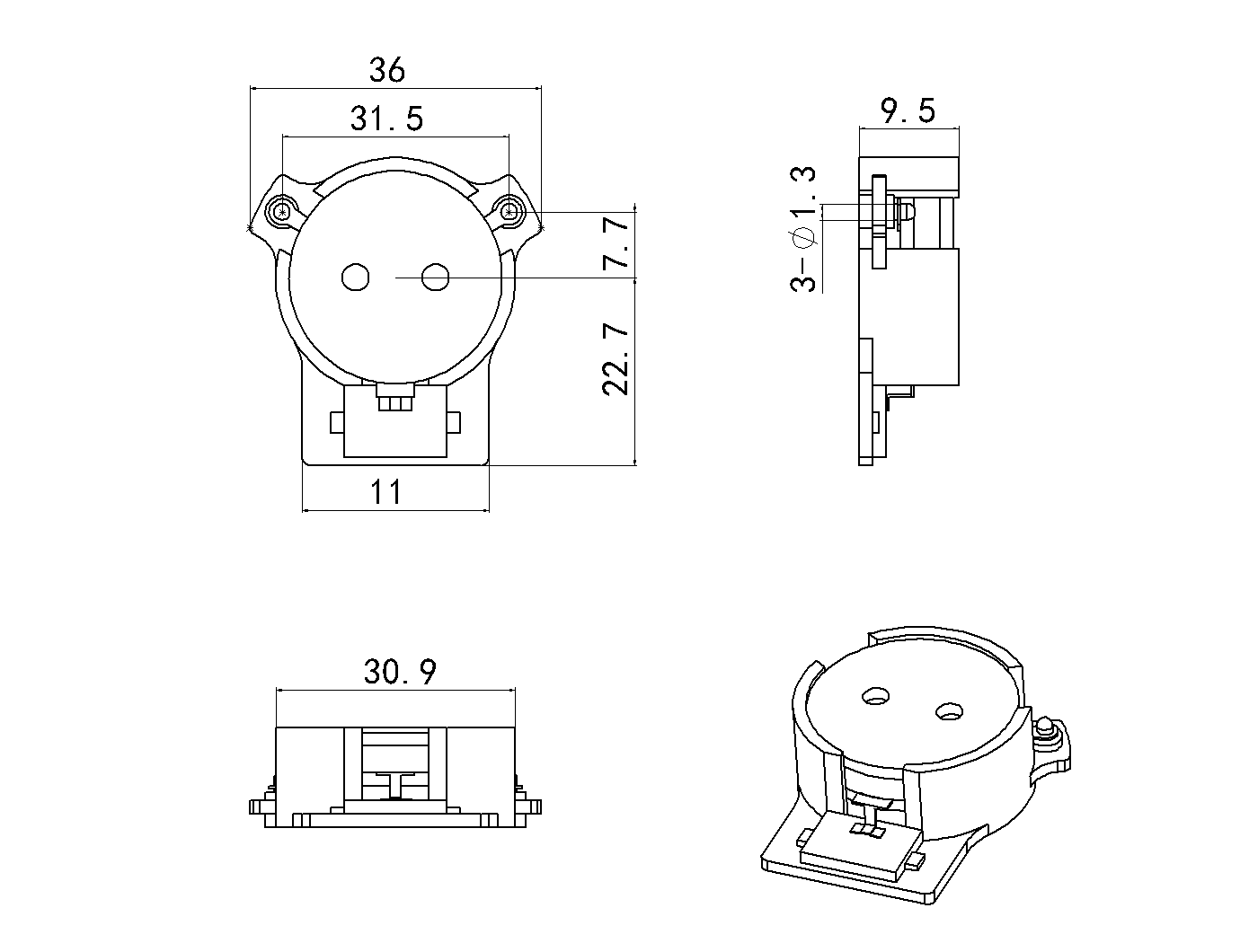

- Outline
- Reviews (0)
Description
The product named OHYG111B-2110-2180 is high-performance stripline surface-mounted isolatordesigned for robust signal conditioning and powermanagement in wireless communication systems.
OHYG111B-2110-2180 |
|
|
OHYG111B-2110-2180 |
|
Property |
Value |
|
Frequency (MHz) |
0-2180 |
|
Bandwidth |
– |
|
Return Loss (dB) |
24 |
|
Isolation (dB) |
24 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
-72 @ 2*50W |
|
Power (W) |
200 |
|
Reverse Power (W) |
100 |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
31mm |
|
Operating Temp (degC) |
-40 to 120 |
|
Structure |
surface-mount |
Features |
|
|
Surface-mounted design |
|
|
Stripline structure |
|
|
Low insertion loss |
|
|
High isolation |
|
|
High power handling capacity |
|
|
Wide operating temperature range |
|
Applications |
|
|
designed for robust signal conditioning and powermanagement in wireless communication systems |
|
