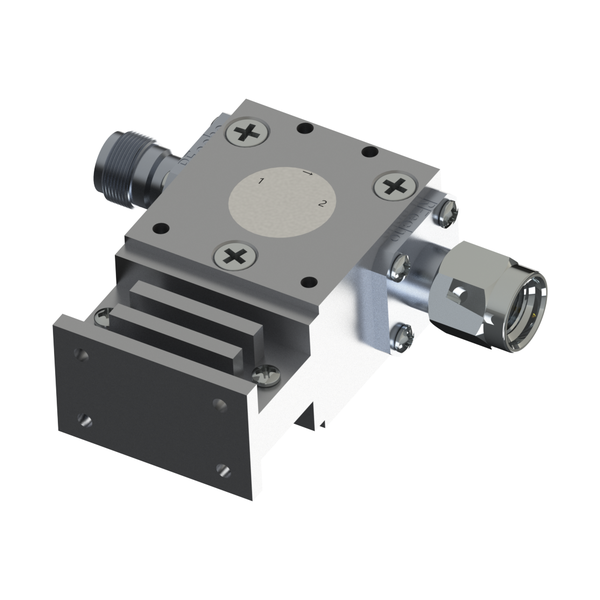

OHYG411-700-1000
Applicable to civil, military, aviation, and space technology
Good compatibility, customizable input/output connectors
High performance and high reliability
- Description
- Datasheet

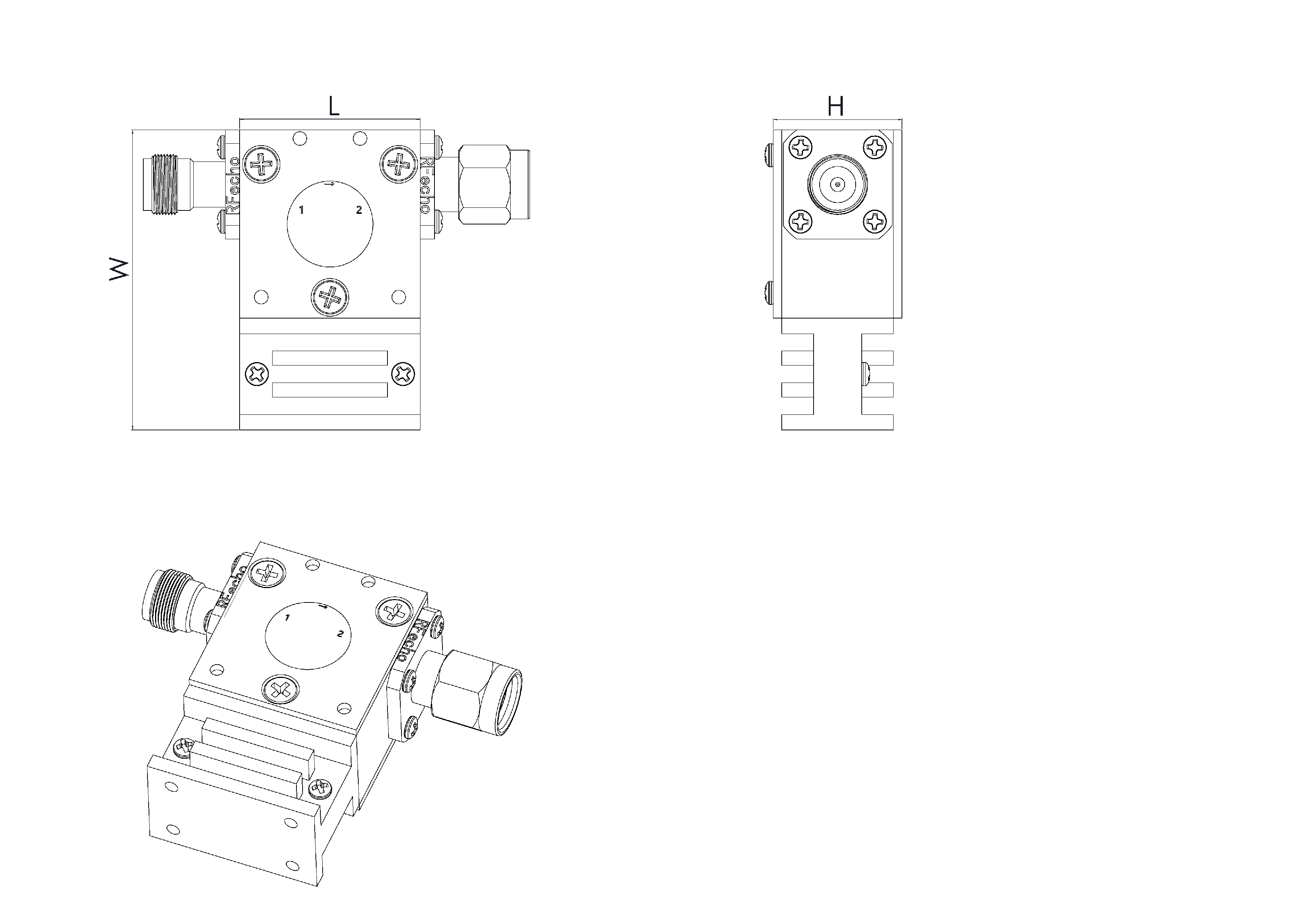

- Outline
- Reviews (0)
Description
The product named OHYG411 is high-performancecoaxial product with a frequency range covering100MHz-40GHz, widely used in civil, military,aviation, and space technology applications. Itfeatures high performance and high reliability withcustomizable input and output connectors.
OHYG411-700-1000 |
|
|
OHYG411-700-1000 |
|
Property |
Value |
|
Frequency (MHz) |
700-1000 |
|
Bandwidth |
– |
|
Return Loss (dB) |
1.45 |
|
Isolation (dB) |
15 |
|
Insertion Loss (dB) |
0.6 |
|
VSWR |
– |
|
IMD3 (dBc) |
200 |
|
Power (W) |
200 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
– |
|
Operating Temp (degC) |
-55 to +85 |
|
Structure |
coaxial |
Features |
|
|
Applicable to civil, military, aviation, and space technology |
|
|
Good compatibility, customizable input/output connectors |
|
|
High performance and high reliability |
|
Applications |
|
