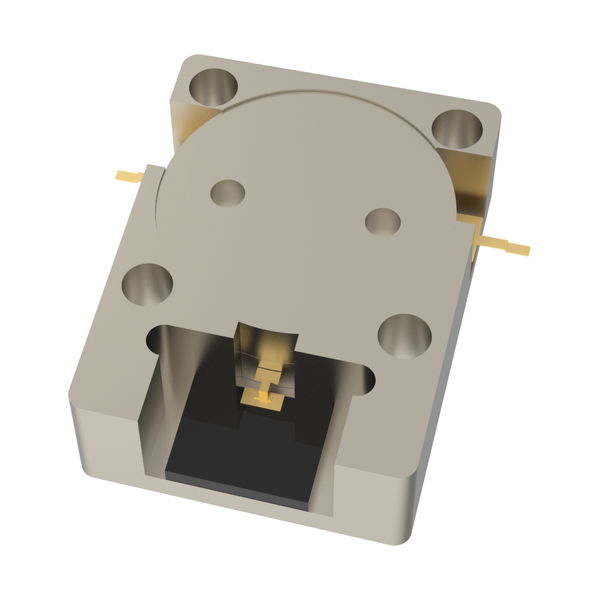

OHYG50 2H-1805-1880
High Isolation
Low Insertion Loss
Compact Embedded Design
Excellent IMD3 Performance
Broad Operating Temperature Range
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The product named OHYG50 2H-1805-1880 is high-performance stripline embeddedisolator designed for stable signal isolation incommunication systems. It offers a compactfootprint and reliable performance over a widetemperature range.
OHYG502H-1805-1880 |
|
|
OHYG50 2H-1805-1880 |
|
Property |
Value |
|
Frequency (MHz) |
1805-1880 |
|
Bandwidth |
– |
|
Return Loss (dB) |
23 |
|
Isolation (dB) |
23 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
-69 |
|
Power (W) |
2 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
0.75inch |
|
Operating Temp (degC) |
-40 to 120 |
|
Structure |
stripline |
Features |
|
|
High Isolation |
|
|
Low Insertion Loss |
|
|
Compact Embedded Design |
|
|
Excellent IMD3 Performance |
|
|
Broad Operating Temperature Range |
|
Applications |
|
|
designed for stable signal isolation incommunication systems. |
|
