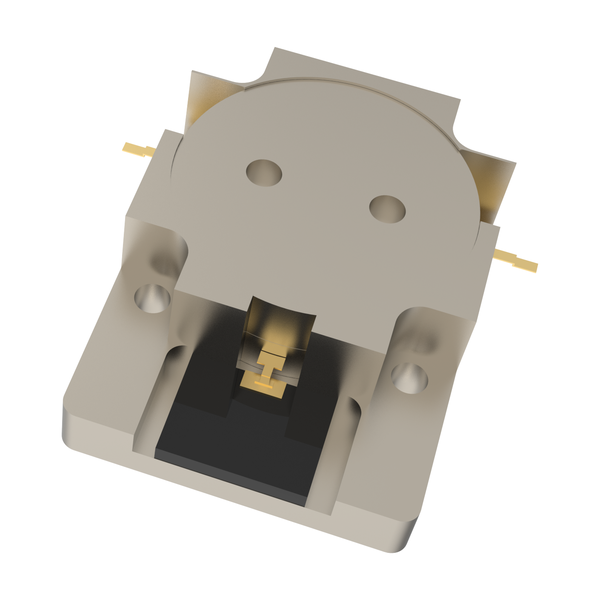

OHYG50 5M-791-821
Embedded Stripline Isolator
Low Insertion Loss
High Isolation
Wide Operating Temperature Range
High Forward/Reverse Power Handling
- Description
- Datasheet

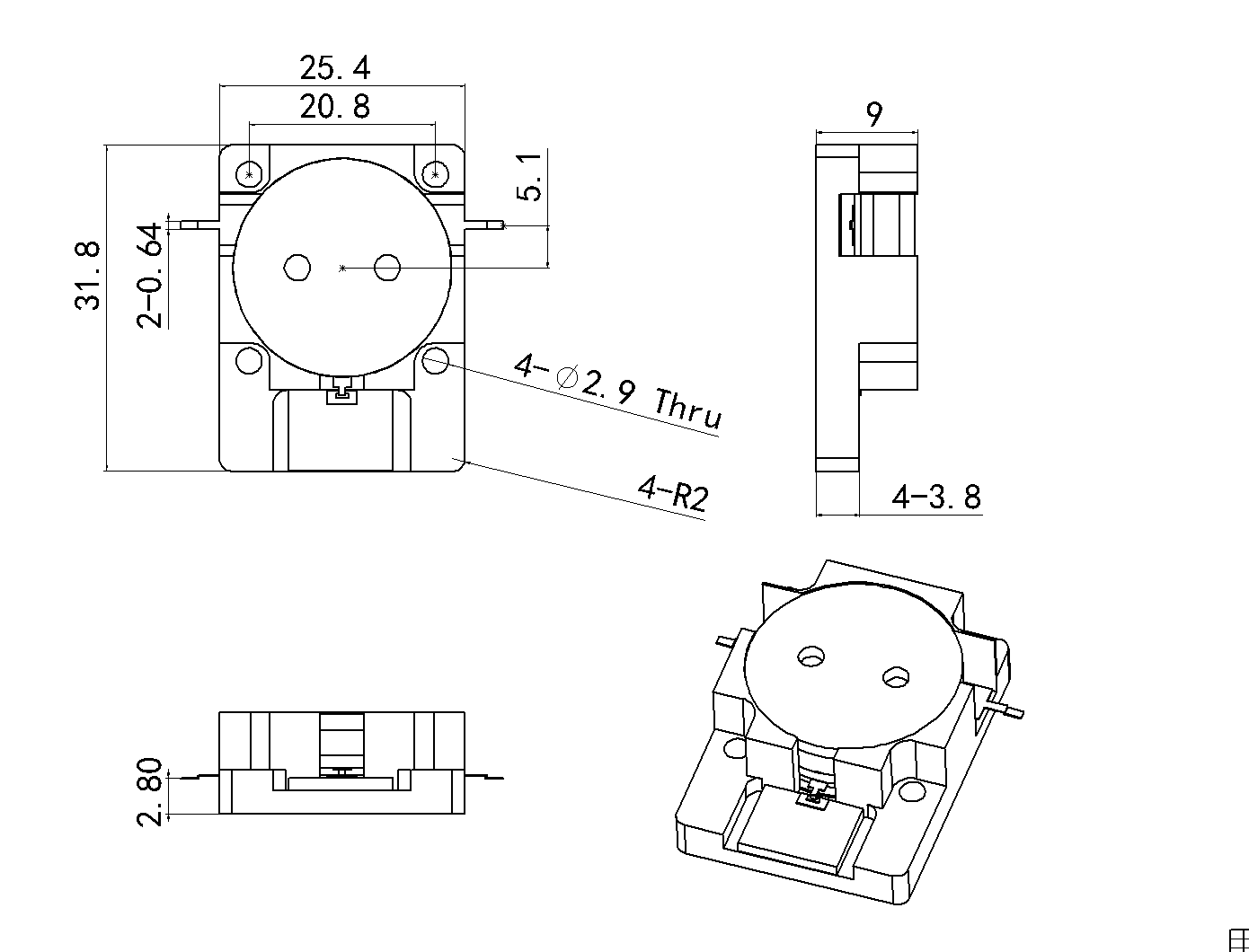

- Outline
- Reviews (0)
Description
The product named OHYG50 5M 791-821 is high-performance embedded isolator designed for stripline applications, offering excellent isolation and low insertion loss across the 791-821 MHzfrequency range.
OHYG505M-791-821 |
|
|
OHYG50 5M-791-821 |
|
Property |
Value |
|
Frequency (MHz) |
791-821 |
|
Bandwidth |
– |
|
Return Loss (dB) |
22 |
|
Isolation (dB) |
22 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
-68 |
|
Power (W) |
2 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
1.0inch |
|
Operating Temp (degC) |
-40 to 120 |
|
Structure |
stripline |
Features |
|
|
Embedded Stripline Isolator |
|
|
Low Insertion Loss |
|
|
High Isolation |
|
|
Wide Operating Temperature Range |
|
|
High Forward/Reverse Power Handling |
|
Applications |
|
|
designed for stripline applications |
|
