OHYG511C-1805-2170
High isolation
Low insertion loss
High power handling
Wide operating temperature range
Excellent IMD3 performance
- Description
- Datasheet

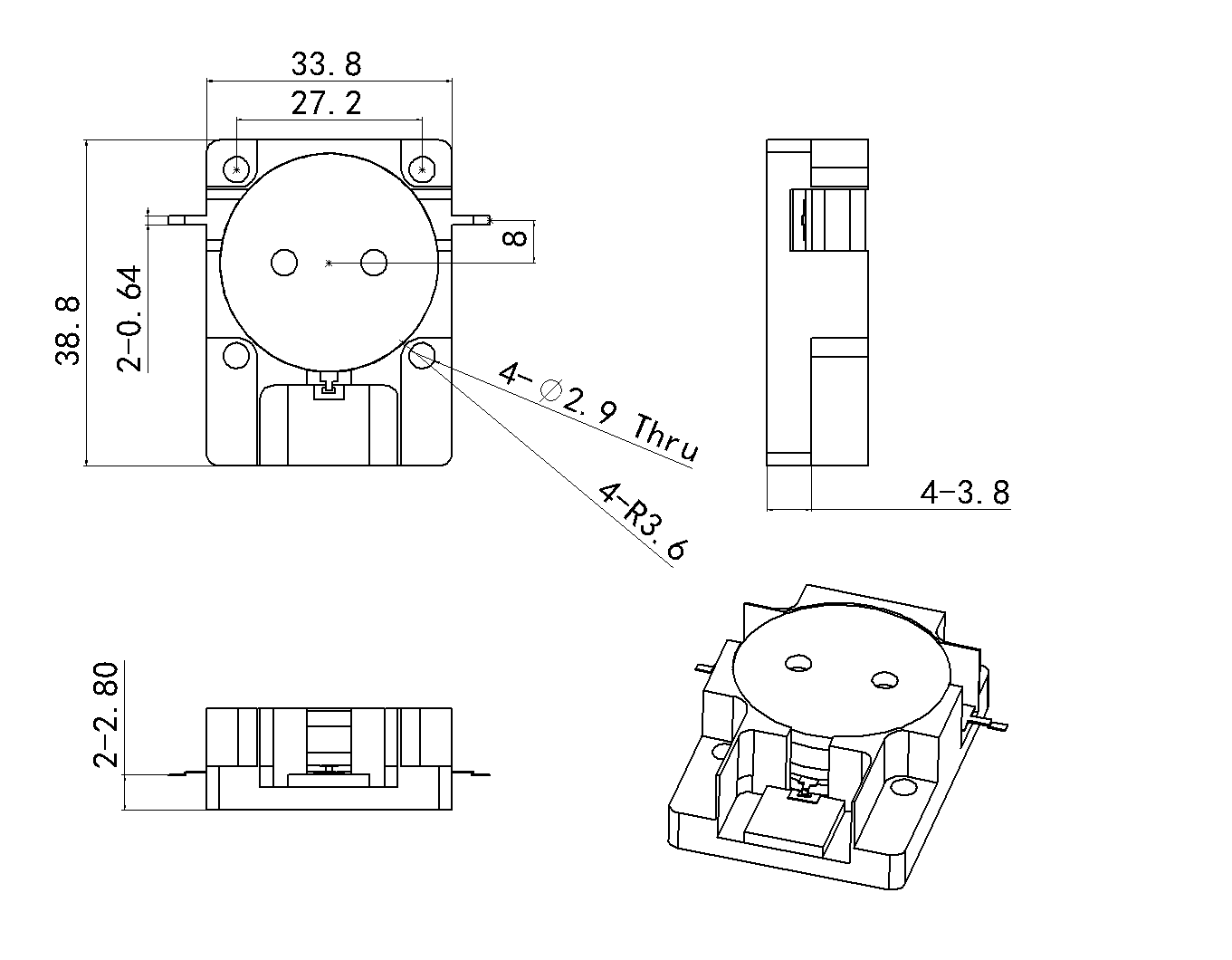

- Outline
- Reviews (0)
Description

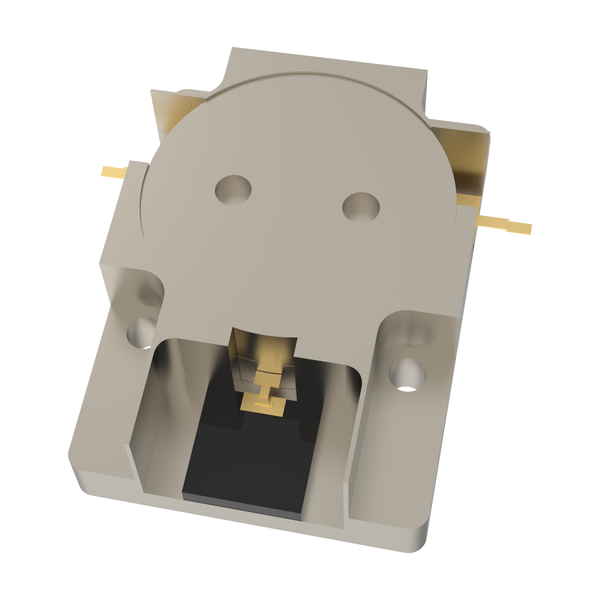

The product named OHYG511C-1805-2170 is high-performance embedded isolator designed for stripline applications, offering high isolation and lowinsertion loss across its operating range.
OHYG511C-1805-2170 |
|
|
OHYG511C-1805-2170 |
|
Property |
Value |
|
Frequency (MHz) |
1805-2170 |
|
Bandwidth |
– |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
-65 2*50W |
|
Power (W) |
250 |
|
Reverse Power (W) |
150 |
|
Peak Power |
– |
|
Power note |
2*50W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
1.25inch |
|
Operating Temp (degC) |
-40 to 120 |
|
Structure |
stripline |
Features |
|
|
High isolation |
|
|
Low insertion loss |
|
|
High power handling |
|
|
Wide operating temperature range |
|
|
Excellent IMD3 performance |
|
Applications |
|
|
designed for stripline applications |
|
