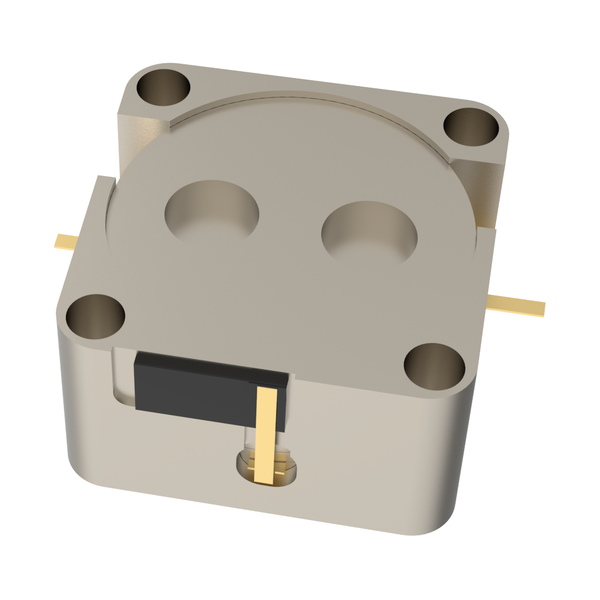

OHYG563D-2110-2170
Embedded Isolator
Stripline product
High isolation
Low insertion loss
Wide temperature range
- Description
- Datasheet

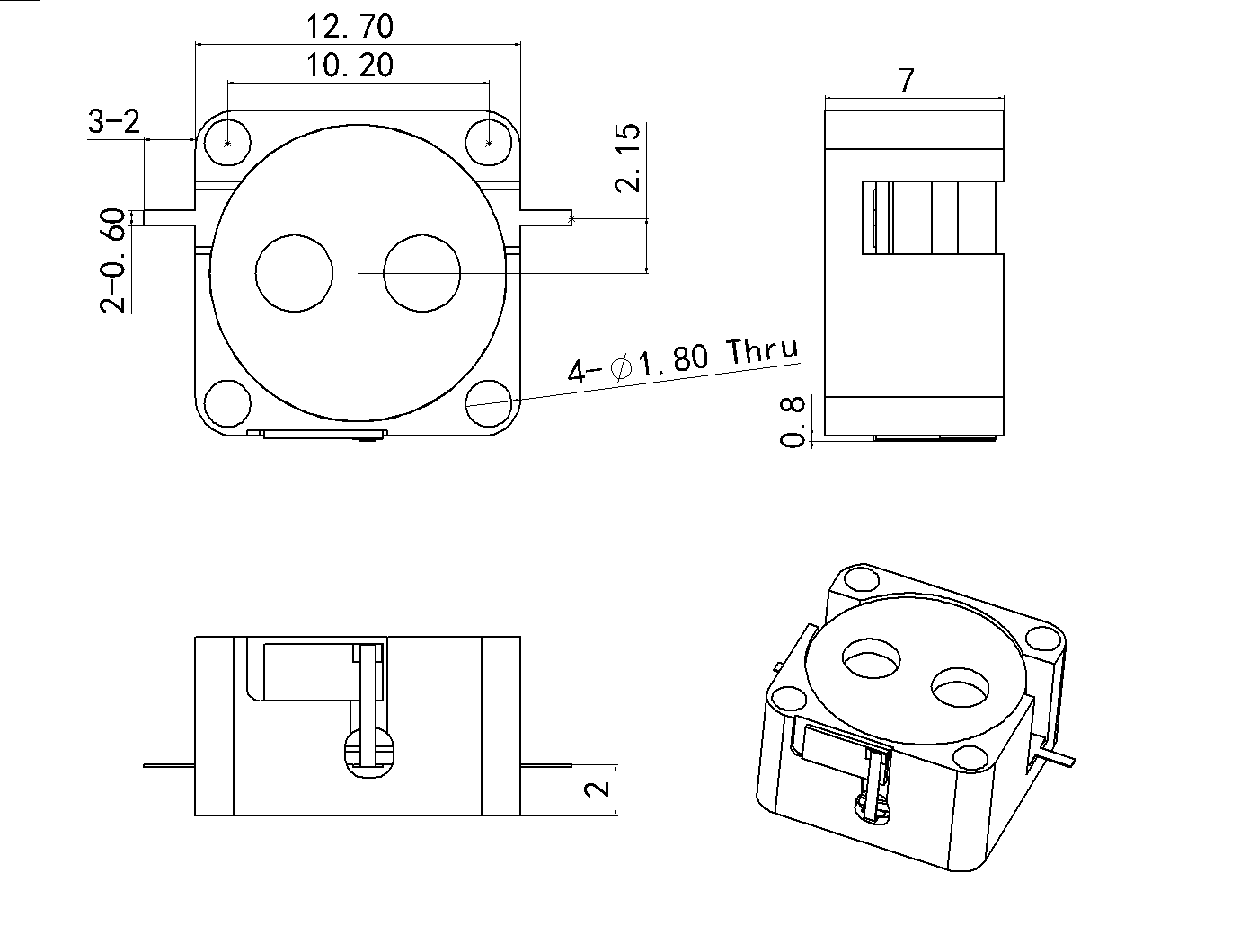

- Outline
- Reviews (0)
Description
The product named OHYG563D-2110-2170 is high-performance stripline embedded isolato designed for reliable signal isolation incommunication systems.
OHYG563D-2110-2170 |
|
|
OHYG563D-2110-2170 |
|
Property |
Value |
|
Frequency (MHz) |
2110-2170 |
|
Bandwidth |
– |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
VSWR |
– |
|
IMD3 (dBc) |
-62 2*10W |
|
Power (W) |
80 |
|
Reverse Power (W) |
10 |
|
Peak Power |
– |
|
Power note |
2*10W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
0.5inch |
|
Operating Temp (degC) |
-40 to 85 |
|
Structure |
stripline |
Features |
|
|
Embedded Isolator |
|
|
Stripline product |
|
|
High isolation |
|
|
Low insertion loss |
|
|
Wide temperature range |
|
Applications |
|
|
designed for reliable signal isolation incommunication systems |
|
