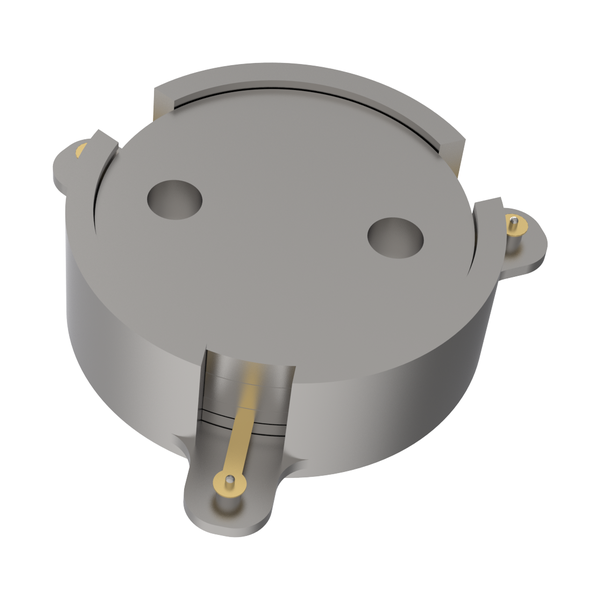

OHYH101B-2300-2400
Stripline design
Surface mount package
High isolation
Low insertion loss
Wide operating temperature range
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The product named OHYH101B-2300-2400 is high-performance stripline surface mount circulator designed for robust signal routing in RFcommunication systems, offering excellent
OHYH101B-2300-2400 |
|
|
OHYH101B-2300-2400 |
|
Property |
Value |
|
Frequency (MHz) |
2300-2400 |
|
Bandwidth |
– |
|
Return Loss (dB) |
23 |
|
Isolation (dB) |
23 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
2 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
23.4mm |
|
Operating Temp (degC) |
-40 to 120 |
|
Structure |
surface-mount |
Features |
|
|
Stripline design |
|
|
Surface mount package |
|
|
High isolation |
|
|
Low insertion loss |
|
|
Wide operating temperature range |
|
Applications |
|
|
designed for telecommunications and RF applications requiring high isolation and low insertion loss. |
|
