OHYH101P-758-960
Stripline configuration
Surface mount design
High isolation
Low insertion loss
Wide frequency range coverage
- Description
- Datasheet
- Outline
- Reviews (0)
Description

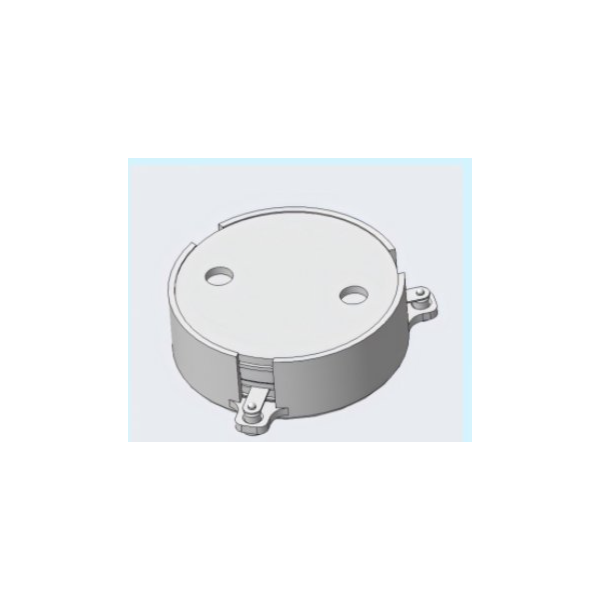

The product named OHYH101P is high-performancestripline surface mount circulator designed fortelecommunication applications, offering highisolation and low insertion loss across its operatingbandwidth.
OHYH101P-758-960 |
|
|
OHYH101P-758-960 |
|
Property |
Value |
|
Frequency (MHz) |
8-960 |
|
Bandwidth |
– |
|
Return Loss (dB) |
19 |
|
Isolation (dB) |
19 |
|
Insertion Loss (dB) |
0.3 |
|
VSWR |
– |
|
IMD3 (dBc) |
-60 2*50W |
|
Power (W) |
250 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
2*50W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
25.4mm |
|
Operating Temp (degC) |
-40 to 125 |
|
Structure |
surface-mount |
Features |
|
|
Stripline configuration |
|
|
Surface mount design |
|
|
High isolation |
|
|
Low insertion loss |
|
|
Wide frequency range coverage |
|
Applications |
|
|
Designed for telecommunication applications |
|
