OHYH102B-3300-3600
Surface mount design for easy PCB integration
High isolation (20 dB)
Low insertion loss (0.30 dB)
High power handling (160W)
Wide operating temperature range (-40degC to +120degC)
Low IMD3 (-65 dBc @ 2*30W)
- Description
- Datasheet
- Outline
- Reviews (0)
Description

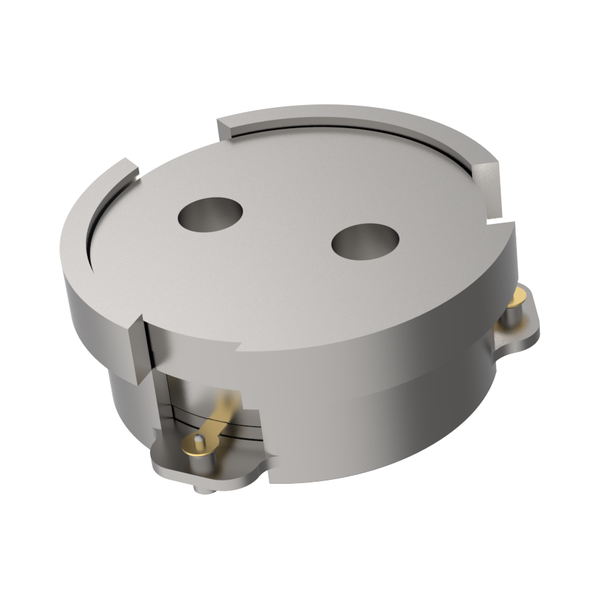

The product named OHYH102B-3300-3600 is high-performance stripline surface mount circulator designed for telecommunications and RF applications requiring high isolation and low insertion loss.
OHYH102B3300-3600 |
|
|
OHYH102B-3300-3600 |
|
Property |
Value |
|
Frequency (MHz) |
3300-3600 |
|
Bandwidth |
– |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
VSWR |
– |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
160 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
2*30W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
– |
|
Operating Temp (degC) |
-40 to 120 |
|
Structure |
– |
Features |
|
|
Surface mount design for easy PCB integration |
|
|
High isolation (20 dB) |
|
|
Low insertion loss (0.30 dB) |
|
|
High power handling (160W) |
|
|
Wide operating temperature range (-40degC to +120degC) |
|
|
Low IMD3 (-65 dBc @ 2*30W) |
|
Applications |
|
|
designed for telecommunications and RF applications requiring high isolation and low insertion loss. |
|
