OHYH103B-1805-1880
Surface mount package
Low insertion loss
High isolation
High power handling up to 120W
Stable performance across temperature range
- Description
- Datasheet

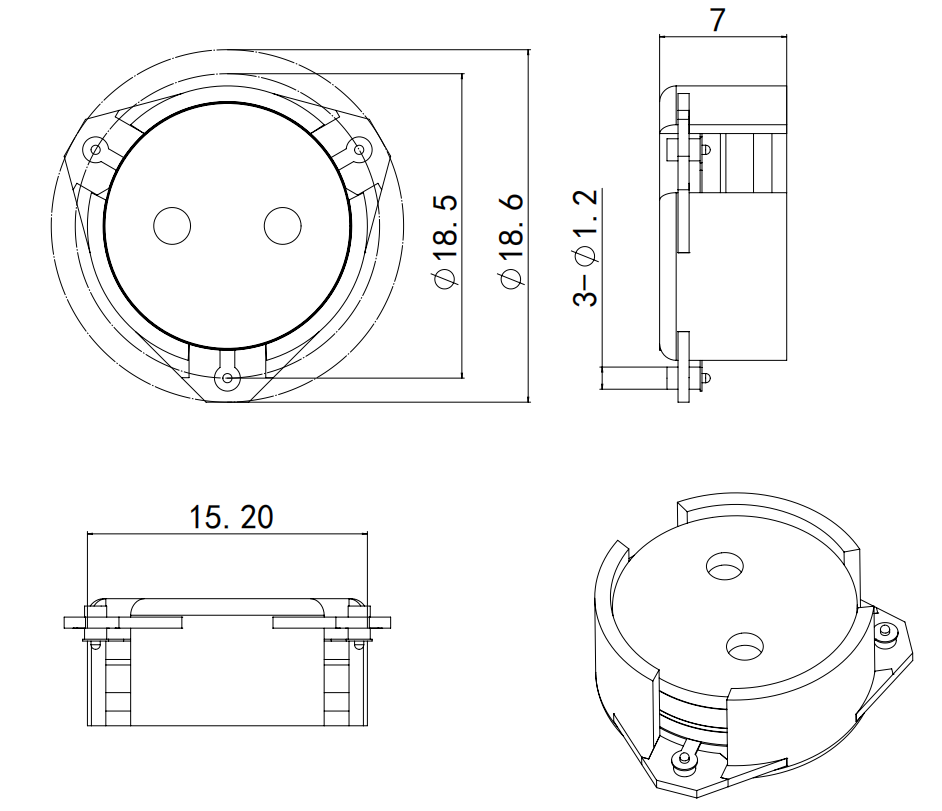

- Outline
- Reviews (0)
Description

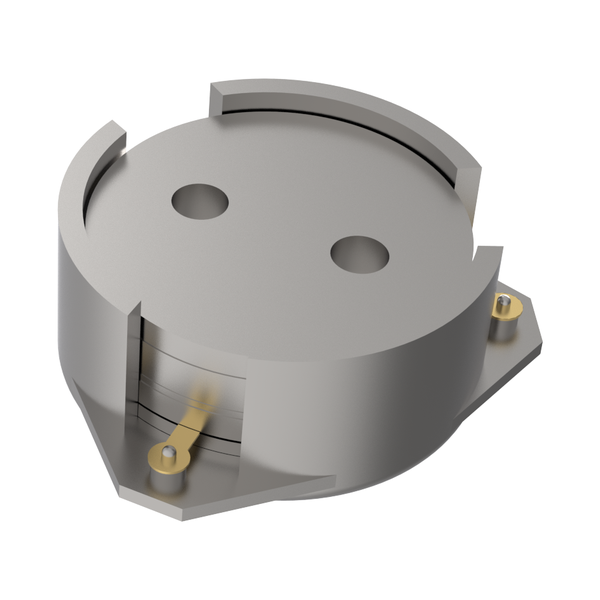

The product named OHYH103B-1805-1880 is high-performance stripline surface mount circulator designed for telecommunications applications.
OHYH103B-1805-1880 |
|
|
OHYH103B-1805-1880 |
|
Property |
Value |
|
Frequency (MHz) |
1805-1880 |
|
Bandwidth |
– |
|
Return Loss (dB) |
22 |
|
Isolation (dB) |
22 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
2 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
15.5mm |
|
Operating Temp (degC) |
-40 to 125 |
|
Structure |
surface-mount |
Features |
|
|
Surface mount package |
|
|
Low insertion loss |
|
|
High isolation |
|
|
High power handling up to 120W |
|
|
Stable performance across temperature range |
|
Applications |
|
|
designed for telecommunications applications. |
|
