OHYH524C-1800-1880
Embedded circulator design
High isolation of 23 dB
Low insertion loss of 0.25 dB
High power handling capability up to 160W
Operating temperature range from -40 to +85 Celsius
- Description
- Datasheet
- Outline
- Reviews (0)
Description

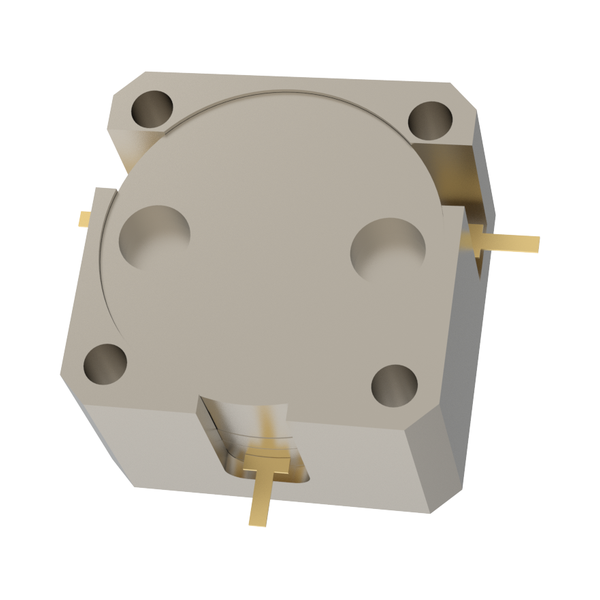

The product named OHYH524C-1800-1880 is high-performance stripline embedded circulator designed for RF signal isolation and routing intelecommunication systems.
OHYH524C-1800-1880 |
|
|
OHYH524C-1800-1880 |
|
Property |
Value |
|
Frequency (MHz) |
1800-1880 |
|
Bandwidth |
– |
|
Return Loss (dB) |
23 |
|
Isolation (dB) |
23 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
2 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
0.75inch |
|
Operating Temp (degC) |
-40 to 85 |
|
Structure |
stripline |
Features |
|
|
Embedded circulator design |
|
|
High isolation of 23 dB |
|
|
Low insertion loss of 0.25 dB |
|
|
High power handling capability up to 160W |
|
|
Operating temperature range from -40 to +85 Celsius |
|
Applications |
|
|
designed for RF signal isolation and routing intelecommunication systems |
|
