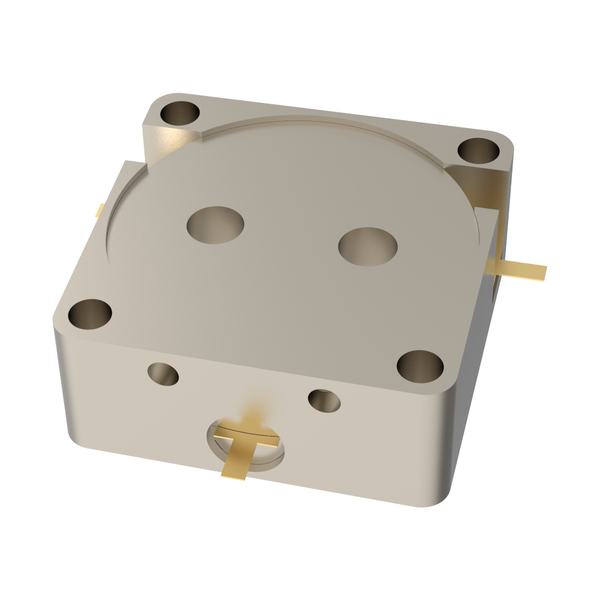

OHYH535A-2496-2690
Embedded stripline design
High isolation performance
Low insertion loss
High power handling capability
Wide operating temperature range
- Description
- Datasheet

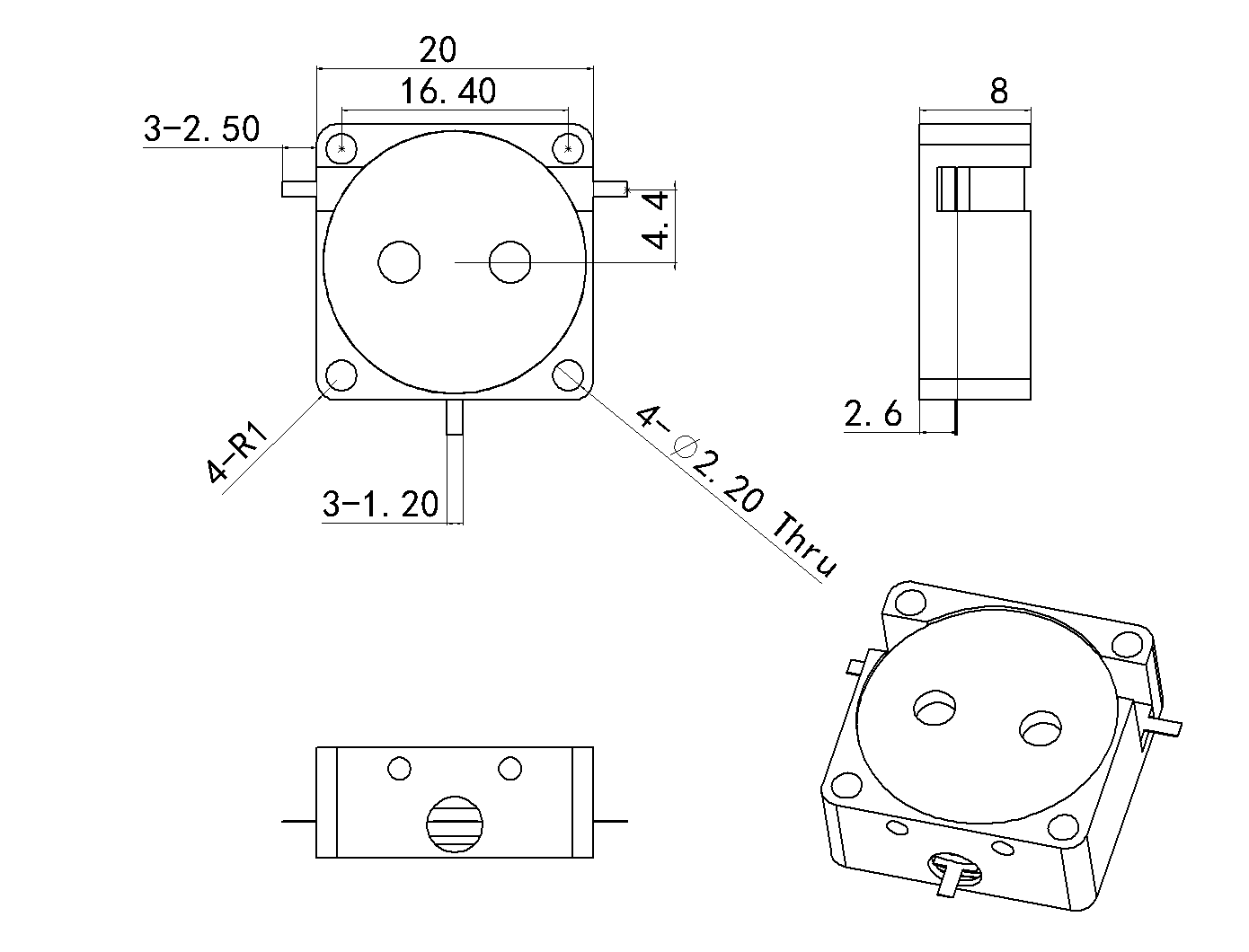

- Outline
- Reviews (0)
Description
The product named OHYH535A-2496-2690 is high-performance stripline embedded circulatordesigned for telecommunications and microwaveapplications, offering stable isolation and lowinsertion loss across its operating range.
OHYH535A-2496-2690 |
|
|
OHYH535A-2496-2690 |
|
Property |
Value |
|
Frequency (MHz) |
2496-2690 |
|
Bandwidth |
– |
|
Return Loss (dB) |
22 |
|
Isolation (dB) |
22 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
2 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
– |
|
Connector |
– |
|
Impedance |
– |
|
Size |
20mm |
|
Operating Temp (degC) |
30 ~ 160 |
|
Structure |
stripline |
Features |
|
|
Embedded stripline design |
|
|
High isolation performance |
|
|
Low insertion loss |
|
|
High power handling capability |
|
|
Wide operating temperature range |
|
Applications |
|
|
designed for telecommunications and microwave applications |
|
