Portable UAV Decoy Defense System
Rapid deployment for temporary security areas
Effective jamming of UAV satellite navigation components
Capable of countering drone swarm attacks
Networkable with multiple base stations for coordinated defense
Integrated mobile power supply for extended operation
Remote control via dedicated hardware or smart terminals
High-speed system initialization within 10 minutes
Wide operating temperature range for diverse environments
- Description
- Datasheet
- Reviews (0)
Description

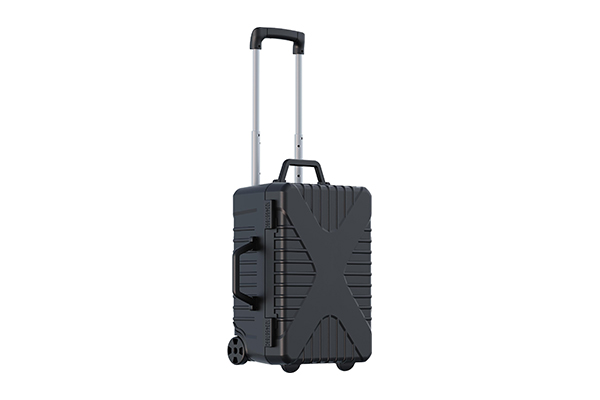

The Portable UAV Decoy Defense System is an active protection solution that blocks the satellite navigation components of UAVs by transmitting low-power milliwatt signals. It establishes a spherical defense zone with a radius exceeding 500 meters, effectively creating a no-fly barrier against unauthorized ‘black flight’ drones. Designed for mobility, the system allows for rapid deployment in temporary security zones without requiring additional detection hardware. It offers all-weather, 360-degree protection and is capable of repelling entire drone swarms. Key applications include temporary security for large-scale events, protection of critical infrastructure, and rapid defense of sensitive areas. The system supports long-duration operation via integrated batteries and can be controlled remotely via dedicated controllers or smart terminals.
OC-UAV-DECOY-SYSTEM |
|
|
Portable UAV Decoy Defense System |
|
Property |
Value |
|
Operating Distance |
≥ 500m (unobstructed, 360°) |
|
Power Supply |
Internal battery ≥ 12 hours; supports 110V-220V |
|
Startup Time |
≤ 10 minutes |
|
Effective Distance |
≥ 500m (unobstructed, 360°) |
|
Maximum Operating Temperature |
+60°C |
|
Operating Frequency |
Civilian UAV navigation bands |
|
Power Consumption |
≤ 75W |
|
Maximum Power Consumption |
75W |
|
Host Dimensions |
< 570mm (L) * 360mm (W) * 245mm (H) |
|
Signal Transmit Power |
≤ 10mW |
|
Host Weight |
≤ 30kg |
|
Dimensions |
< 570mm (L) * 360mm (W) * 245mm (H) |
|
Remote Control |
Dedicated controller ≥ 200m / Smart terminal |
|
Operating Temperature (Host) |
-40°C to +60°C |
|
Operating Temperature (Standard Battery) |
+5°C to +40°C |
|
Operating Temperature (Custom Wide-Temp Battery) |
-20°C to +55°C |
|
Remote Control Distance |
Controller ≥ 200m; supports smartphone terminal |
|
Operating Temperature (Excluding Battery) |
-40°C to +60°C |
|
Standard Battery Operating Temperature |
+5°C to +40°C |
|
Wide Temperature Battery (Customized) |
-20°C to +55°C |
Features |
|
|
Rapid deployment for temporary security areas |
|
|
Effective jamming of UAV satellite navigation components |
|
|
Capable of countering drone swarm attacks |
|
|
Networkable with multiple base stations for coordinated defense |
|
|
Integrated mobile power supply for extended operation |
|
|
Remote control via dedicated hardware or smart terminals |
|
|
High-speed system initialization within 10 minutes |
|
|
Wide operating temperature range for diverse environments |
|
Applications |
|
|
Key applications include temporary security for large-scale events, protection of critical infrastructure, and rapid defense of sensitive areas. The system supports long-duration operation via integrated batteries and can be controlled remotely via dedicated controllers or smart terminals. |
|
