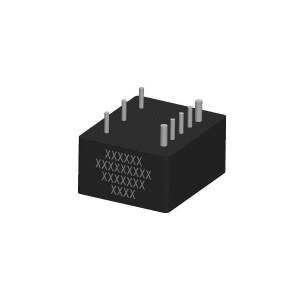

Power modules (1/32 brick) - QSM
The QSM power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 40W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- DC/DC isolated conversion
- Maximum output power: 40W
- Input undervoltage protection
- Output overcurrent, short circuit, Overtemperature protection
- Operating temperature (Tc): -55°C to 105°C
- Storage temperature: -55°C to 125°C
Product Selection

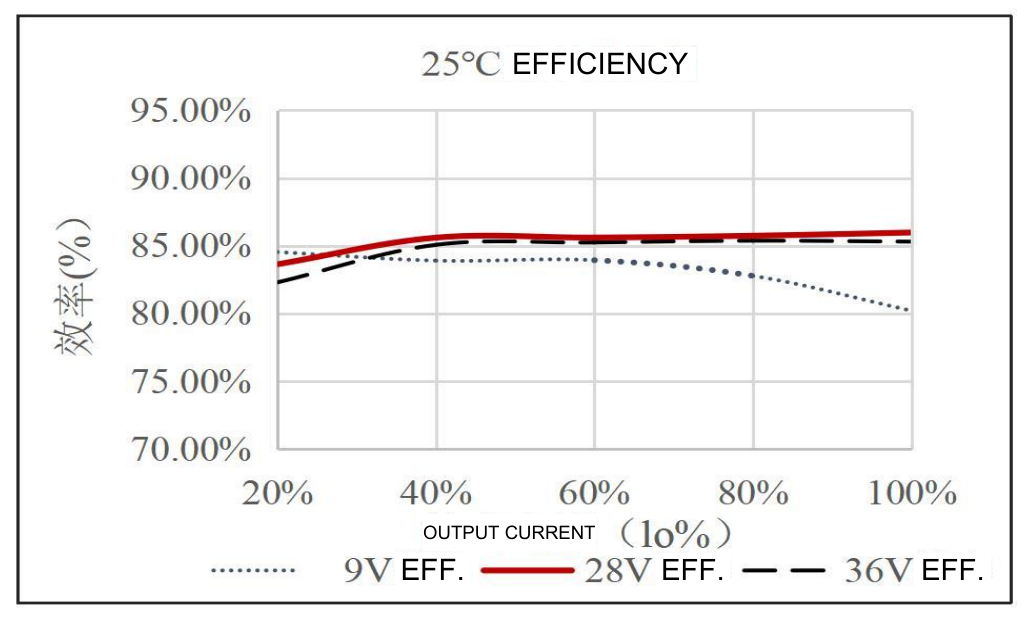

| Model | Input voltage (V) | Output voltage (V) | Output current (A) | Efficiency (%) Typical | Capacitive load (µF) max. | Ripple (mV) Typical |
|---|---|---|---|---|---|---|
| QSM40-18S12SNM | 9 to 36 | 12 | 3.33 | 86 | 2000 | 30 |
| QSM40-18S15SNM | 9 to 36 | 15 | 2.67 | 87 | 2200 | 100 |
| QSM40-18S24SNM | 9 to 36 | 24 | 1.67 | 85 | 1000 | 70 |
| QSM40-18S28SNM | 9 to 36 | 28 | 1.43 | 86 | 800 | 100 |
| QSM40-28S05SNM | 16 to 40 | 5 | 8.00 | 85 | 4500 | 100 |
| QSM40-28S12SNM | 16 to 40 | 12 | 3.33 | 86 | 3000 | 80 |
| QSM40-28S15SNM | 16 to 40 | 15 | 2.67 | 87 | 3000 | 100 |
| QSM40-28S24SNM | 16 to 40 | 24 | 1.67 | 85 | 1200 | 70 |
| QSM40-28S28SNM | 16 to 40 | 28 | 1.43 | 86 | 1000 | 100 |
| QSM40-28S36SNM | 16 to 40 | 36 | 1.12 | 89 | 470 | 85 |
Technical Data — QSM
| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 9 | 28 | 36 | V | 18 series, see the product selection table |
| Input voltage range | Room, High, Low | 16 | 28 | 40 | V | 28 series, see the product selection table |
| Input surge voltage | Room | — | — | 50 | V | 18/28 series, Vt=100ms, full load |
| No-load power consumption a | Room | — | 0.6 | — | W | nominal input voltage, no output load |

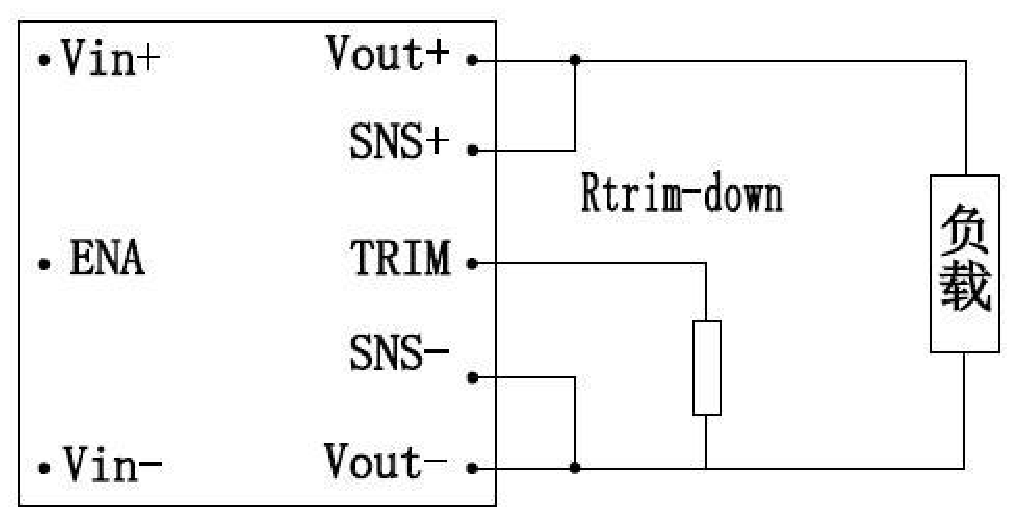

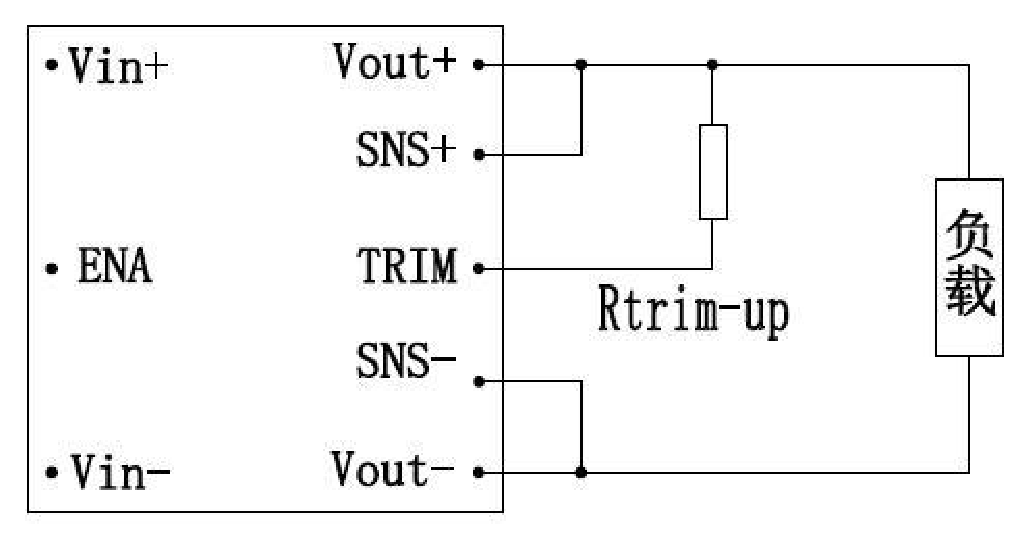

| Output voltage adjustment range | Room, High, Low | 80 | — | 110 | %VO | Io≤ maximum value and Po≤Vo×Iomax, 5V minimum output trim-down value 4.5V |
| Line regulation | Room, High, Low | -1 | — | +1 | %VO | full input-voltage range, full load |
| Load regulation | Room, High, Low | -1 | — | +1 | %VO | full load range |
| Turn-on delay a | Room | — | 15.2 | — | ms | time from power-on until output voltage reaches 10% time |

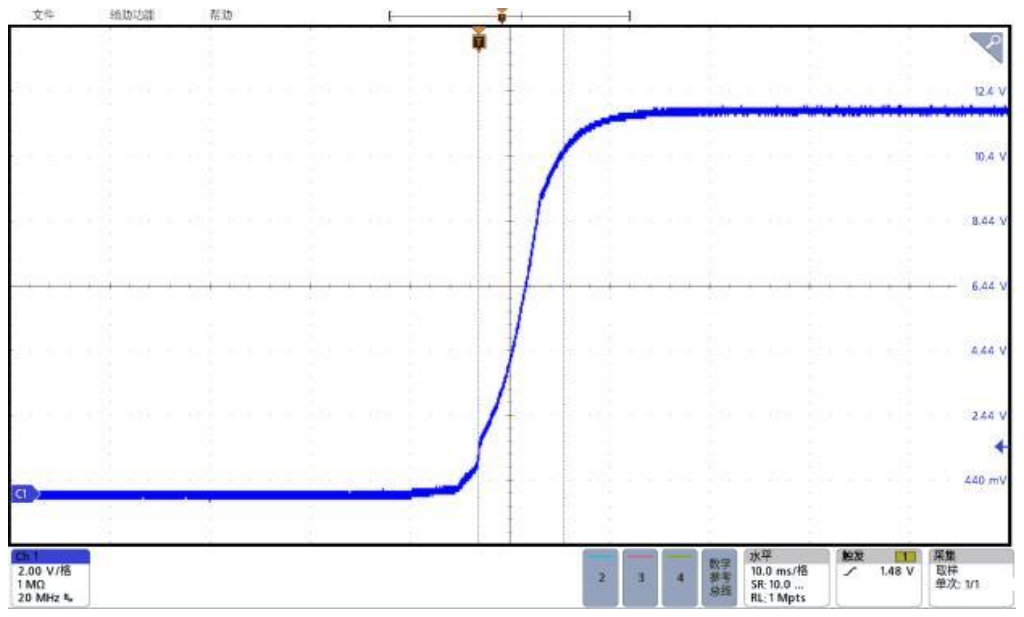

| Output voltage rise time a | Room | — | 9 | — | ms | output voltage from 10% rises to 90% time |
| ENA Turn-on delay a | Room | — | 14.8 | — | ms | ENA time from power-on until output voltage reaches 10% time |
| Enable logic level (negative logic) | Room | 0 | — | 0.7 | V | output enabled, see the application guide for control methods |
| Enable logic level (negative logic) | Room | 3.5 | — | 12 | V | no output when open or high, see the application guide for control methods |
| Input undervoltage protection | Room | 6 | — | 8.8 | V | half load, 9V to 36V input-voltage series |
| Input undervoltage protection | Room | 11 | — | 15.8 | V | half load, 16V to 40V input-voltage series |
| Output overcurrent protection | Room | 110 | — | — | %IO | hiccup mode, automatic recovery after overcurrent removal |
| Output short-circuit protection | Room | — | — | — | — | hiccup mode, automatic recovery after removal of the short circuit |
| Isolation withstand voltage | Room | - | no breakdown, no flashover; input to output, 1500Vdc/60s/<3.5mA | |||
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input, output, between each pair of terminals and case |
| Switching frequency a | Room | — | 270 | — | kHz | |
| MTBF | Room | — | 1.8 | — | 106h | ensure a good ground plane (GB), 25°C |
| Weight | / | — | 21 | — | g | S case type |

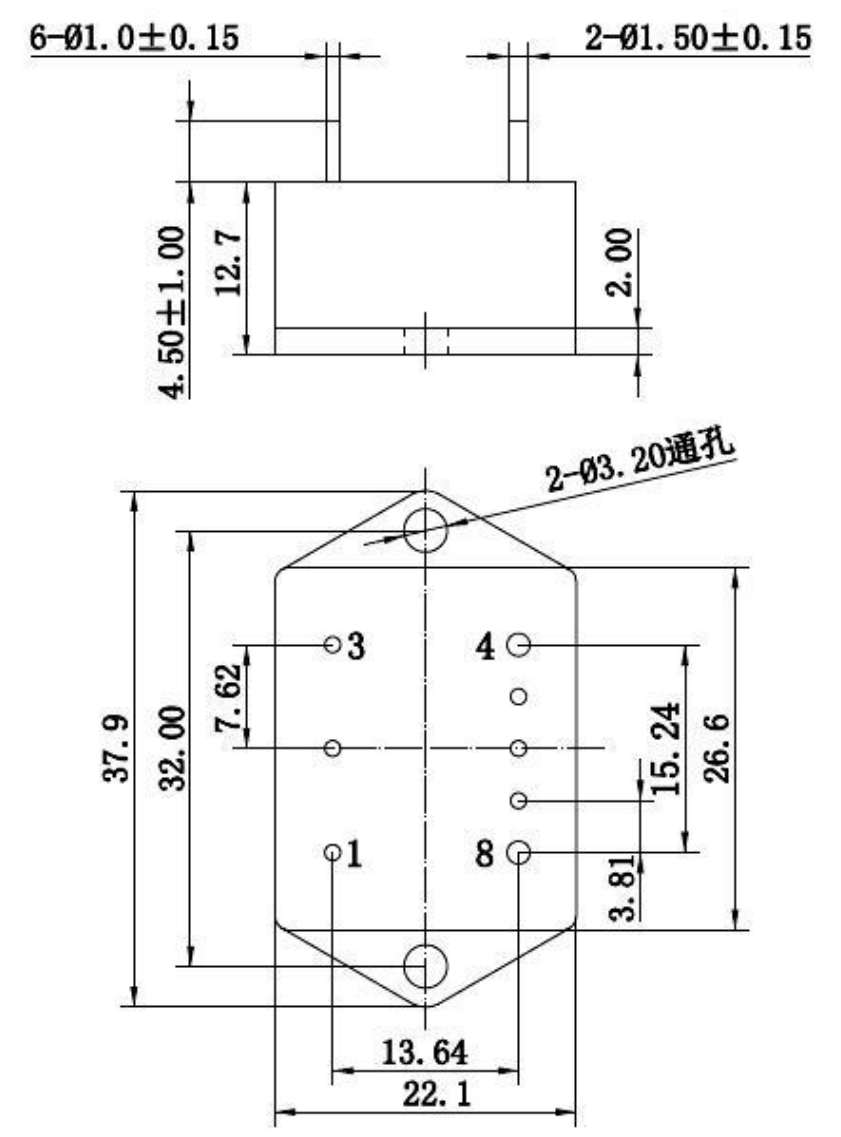

| Weight | / | — | 23 | — | g | F case type |

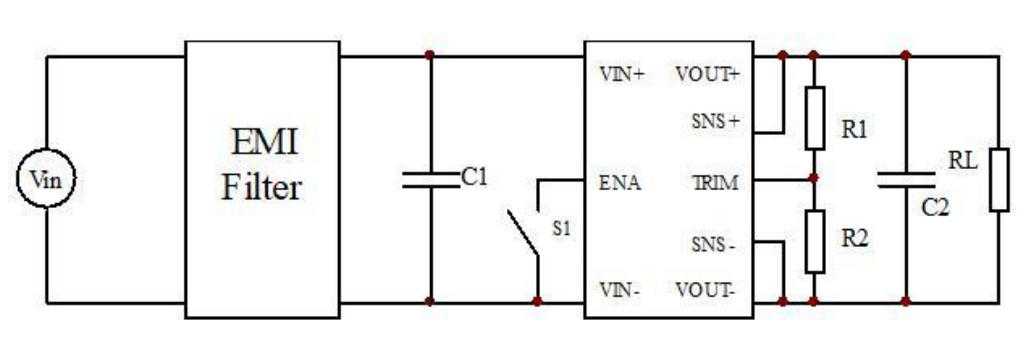

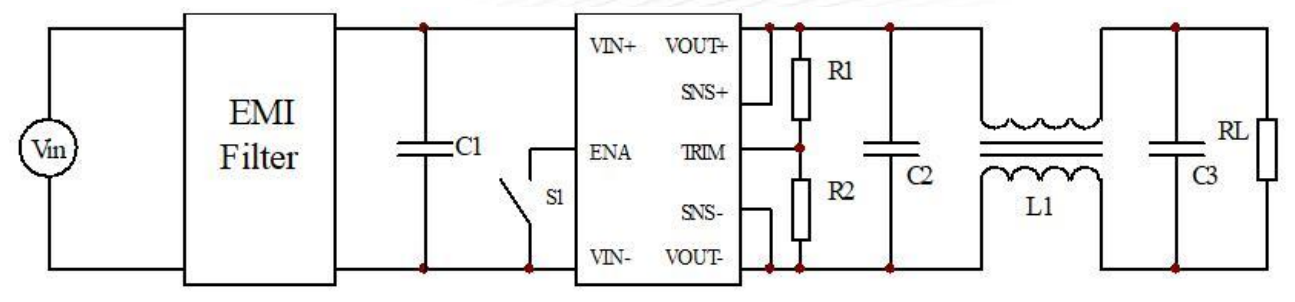

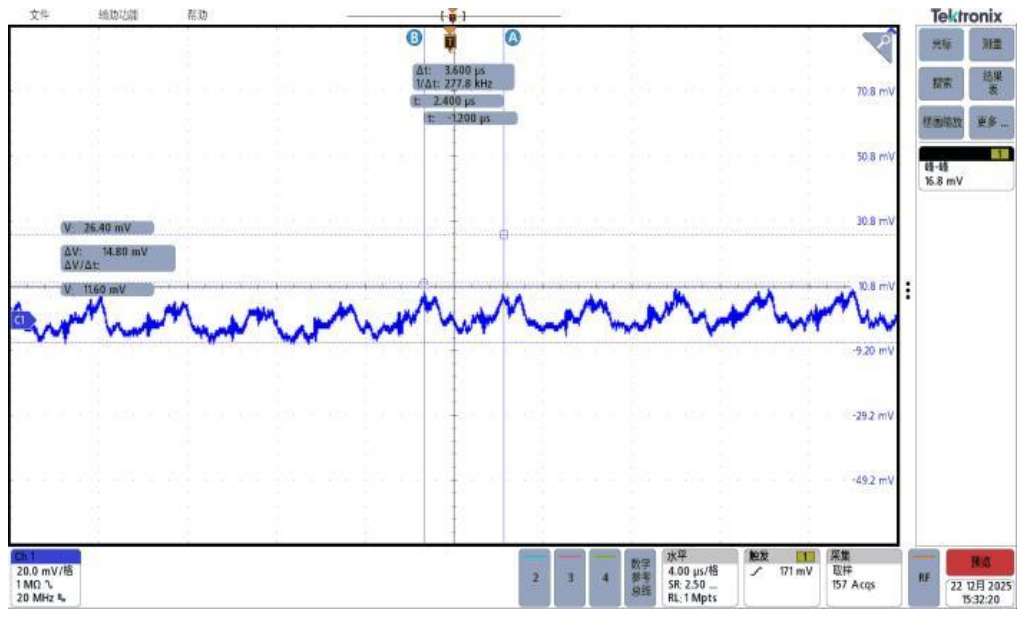

Note: 1, for other package types or temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, for example, an input-voltage range of 9Vdc to 12Vdc, continuous output loading, derate to 30W use; 3, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 4, see the typical application circuit for the ripple measurement method.
a: typical model QSM40-28S12SNM time, values may differ for other models, contact technical support for details.

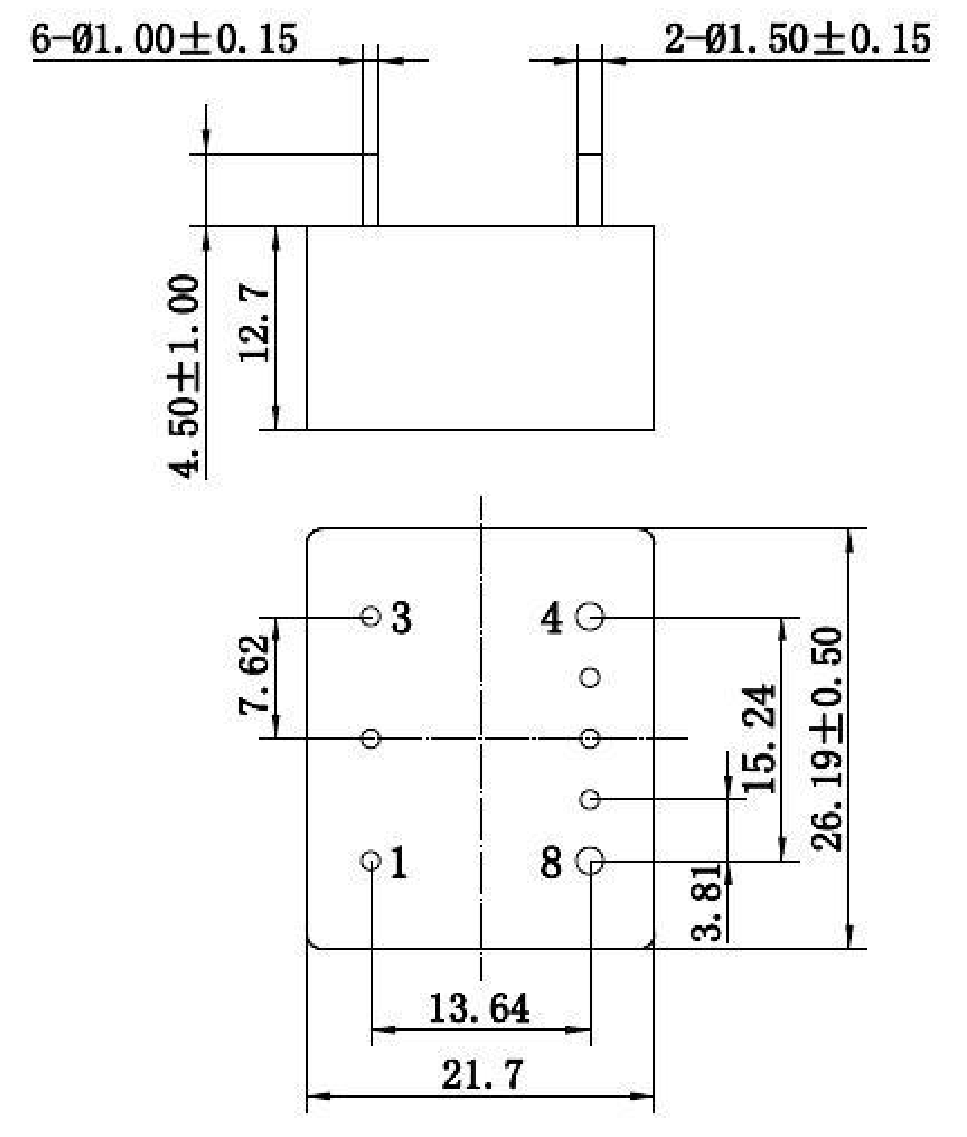

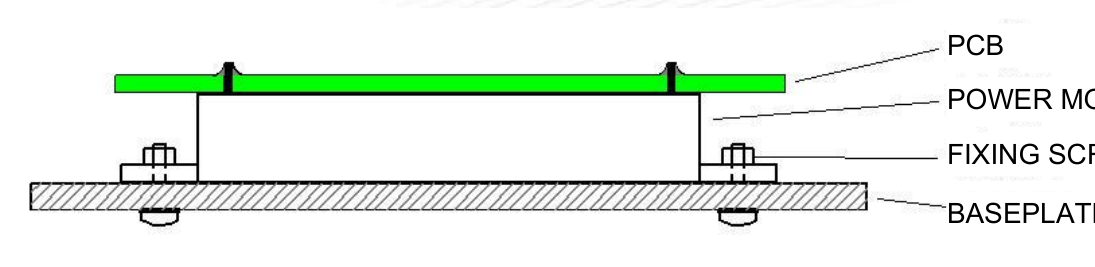

Outline & Mechanical Dimensions
