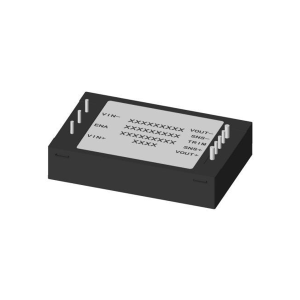

Power modules - QSQ150/350A-270
The QSQ150 / 350A-270 power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 350W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- DC/DC isolated conversion
- Maximum output power: 350W
- Input undervoltage protection
- Output overvoltage, overcurrent, short circuit, Overtemperature protection

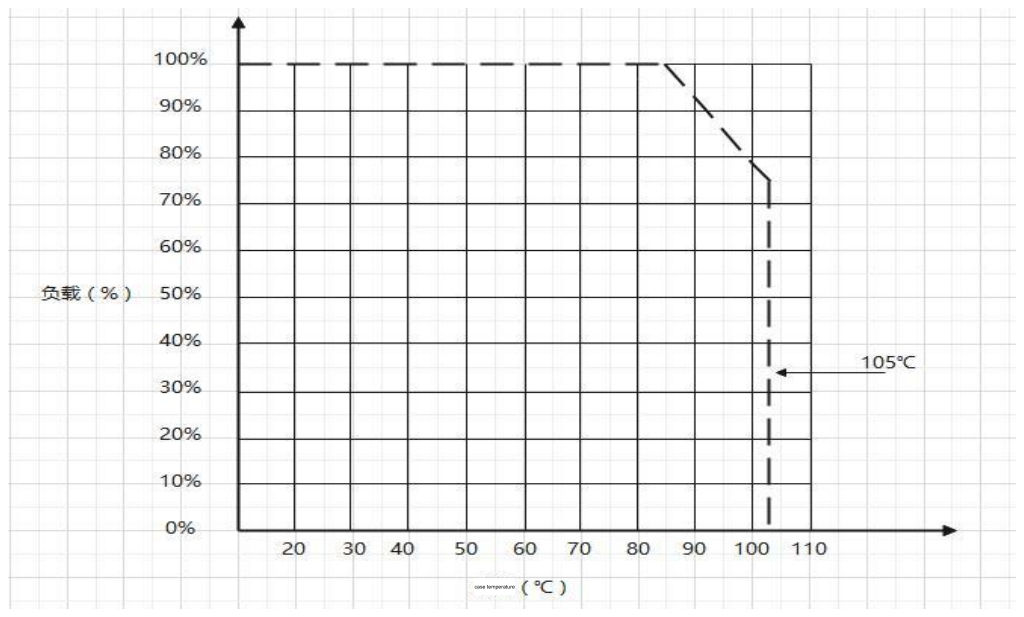

- Operating temperature (Tc): -55°C to +105°C
- Storage temperature: -55°C to 125°C
Product Selection

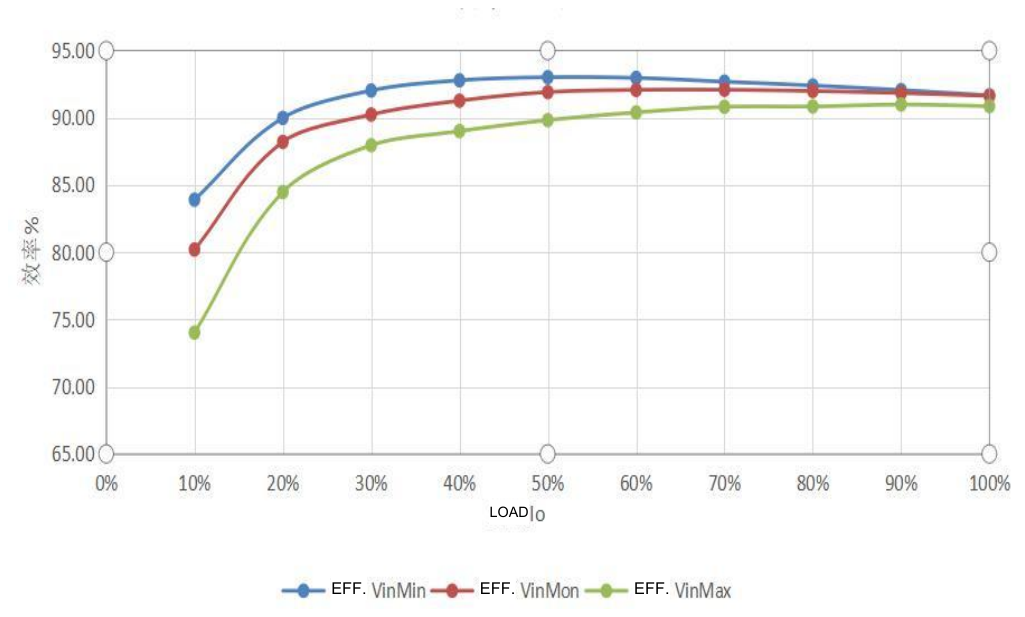

| Model | Input voltage (V) | Output voltage (V) | Output current (A) | Efficiency (%) half load / full load | Capacitive load (µF) max. | Ripple (mV) Typical | Package |
|---|---|---|---|---|---|---|---|
| QSQ150-270S05NNM | 200 to 400 | 5 | 30 | 90.5/90 | 4700 | 100 | A |
| QSQ150-270S12NNM | 200 to 400 | 12 | 12.5 | 91.5/91 | 1500 | 120 | A |
| QSQ150-270S28NNM | 200 to 400 | 28 | 5.4 | 89.5/89 | 1000 | 150 | A |
| QSQ250A-270S05NNM | 180 to 425 | 5 | 50 | 90.5/90 | 10000 | 100 | B |
| QSQ300A-270S12NNM | 180 to 425 | 12 | 25 | 92/92 | 10000 | 100 | B |
| QSQ350A-270S24NNM | 180 to 425 | 24 | 14.6 | 92.5 /93 | 10000 | 180 | B |
| QSQ350A-270S28NNM | 180 to 425 | 28 | 12.5 | 93.5/93.5 | 10000 | 180 | B |
| QSQ350A-270S48NNM | 180 to 425 | 48 | 7.3 | 94/94 | 8000 | 200 | B |
Technical Data — QSQ150 / 350A-270
| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 180 | 270 | 425 | V | QSQ350A series |
| Input voltage range | Room, High, Low | 200 | 270 | 400 | V | QSQ150 series |
| Input voltage transient | Room | — | — | 450 | V | QSQ350A series, t=100ms, full load |
| Input voltage transient | Room | — | — | 425 | V | QSQ150 series, t=100ms, full load |
| No-load input current a | Room, High, Low | — | 20 | — | mA | no load |

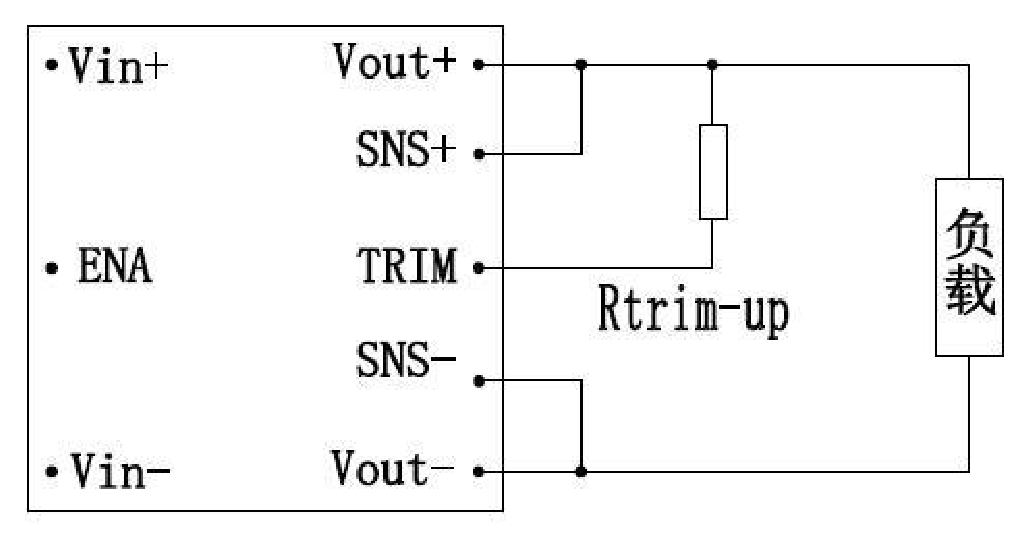

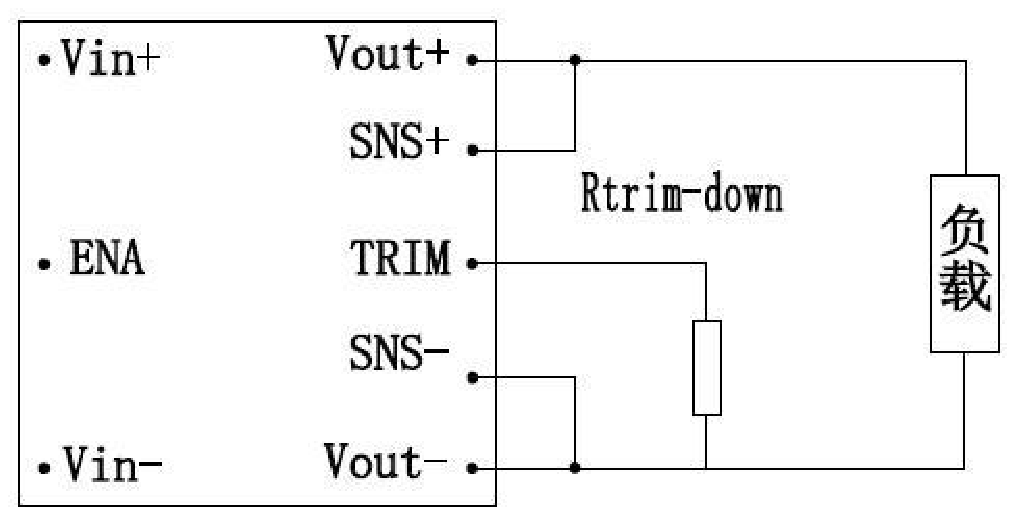

| Output voltage adjustment range | Room, High, Low | 80 | — | 110 | % | IO≤ maximum value and PO≤VO×IOmax |
| Line regulation | Room | -1 | — | +1 | % | full input-voltage range, full load |
| Load regulation | Room | -1 | — | +1 | % | rated input voltage, full load range |
| Turn-on delay a | Room | — | 50 | 100 | ms | time from power-on until output voltage reaches 10% time |

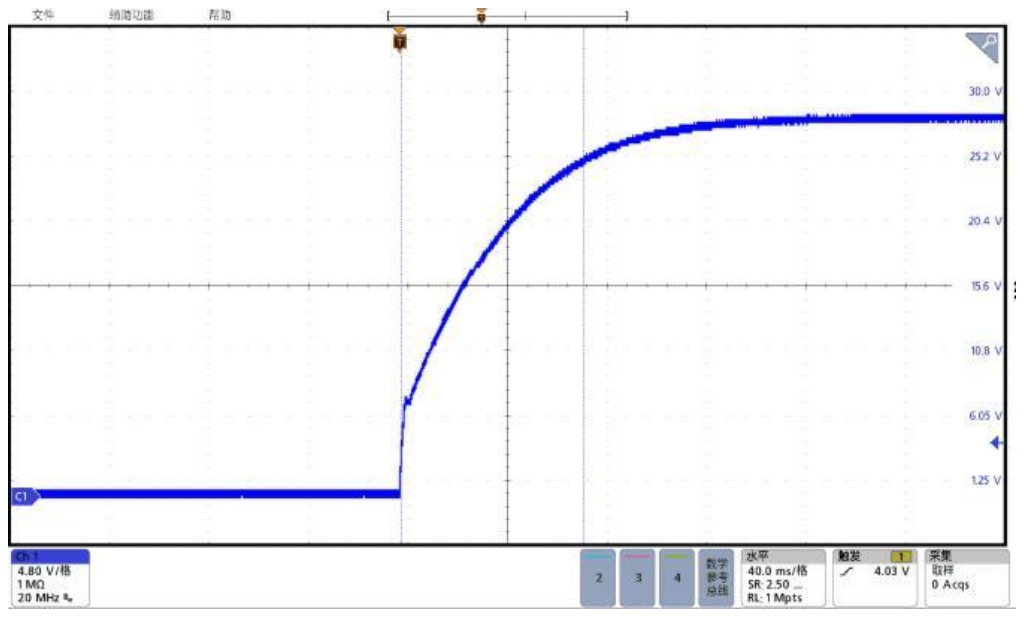

| Output voltage rise time a | Room | — | 75 | 140 | ms | output voltage from 10% rises to 90% time |
| ENA Turn-on delay a | Room | — | 40 | 100 | ms | time from enable assertion until output voltage reaches 10% time |
| Enable logic level (negative logic) | Room | 3.5 | — | 12 | V | no output when open or high, see the application guide for control methods |
| Enable logic level (negative logic) | Room | 0 | — | 0.7 | V | output enabled when grounded or low, see the application guide for control methods |
| Input undervoltage protection | Room | 150 | — | 178 | V | QSQ350A series, half load |
| Input undervoltage protection | Room | 170 | — | 198 | V | QSQ150 series, half load |
| Turn-on/turn-off overshoot | Room | -5 | — | +5 | % | full load |
| Output overvoltage protection | Room | 115 | 120 | 150 | %VO | hiccup mode, automatic recovery after overvoltage removal |
| Output overcurrent protection | Room | 115 | 120 | — | %IO | constant-current mode, automatic recovery after overcurrent removal |
| Output short-circuit protection | Room | — | — | — | — | constant-current mode, automatic recovery after removal of the short circuit |
| Isolation withstand voltage | Room | - | no breakdown, no flashover; input to output, 2250Vdc/60s/<3.5mA | |||
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input, output, between each pair of terminals and case |
| Switching frequency | Room | — | 300 | — | kHz | |
| Weight | / | — | 88 | — | g |

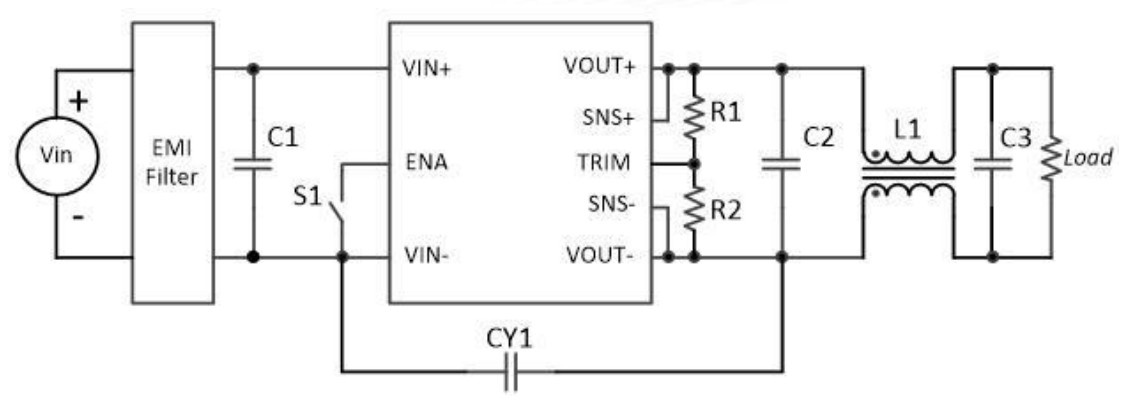

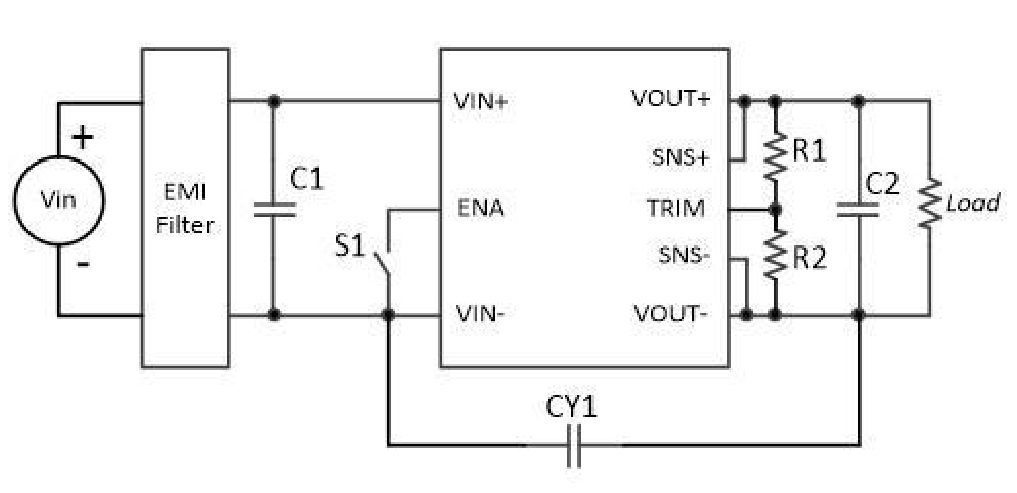

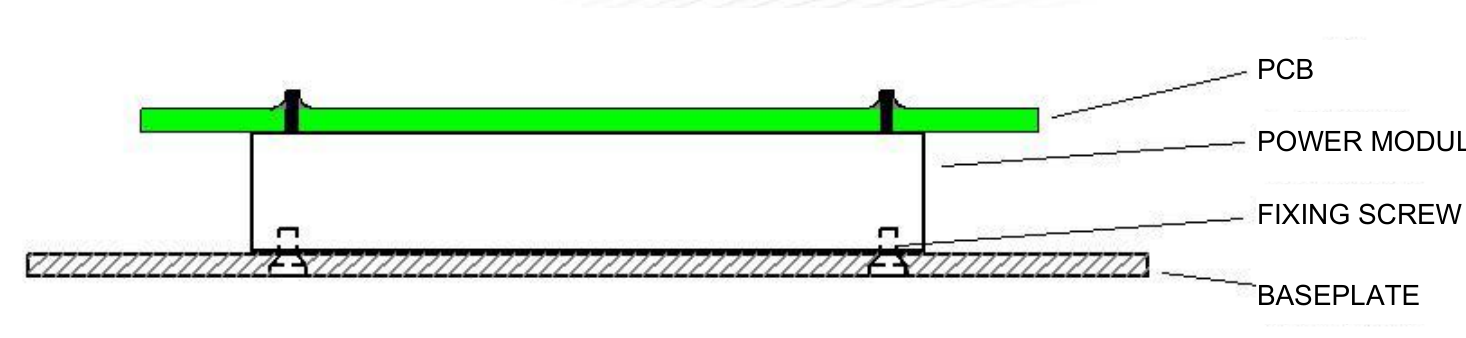

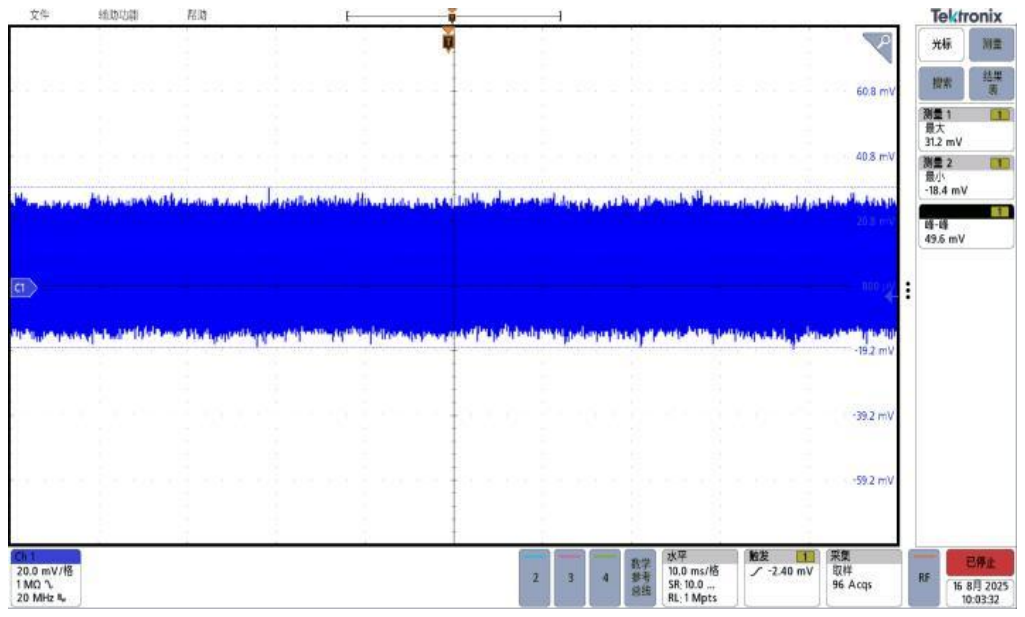

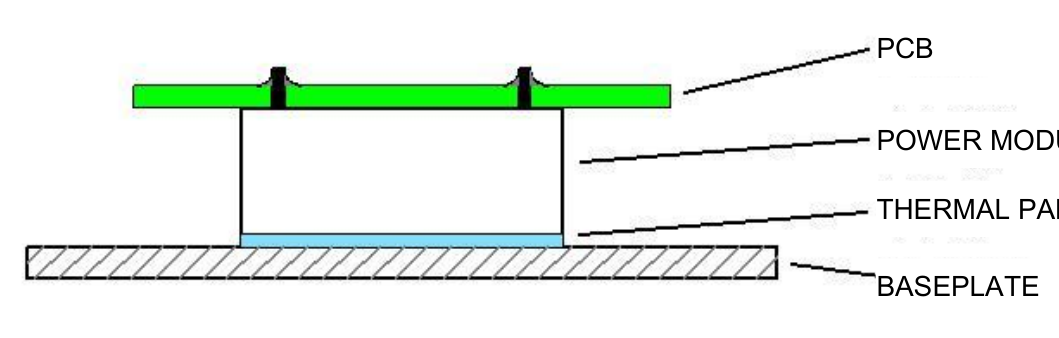

Note: 1, for other temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method; 4, QSQ150 series case mounting holes are threaded (blind hole), QSQ*A series case mounting holes are threaded through-holes.
a: typical model CSQ350A-270S28NNM parameter values, values may differ for other models, contact technical support for details.

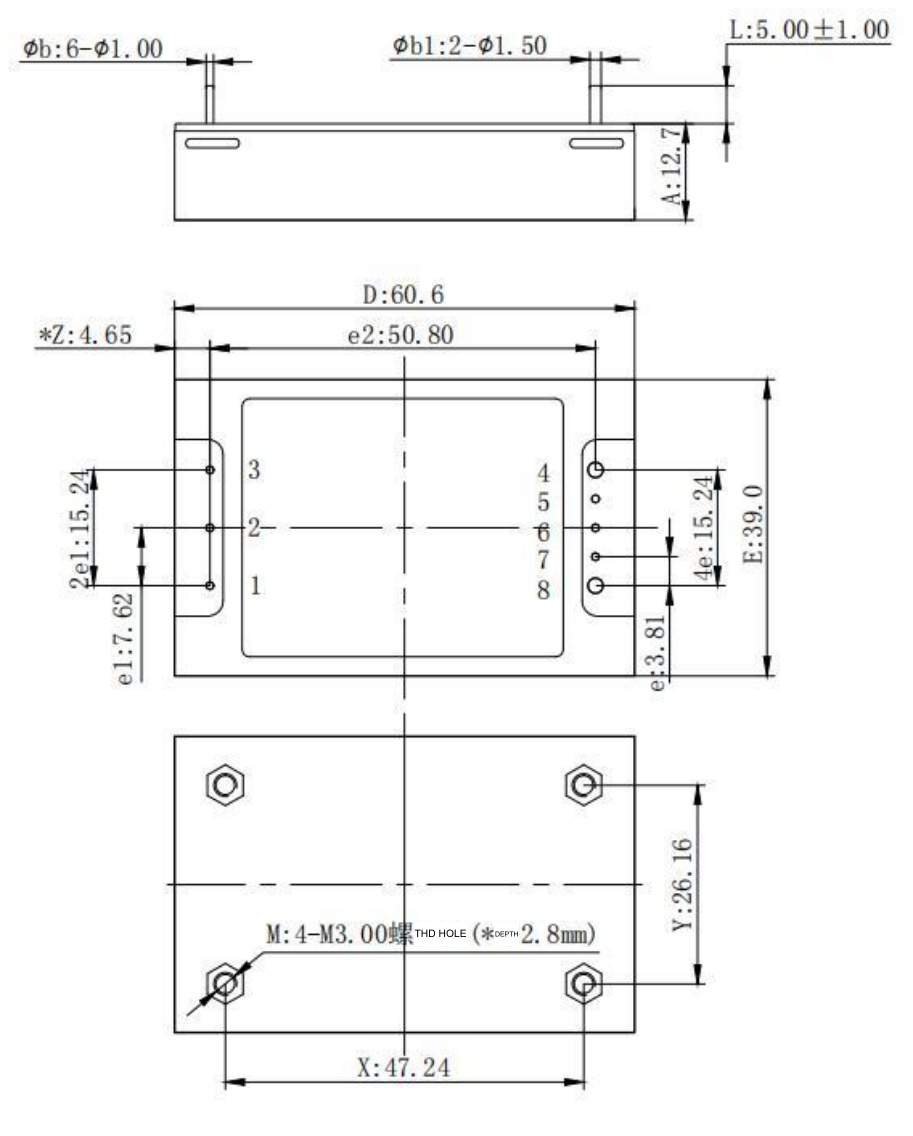

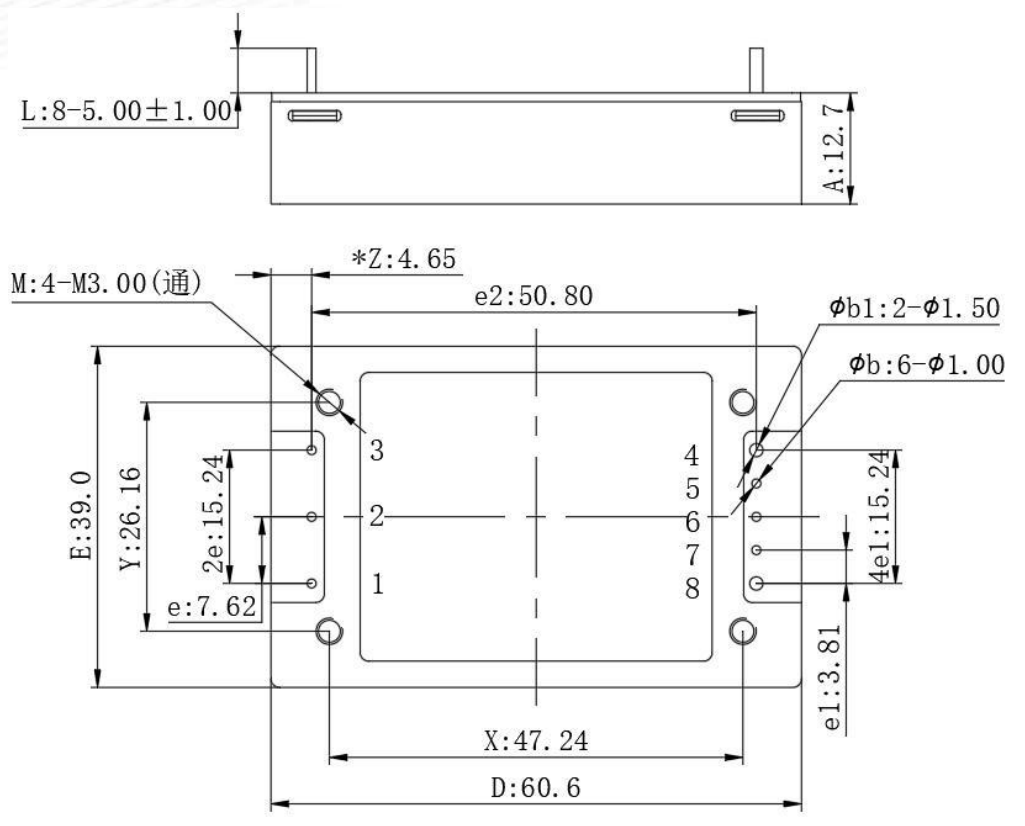

mechanical dimensions conform to GB/T 15138-94 requirements (Unit mm), for dimensions without a stated tolerance, the notation is X.X format, the dimensional tolerance is ±0.50mm; dimensions specified in X.XX format, the dimensional tolerance is ±0.25mm. marked in the drawing "*" dimensions are controlled by the manufacturing process.
Outline & Mechanical Dimensions
