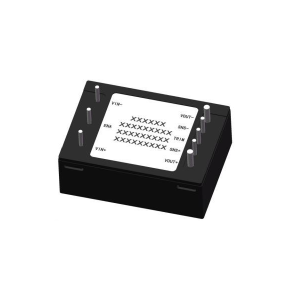

Power modules - QSS50-270
The QSS50-270 power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 50W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- DC/DC isolated conversion
- Maximum output power: 50W
- Input undervoltage protection
- Output overvoltage, overcurrent, short circuit, Overtemperature protection
- Operating temperature (TC): -55°C to 105°C
- Storage temperature: -55°C to 125°C
Product Selection

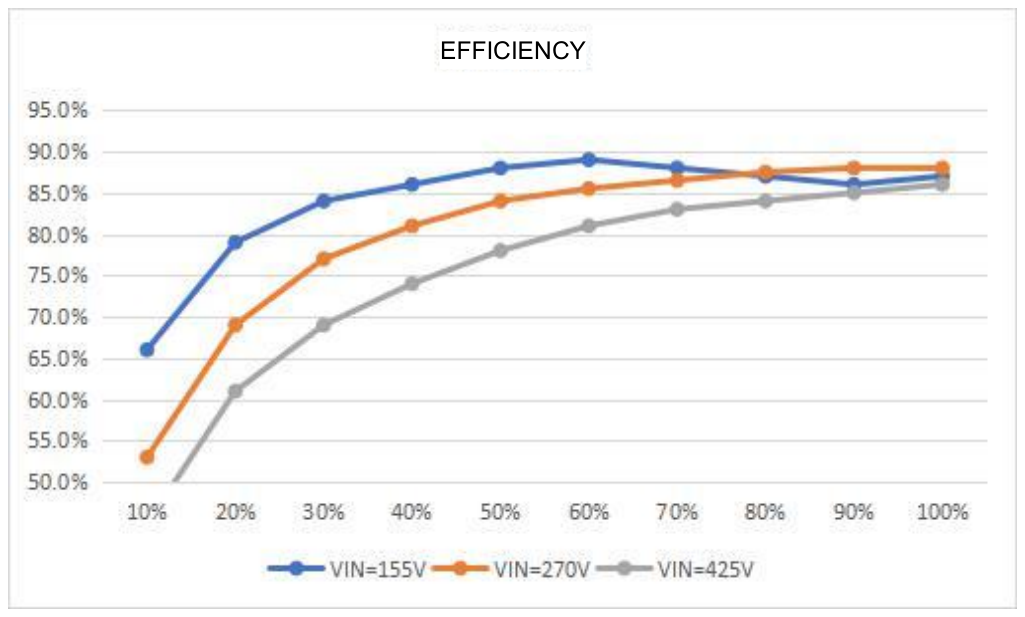

| Model | Input voltage (V) | Output voltage (V) | Output current (A) | Efficiency (%) Typical | Capacitive load (µF) max. | Ripple (mV) Typical |
|---|---|---|---|---|---|---|
| QSS50-270S05SNMa | 200 to 400 | 5 | 10.0 | 87.0 | 4700 | 100 |
| QSS50-270S12SNMa | 200 to 400 | 12 | 4.17 | 88.0 | 1500 | 120 |
| QSS50-270S28SNM | 200 to 400 | 28 | 1.79 | 87.0 | 470 | 200 |
Technical Data — QSS50-270
| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 200 | 270 | 425 | V | see the product selection table |
| Input surge voltage | Room | — | — | 450 | V | Vt=100mS, full load |
| No-load power consumption | Room | — | 4.5 | — | W | nominal input voltage, no output load |

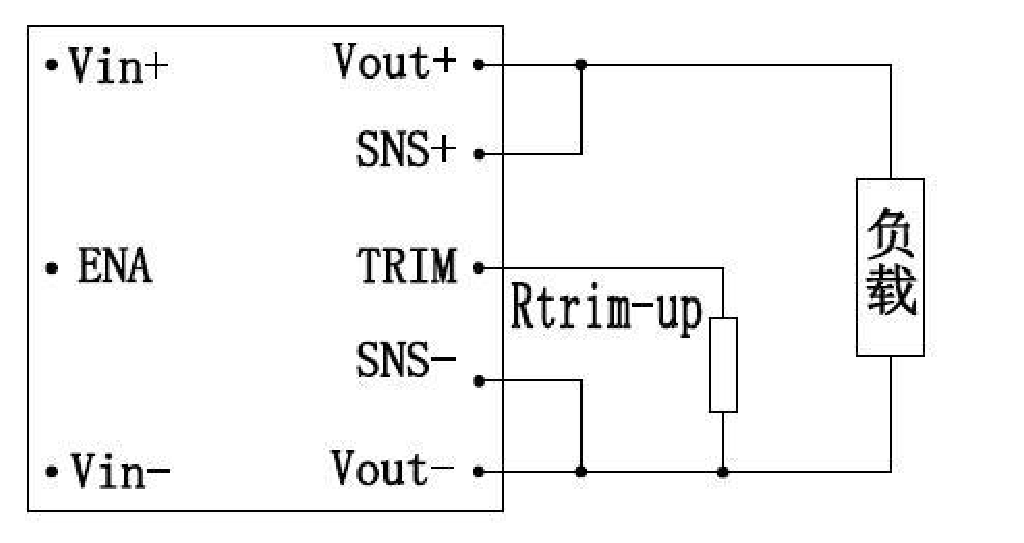

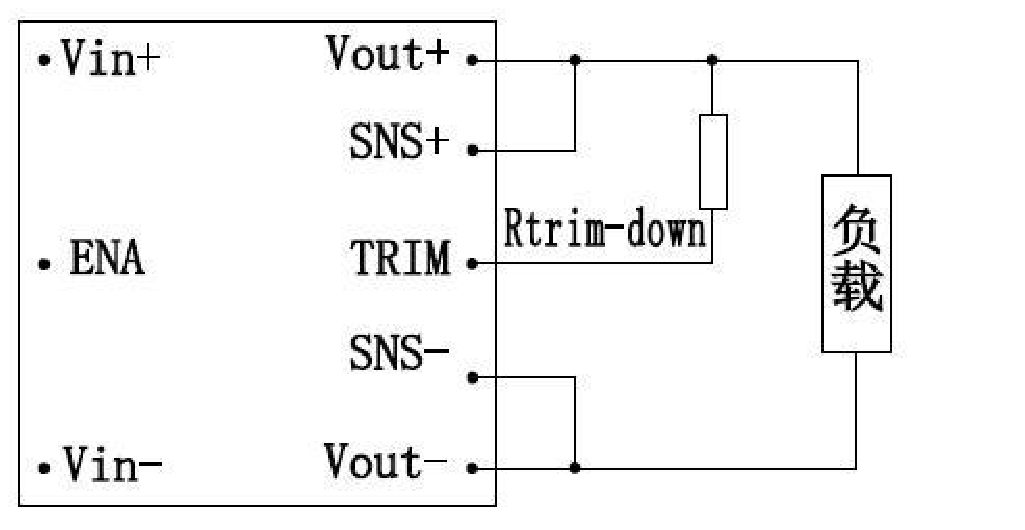

| Output voltage adjustment range | Room, High, Low | 90 | — | 110 | %Vo | Io≤ maximum value and Po≤Vo×Iomax; |
| Line regulation | Room, High, Low | -1 | — | +1 | %Vo | full input-voltage range, full load |
| Load regulation | Room, High, Low | -1 | — | +1 | %Vo | full load range |
| Turn-on delay a | Room | — | 28 | 100 | ms | time from power-on until output voltage reaches 10% time |

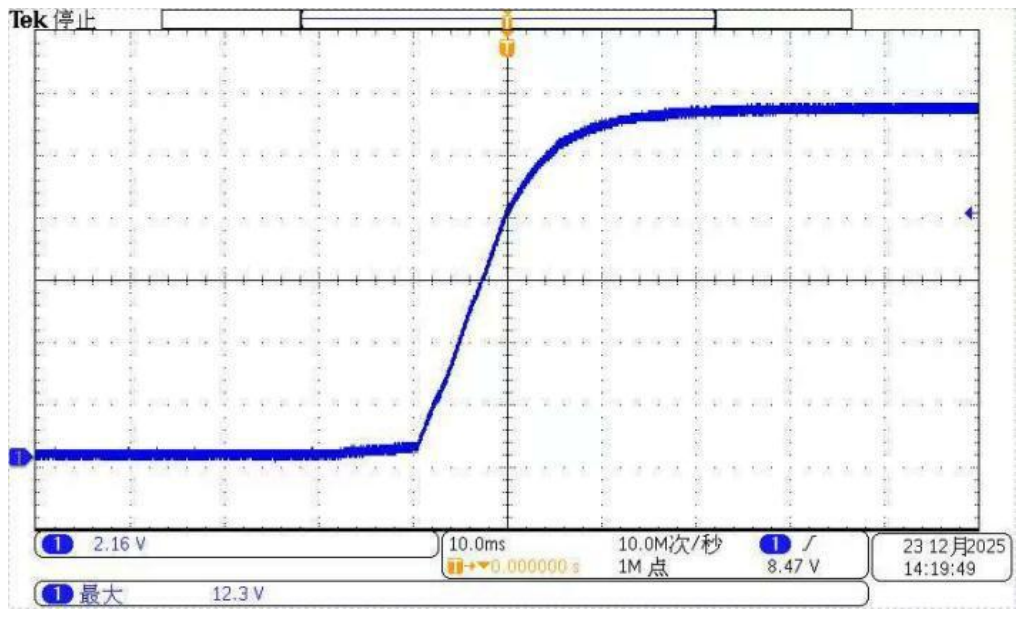

| Output voltage rise time a | Room | — | 15 | 50 | ms | output voltage from 10% rises to 90% time |
| ENA Turn-on delay a | Room | — | 20 | 100 | ms | time from enable assertion until output voltage reaches 10% time |

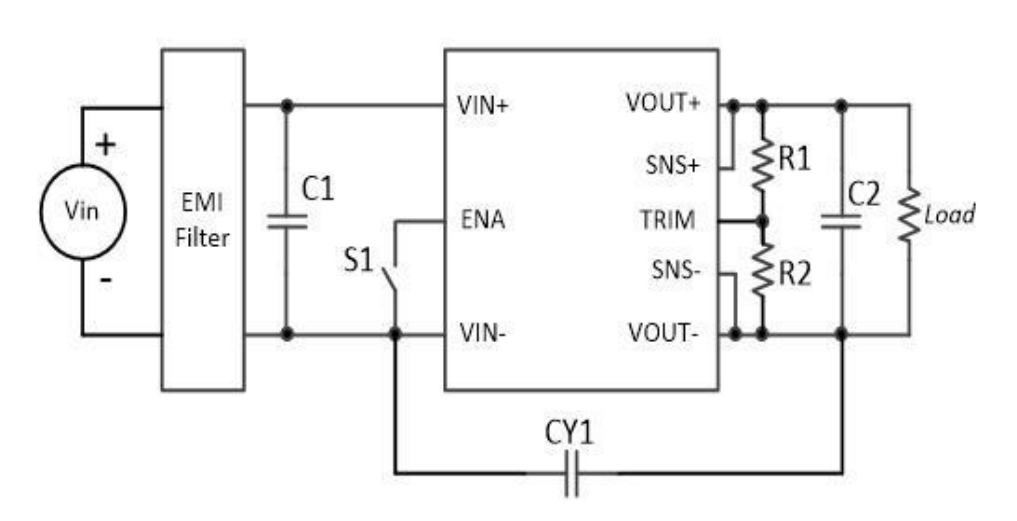

| Enable logic level (positive logic) | Room | 0 | — | 0.7 | V | no output, see the application guide for control methods |
| Enable logic level (positive logic) | Room | 3.5 | — | 15.0 | V | output enabled when open or high, see the application guide for control methods |
| Enable logic level (negative logic) | Room | 0 | — | 0.7 | V | output enabled, see the application guide for control methods |
| Enable logic level (negative logic) | Room | 3.5 | — | 15.0 | V | no output when open or high, see the application guide for control methods |
| Input undervoltage protection | Room | 140 | — | 160 | V | half load |
| Input undervoltage recovery | Room | 160 | — | 180 | V | half load |
| Output overcurrent protection | Room | 105 | 120 | — | %Io | hiccup mode, automatic recovery after fault removal |
| Output short-circuit protection | Room | — | — | — | — | hiccup mode, automatic recovery after fault removal |
| Output overvoltage protection | Room | 110 | 130 | 135 | %Vo | half output load, clamping mode, automatic recovery |
| overtemperature protection | — | 108 | — | 125 | °C | temperature at the center of the heat-transfer surface |
| Isolation withstand voltage | Room | - | no breakdown, no flashover; input to output, 2250Vdc/60s/<3.5mA | |||
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input, output, between each pair of terminals and case |
| Switching frequency | Room | — | 160 | — | kHz | |
| Weight | / | — | 45 | — | g |

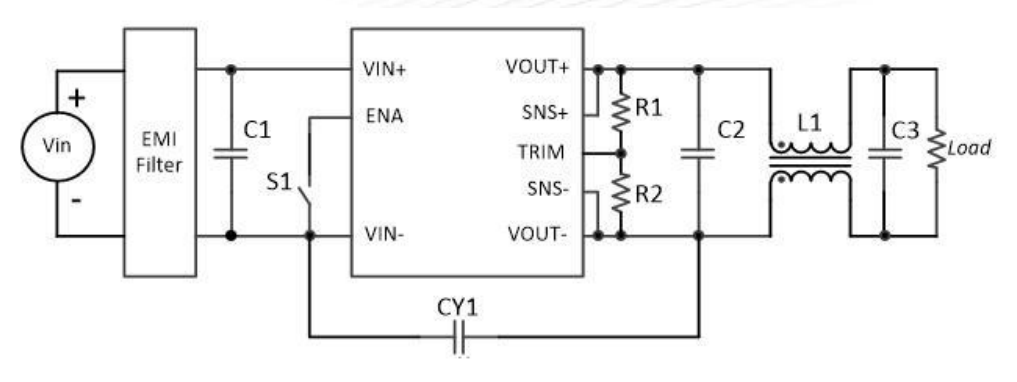

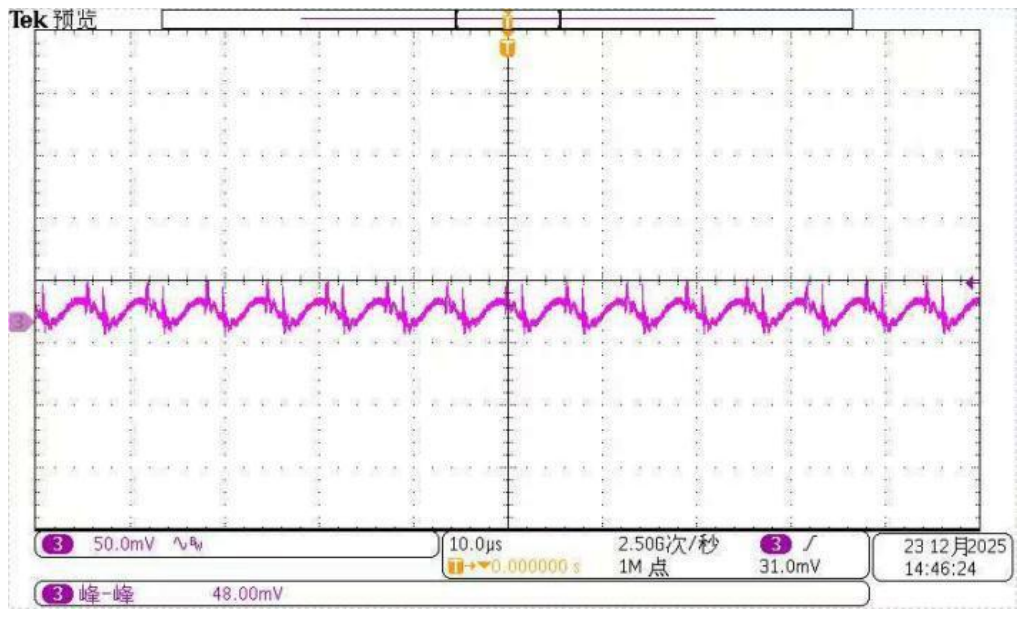

Note: 1, for other temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method; 4, "a" the interval between power-off and the next power-on must exceed 3s.
a: typical model QSS50-270S12SNM parameter values, values may differ for other models, contact technical support for details.

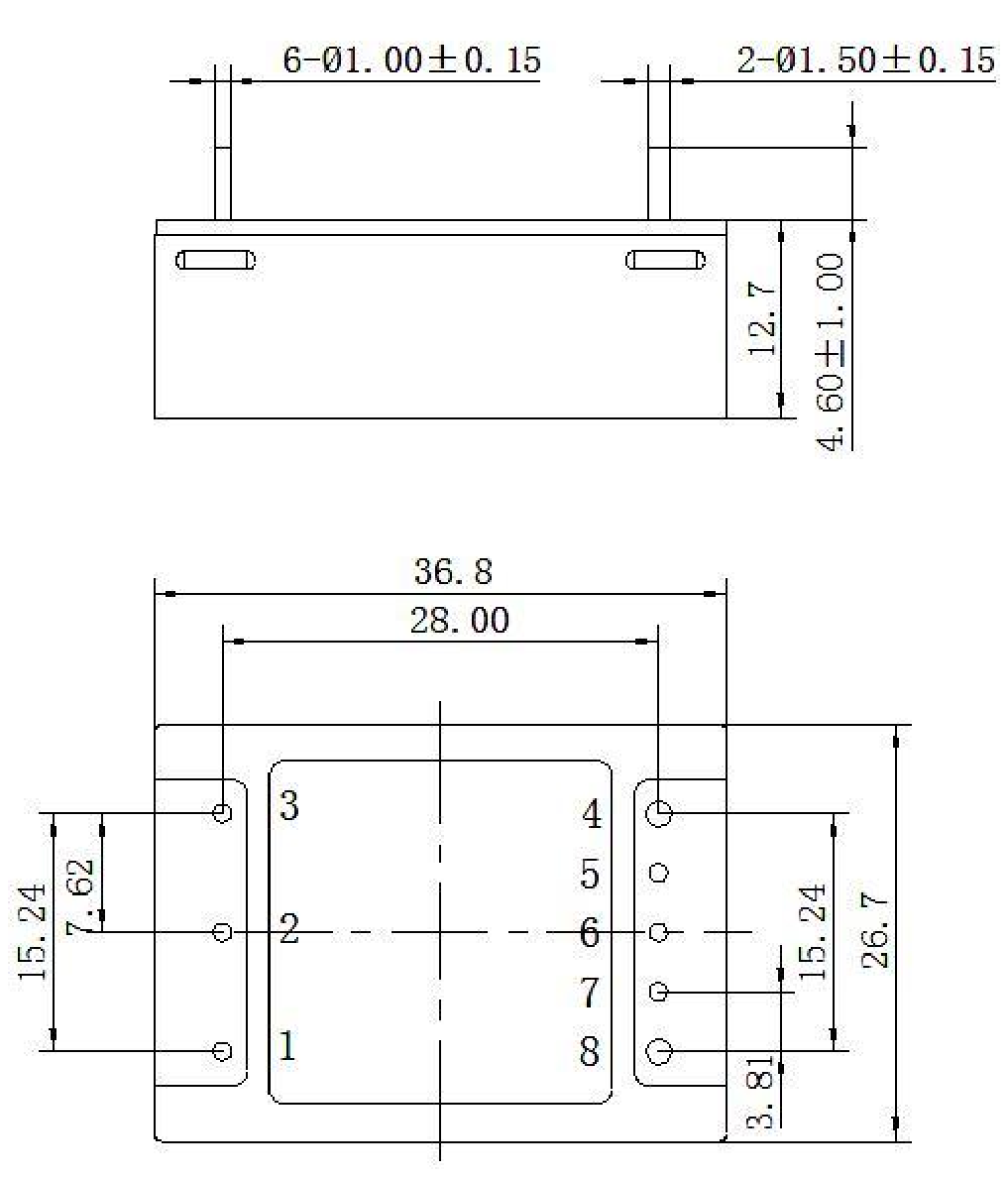

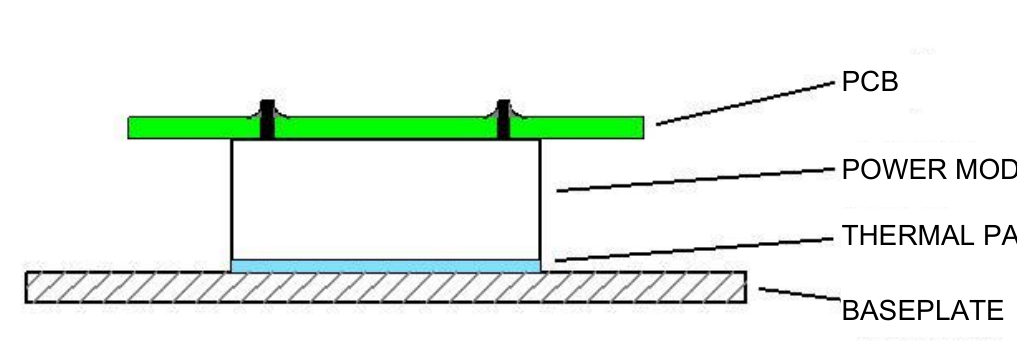

Outline & Mechanical Dimensions
