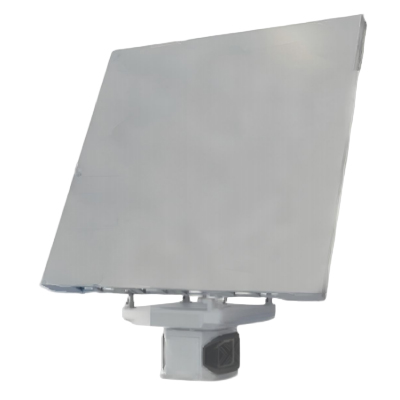

S-band Dual-polarization Active Phased Array Weather Radar

ODSPA0152

S-band Dual-polarization Active Phased Array Weather Radar

Property

Value

Radar Architectur

Active Phased Array

Detection Rang

>= 230km

Operating Frequency Rang

2.7~3.0GHz

Peak Transmit Power

>= 760000W

Range resolution

<= 50m

Maximum Number Of Beams

>= 32

Operating Mod

Dual-polarized 1D electronic scanning Quantitative

Scanning Elevation Angl

-2~60°

First Sidelobe Level

<= -35dB

Antenna Gain

>= 44dB

Minimum Beamwidth

<= 1°

Fastest scan tim

<= 60s

Cross-Polarization Isolation

>= 35dB

Features

Dual-polarized active phased array antenna

Supports multi-beam scanning

All-solid-state transmitter unit

Low sidelobe

High Polarization Isolation

Auto-calibration

Long detection range

Minimal impact from rain attenuation

Severe Weather Alert

3D Wind Field Detection for Storms

Aviation Meteorological Observation

Next-generation weather radar for weather radar backbone networks

High-Resolution Precision Weather Detection

Applications

The system offers long detection range, low sidelobe levels, and high resolution, making it suitable for hazardous weather early warning, 3D wind field detection, and aviation meteorological monitoring.
