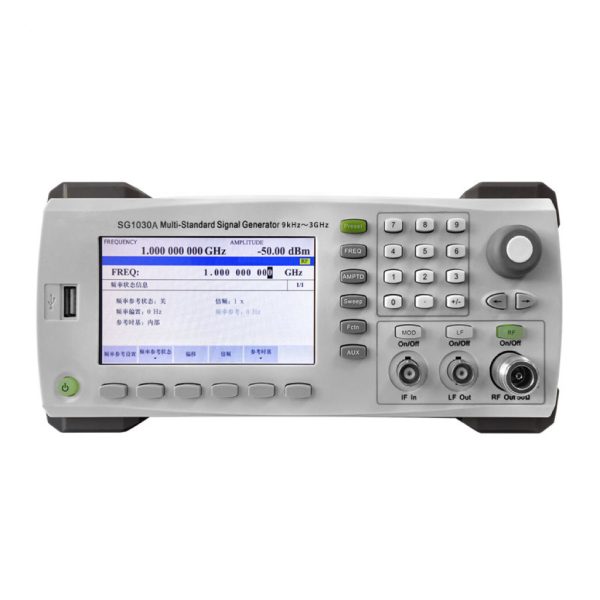

SG1030B Multi-standard Signal GeneratorThe frequency range from 9kHz to 3.0GHz
$7050
The SG1030B is a high-performance portable RF signal generator. It provides comprehensive modulation solutions such as：continue-wave, pulse modulation and standard AM/FM/ФM analog modulation. frequency and amplitude sweep. In addition. to meet the demands of production secondary development. The SG821 equipped with LAN and USB interfaces. and provides standard SCPI command.
- Description
Description
|
Spectrum Analyzer |
|
|
SG1030B Multi-standard Signal Generator |
|
|
SG1030B |
|
|
The SG1030B is a high-performance portable RF signal generator. It provides comprehensive modulation solutions such as：continue-wave, pulse modulation and standard AM/FM/ФM analog modulation. frequency and amplitude sweep. In addition. to meet the demands of production secondary development. The SG821 equipped with LAN and USB interfaces. and provides standard SCPI command. |
|
|
Property |
Value |
|
Frequency Range |
9kHz to 3.0GHz |
|
Setting range |
9kHz-50kHz:-120dBm-0dBm |
|
SSB phase noise(@ 10KHz , f= 1GHz) |
≤ – 93d Bc/Hz |
|
Display |
4 . 3 “ |
|
Model Type |
Portable |
|
Power |
AC |
|
Dimensions |
238mmx103mmx350mm |
|
Features |
|
|
Pure Continuous Wave output |
|
|
Standard analog modulation: AM/FM/ФM |
|
|
General digital modulation:ASK/FSK/PSK/QAM , built-in IQ modulator(Model-B) |
|
|
Applications |
|
|
Primarily utilized in the electronic communications industry and microwave electronic measurement sectors, it is also well-suited for educational and research purposes, product development, manufacturing, maintenance. and other related scenarios. |
|
|
|
|
|
|
|
Analog Modulation
AM/FM/ФM, Customizable modulation(SSB/DSB/CW)
Digital Modulation: ASKFSK/PSK/OAM built-in IQ modulator(Model-B)
Linear Frequency Modulation
Linear frequency modulation can simultaneously retain thecharacteristics of continuous signals and pulses.
Low Frequency Output
low-frequency output: sine waves, square waves, triangular waves,and sawtooth waves
Pulse Modulation
Pulse modulation with minimum pulse width of 100ns, supporting Internal/External pulse modulation input, External trigger input
Pure Continuous Wave
Outputting signals at various frequencies and amplitudes. Output dynamic range ofup to 130 dBm.
RF Up-conversion
Input frequency range:190+30MHz,Output frequency range:201MHz~3 .0GHz
Step Sweep Signal
The signal generator is capable of generating sweep signals withequal steps, including three sweep modes: frequency sweep,amplitude sweep, and frequency + amplitude sweep.Sweep type:Step sweep,List sweep
