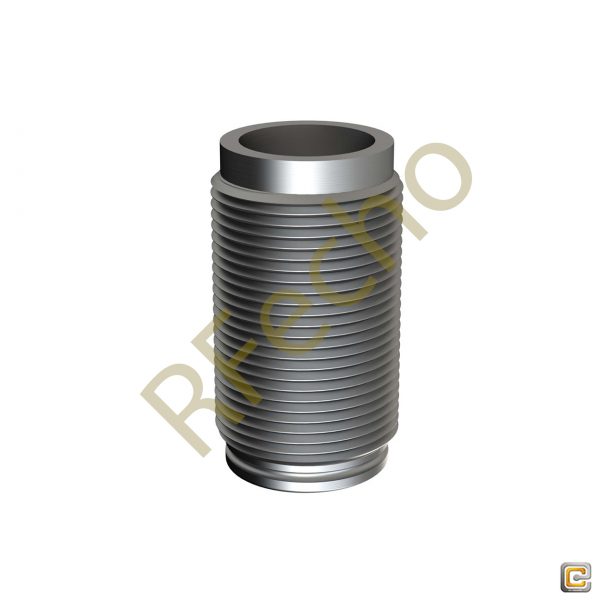

SMA 27 GHz, 0.018″ Accept Pin Diameter, Short Thread-In Female Connector

Model D550-P18-Y01 is a Female connector. SMA Connector utilizes the basic PTFE dielectric interface and features low nd less than -100 dB RF leakage.The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.

SMA Connector offers the frequency range from DC to 27 GHz. SMA Connector has Short Thread-In mounting and accept pin diameter is 0.018″inches.

SKU: D550-P18-Y01 Categories: Adapters and Connectors, RF Connector SMA, RF Connectors

Description

SMA Connector

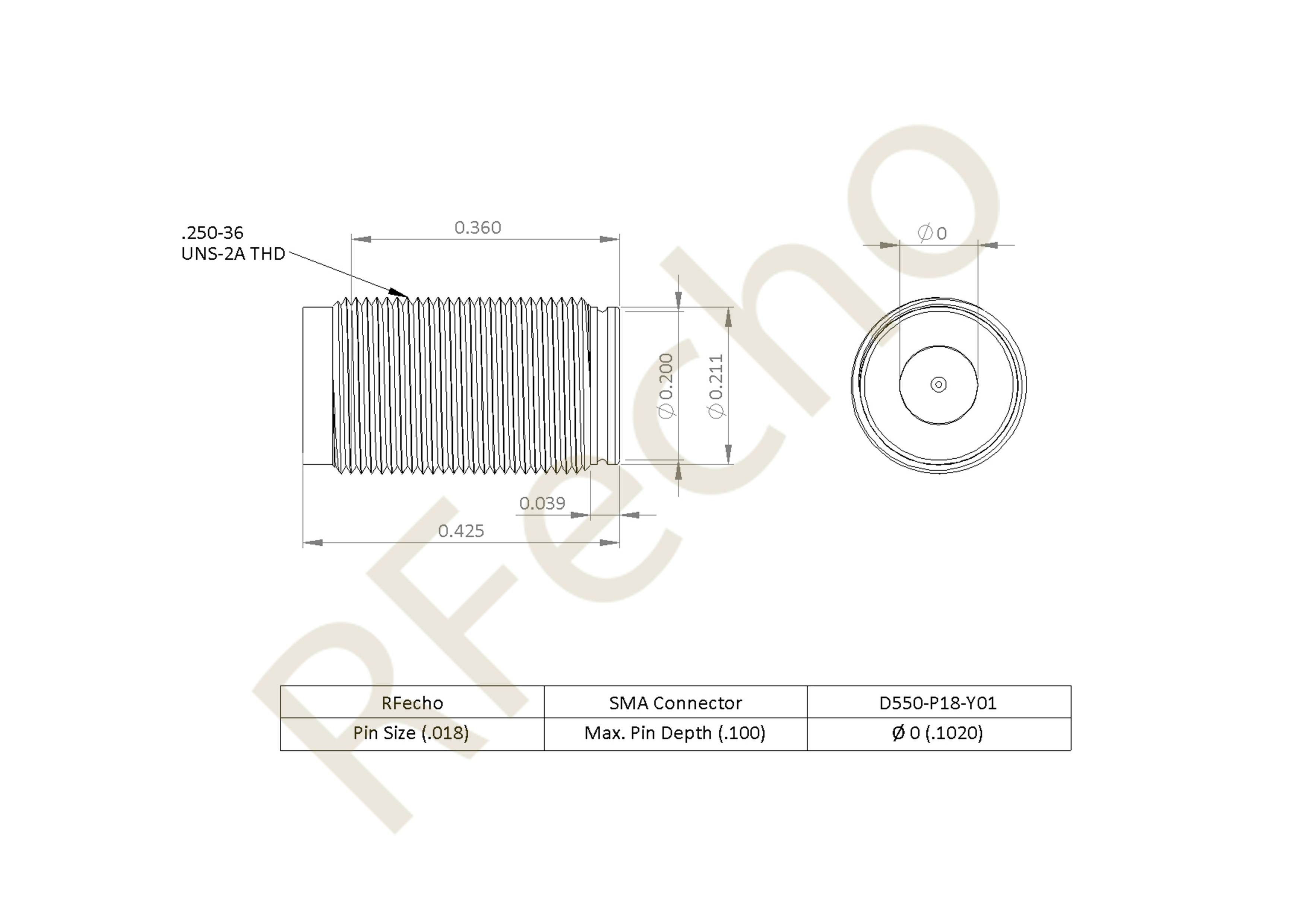

SMA 27 GHz, 0.018″ Accept Pin Diameter, Short Thread-In NA Mounting Flange Female Connector

D550-P18-Y01

Model D550-P18-Y01 is a Female connector. SMA Connector utilizes the basic PTFE dielectric interface and features low nd less than -100 dB RF leakage.The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.

SMA Connector offers the frequency range from DC to 27 GHz. SMA Connector has Short Thread-In mounting and accept pin diameter is 0.018″inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

27

Flange (inch)

NA

Mounting

Short Thread-In

Accept Pin Diameter (inch)

0.018″

Gender

Female

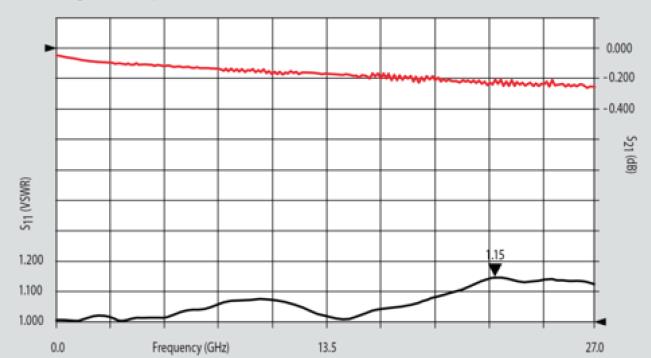

Features

Low VSWR

Free through 27 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

27

Flange (inch)

NA

Mounting

Short Thread-In

Accept Pin Diameter (inch)

0.018″

Gender

Female
