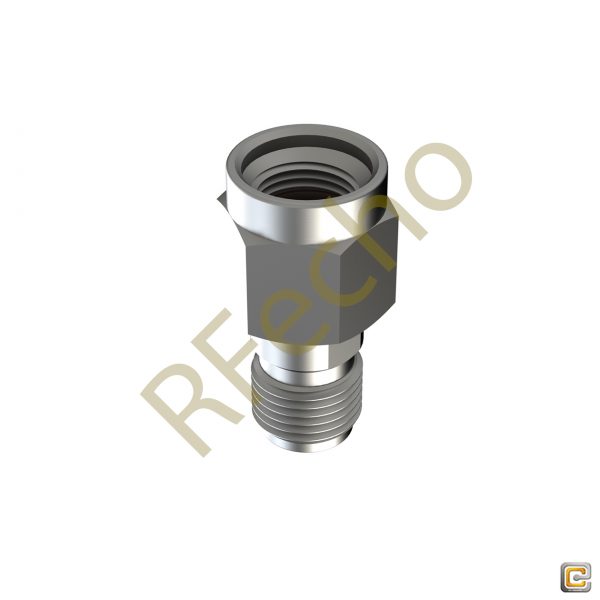

SSMA 36 GHz, 0.012″ Accept Pin Diameter, Thread-In Male Connector

SSMA 36 GHz, 0.012″ Accept Pin Diameter, Thread-In Male Connector

This Model D571-P12-Y02 is a Male Connector utilizes the basic PTFE dielectric interface and features low VSWR mode and less than -100 dB RF leakage. The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.

SSMA Connectors offers the frequency range from DC to 36 GHz. SSMA Connectors have Thread-In mounting. This model of SSMA Connector provides the accept pin diameter of 0.012″ inches.

Description

SPEC

SSMA Connector

SSMA 36 GHz, 0.012″ Accept Pin Diameter, Thread-In NA Mounting Flange Male Connector

D571-P12-Y02

This Model D571-P12-Y02 is a Male Connector utilizes the basic PTFE dielectric interface and features low VSWR mode and less than -100 dB RF leakage. The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.

SSMA Connectors offers the frequency range from DC to 36 GHz. SSMA Connectors have Thread-In mounting. This model of SSMA Connector provides the accept pin diameter of 0.012″ inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

36

Flange (inch)

NA

Mounting

Thread-In

Accept Pin Diameter (inch)

0.012″

Gender

Male

Features

Low VSWR

Free through 36 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

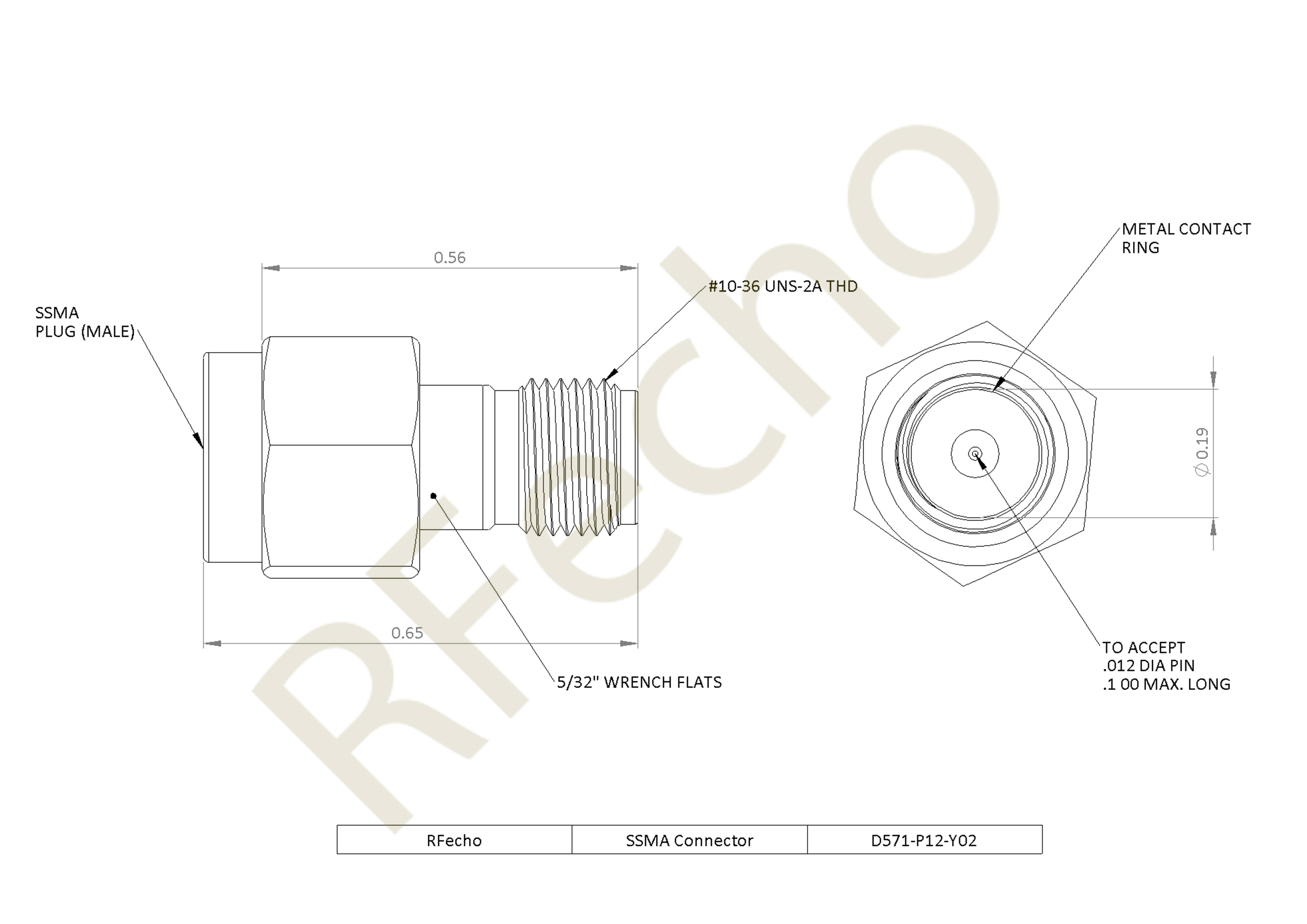

Outline

D571 P12 Y02 outline SSMA 36 GHz, 0.012" Accept Pin Diameter, Thread-In Male Connector

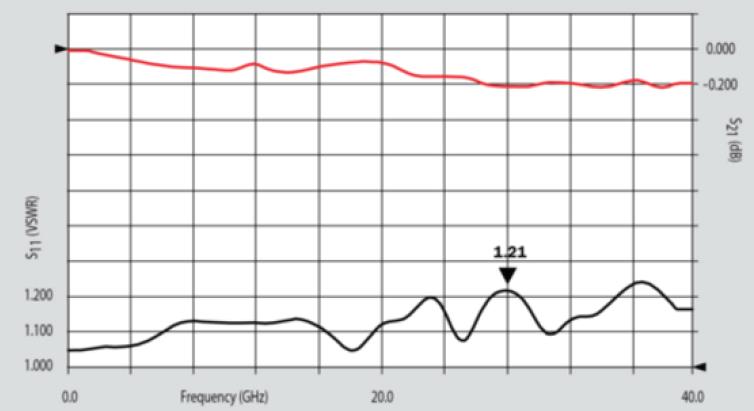

Plot

D571 P12 Y02 plot1 SSMA 36 GHz, 0.012" Accept Pin Diameter, Thread-In Male Connector

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

36

Flange (inch)

Mounting

Accept Pin Diameter (inch)

Gender
