UAV Inducement and Capture System
High-precision navigation spoofing for GPS, GLONASS, BDS, and Galileo signals
Link suppression for 0.9GHz, 2.4GHz, and 5.8GHz remote control and telemetry
Forces target UAVs to land at specific, designated locations
Supports simultaneous emission of three or more interference signals
Highly integrated portable design for rapid field deployment
Small signal output port for external high-power amplifiers and antennas
Automatic target tracking based on external guidance information
Effective navigation spoofing distance exceeding 70km
- Description
- Datasheet
- Reviews (0)
Description

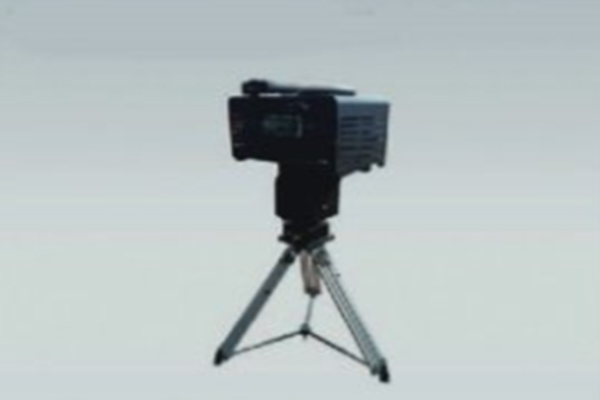

This integrated UAV inducement and capture system features a highly portable design combining navigation spoofing and link suppression. It is specifically designed to neutralize target UAVs by interfering with their navigation and communication links, causing operational failure and allowing for controlled landings at designated locations. The system integrates signal sources, power amplifiers, and antennas into a compact unit for rapid field deployment and retrieval. It is ideal for critical infrastructure protection, including military bases, nuclear plants, and government residential areas.
OC-UAV-ICS |
|
|
UAV Inducement and Capture System |
|
Property |
Value |
|
Power Supply |
220V AC |
|
Operating Temperature |
-15°C to +55°C |
|
Operating Frequency Bands |
GPS/GLONASS/BDS/Galileo Civil, 0.9GHz, 2.4GHz, 5.8GHz |
|
Operating Frequency |
Civilian bands for GPS/GLONASS/BDS/Galileo, 0.9GHz, 2.4GHz, 5.8GHz |
|
Host Dimensions |
≤ 95cm x 50cm x 50cm |
|
Link Suppression Ratio |
>40:1 for 0.9G/2.4G/5.8G remote control signals |
|
Spoofing Distance |
>70km against major satellite navigation systems |
|
Transmit Power (SatNav) |
>10W |
|
Transmit Power (2.4GHz) |
>100W |
|
Transmit Power (5.8GHz) |
>50W |
|
Transmit Power (0.9GHz) |
>100W |
|
Effective Time |
≤ 3s for navigation spoofing |
|
Scanning Range |
0°–360° Horizontal, -20°–+45° Pitch |
|
Main Unit Size |
≤ 95cm x 50cm x 50cm |
|
Maintenance |
MTTR ≤ 1h |
|
Power Input |
220V AC |
|
Storage Temperature |
-25°C to +55°C |
|
Link Suppression Jamming-to-Signal Ratio |
> 40:1 (at 100mW remote control power) |
|
Navigation Spoofing Distance |
> 70km |
|
Satellite Navigation Transmit Power |
> 10W |
|
2.4GHz Transmit Power |
> 100W |
|
5.8GHz Transmit Power |
> 50W |
|
0.9GHz Transmit Power |
> 100W |
|
Spoofing Effective Time |
≤ 3s |
|
Horizontal Coverage |
0° to 360° |
|
Pitch Range |
-20° to +45° |
|
Maintainability (MTTR) |
≤ 1h |
Features |
|
|
High-precision navigation spoofing for GPS, GLONASS, BDS, and Galileo signals |
|
|
Link suppression for 0.9GHz, 2.4GHz, and 5.8GHz remote control and telemetry |
|
|
Forces target UAVs to land at specific, designated locations |
|
|
Supports simultaneous emission of three or more interference signals |
|
|
Highly integrated portable design for rapid field deployment |
|
|
Small signal output port for external high-power amplifiers and antennas |
|
|
Automatic target tracking based on external guidance information |
|
|
Effective navigation spoofing distance exceeding 70km |
|
Applications |
|
|
It is ideal for critical infrastructure protection, including military bases, nuclear plants, and government residential areas. |
|
