Ultra-thin wide-input power modules – QWH30-W24
The QWH30-W24 power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 30W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
Output voltage (V)
Ratings apply to the selected configuration. See the datasheet for test conditions and model designation notes.
Source markers *, a and b are footnotes, not part of the part number. See Technical Data for the corresponding notes.
Request a Quote
- Description
- Technical Data
- Datasheet
- OUTLINE
- Reviews (0)

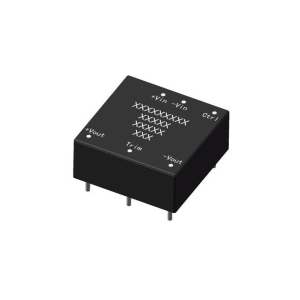

Ultra-thin wide-input power modules - QWH30-W24
The QWH30-W24 power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 30W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- DC/DC isolated conversion
- Maximum output power: 30W
- Input undervoltage protection
- Output overcurrent, short-circuit protection
- Single- and dual-output options
- Operating temperature (Tc): -55°C to +105°C
- Storage temperature: -55°C to 125°C
Product Selection

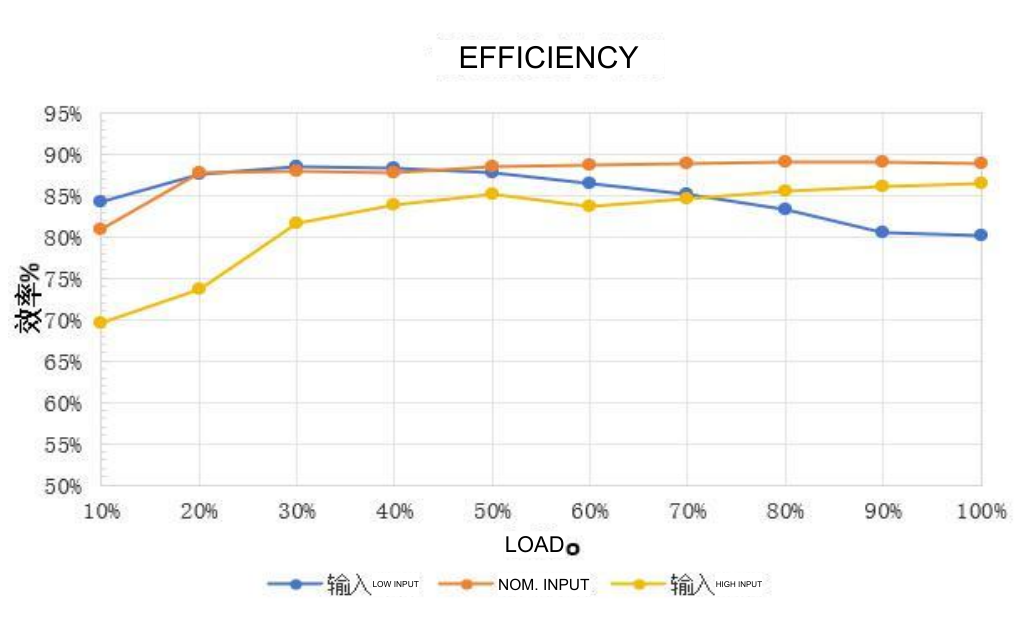

| Model | Input voltage (V) | Output voltage (V) | Output current (A) | Efficiency (%) typical value | Capacitive load (µF) max. | Ripple (mV) Typical |
|---|---|---|---|---|---|---|
| QWH30-W24S05SPM | 9 to 40 | 5 | 6 | 88 | 470 | 50 |
| QWH30-W24S12SPM | 9 to 40 | 12 | 2.5 | 89 | 220 | 80 |
| QWH30-W24S15SPM | 9 to 40 | 15 | 2 | 89 | 220 | 80 |
| QWH30-W24S24SPM | 9 to 40 | 24 | 1.25 | 89 | 220 | 80 |
| QWH30-W24S28SPM | 9 to 40 | 28 | 1.07 | 90 | 220 | 80 |
| QWH20-W24D05SPM* | 9 to 40 | ±5 | ±2 | 86 | 470 | 50 |
| QWH20-W24D12SPM* | 9 to 40 | ±12 | ±0.84 | 87 | 220 | 80 |
| QWH20-W24D15SPM* | 9 to 40 | ±15 | ±0.67 | 87 | 220 | 80 |
Technical Data — QWH30-W24
| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 9 | 24 | 40 | V | full load range |
| Input surge voltage | Room | — | — | 50 | V | Vt=100ms, full load |
| No-load power consumption a | Room | — | 0.18 | — | W | rated input voltage, no output load |
| Line regulation | Room, High, Low | -1 | — | +1 | %VO | full input-voltage range, full load |
| Load regulation | Room, High, Low | -1 | — | +1 | %VO | full load range |

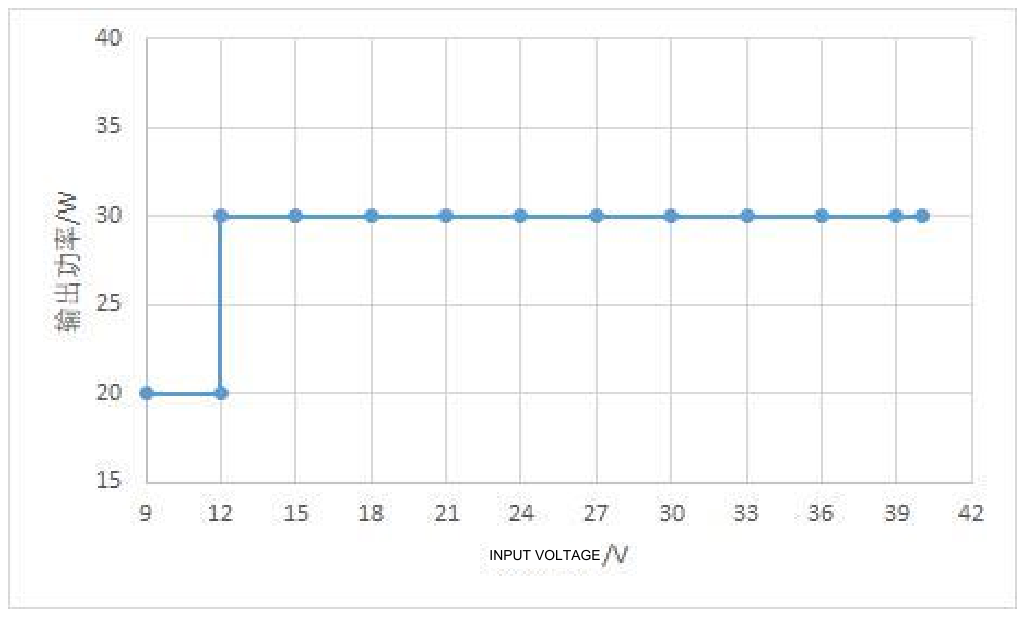

| Output current | Room, High, Low | see the pro duct s electio n table | full input-voltage range (QWH30 series input 12V below Po≤20W) | |||
| Turn-on delay a | Room | — | 4 | 30 | ms | time from power-on until output voltage reaches 10% time |

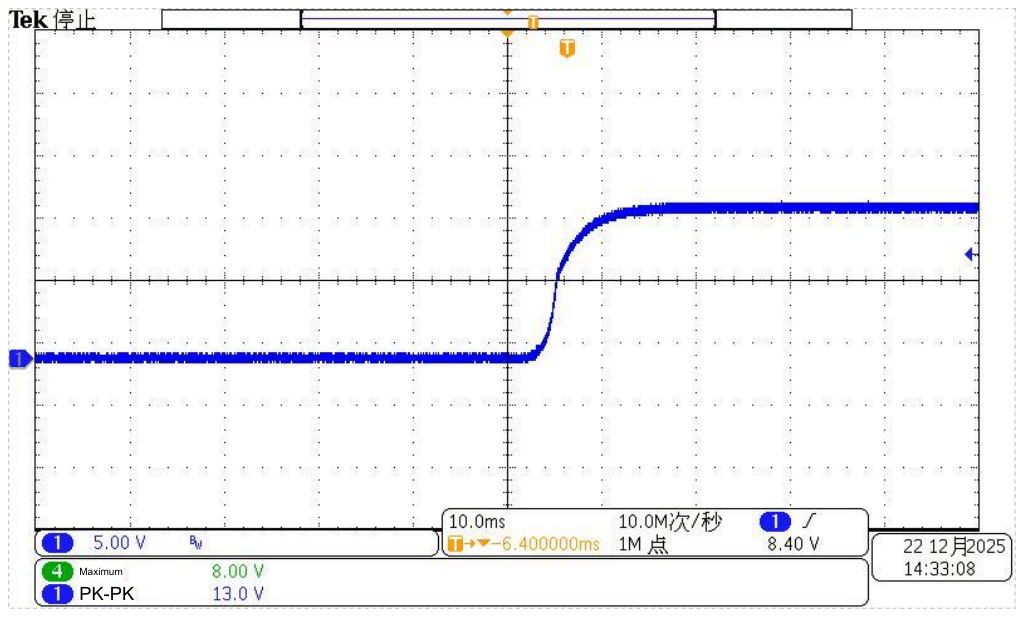

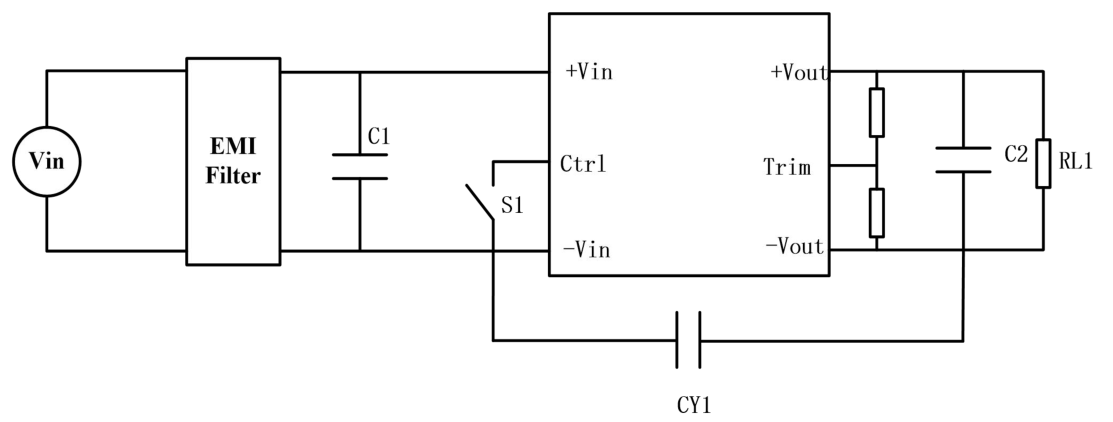

| Output voltage rise time a | Room | — | 6 | 30 | ms | output voltage from 10% rises to 90% time |
| Enable turn-on delay a | Room | — | 3.5 | 30 | ms | time from enable assertion until output voltage reaches 10% time |
| Enable logic level (positive logic) | Room | 0 | — | 0.7 | V | no output when grounded or low, see the application guide for control methods |
| Enable logic level (positive logic) | Room | 3.5 | — | 12 | V | output enabled when high or open, see the application guide for control methods |
| Input undervoltage protection | Room | 6 | — | 8.8 | V | half load |
| Output overcurrent protection | Room | 110 | — | — | %IO | hiccup mode, automatic recovery after overcurrent removal |
| Output short-circuit protection | Room | — | — | — | — | hiccup mode, automatic recovery after removal of the short circuit |

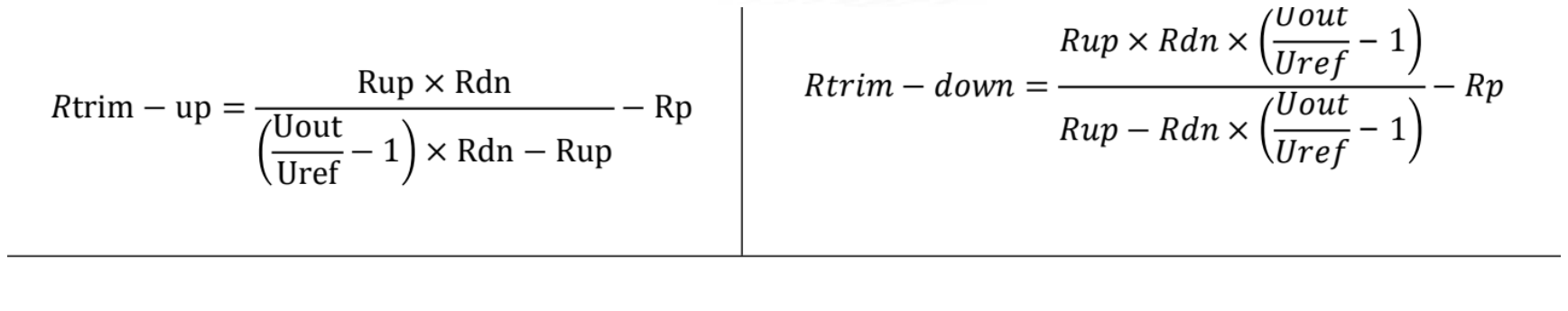

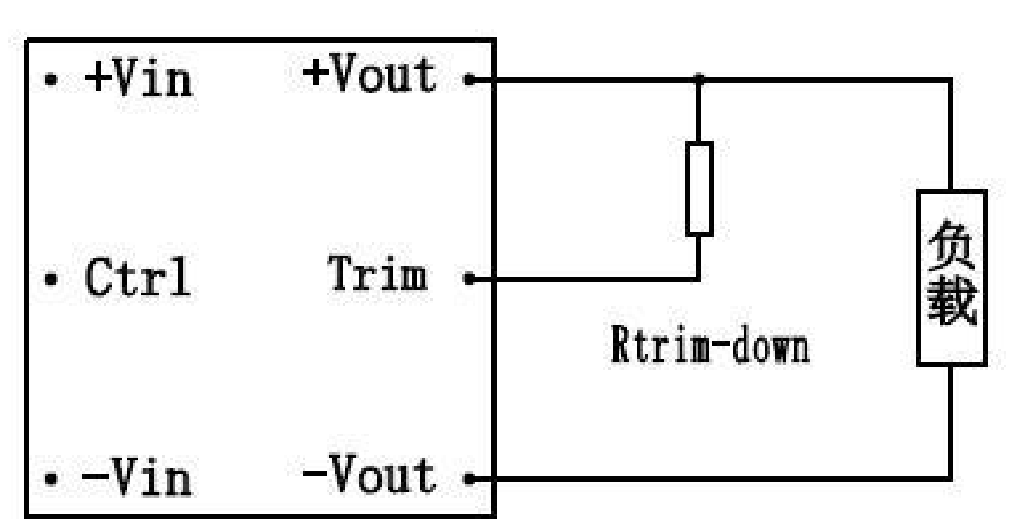

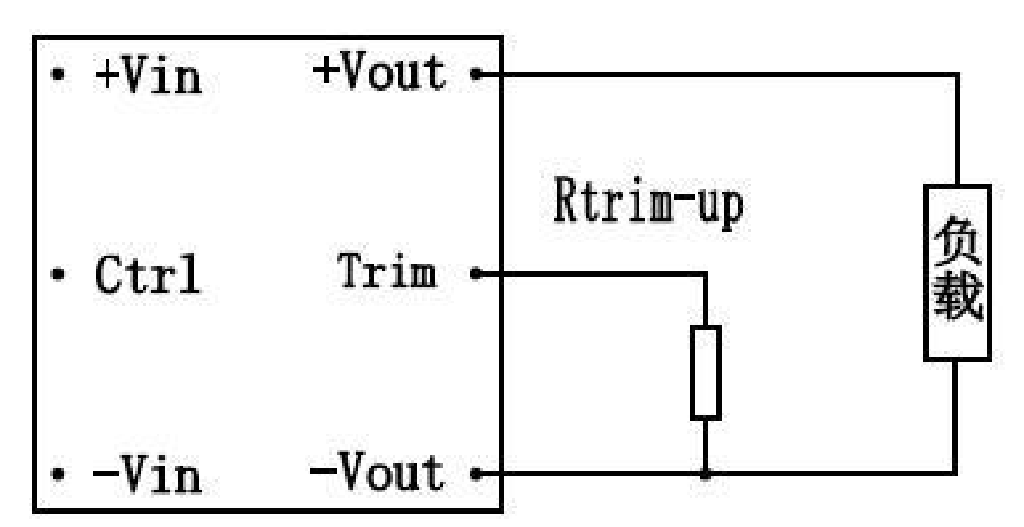

| Output voltage adjustment range | Room, High, Low | 80 | — | 110 | %VO | Io≤ maximum value and Po≤Vo×Iomax, 5V Output trim-down 90% |
| Isolation withstand voltage | Room | - | no breakdown, no flashover; input to output, 1500Vdc/60s/<3.5mA | |||
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input, output, between each pair of terminals and case |
| Switching frequency | Room | — | 500 | — | kHz | 5V Output frequency 370K |
| Weight | / | — | 17 | — | g |

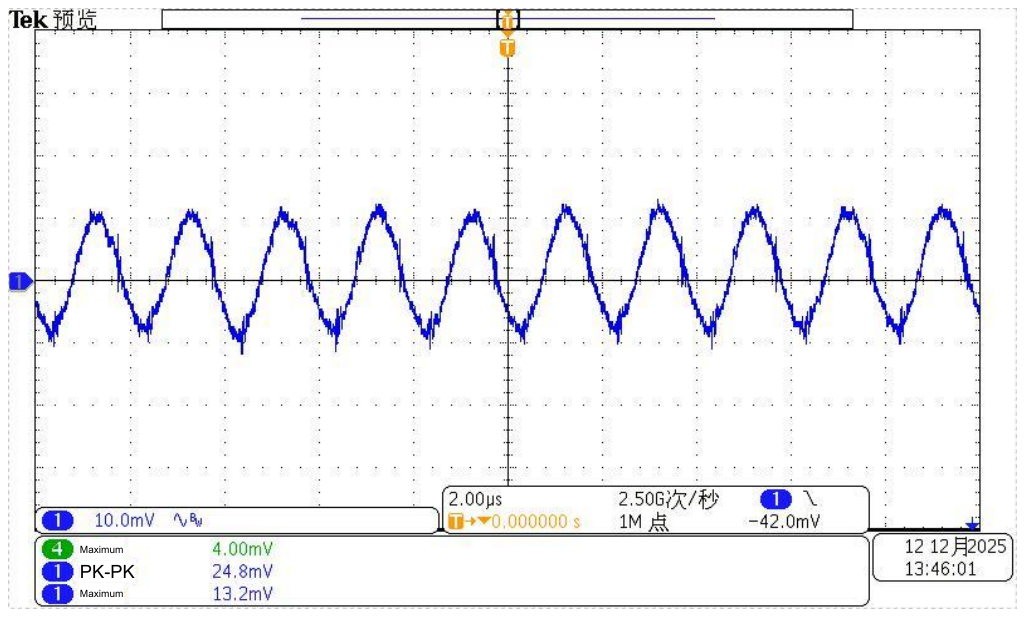

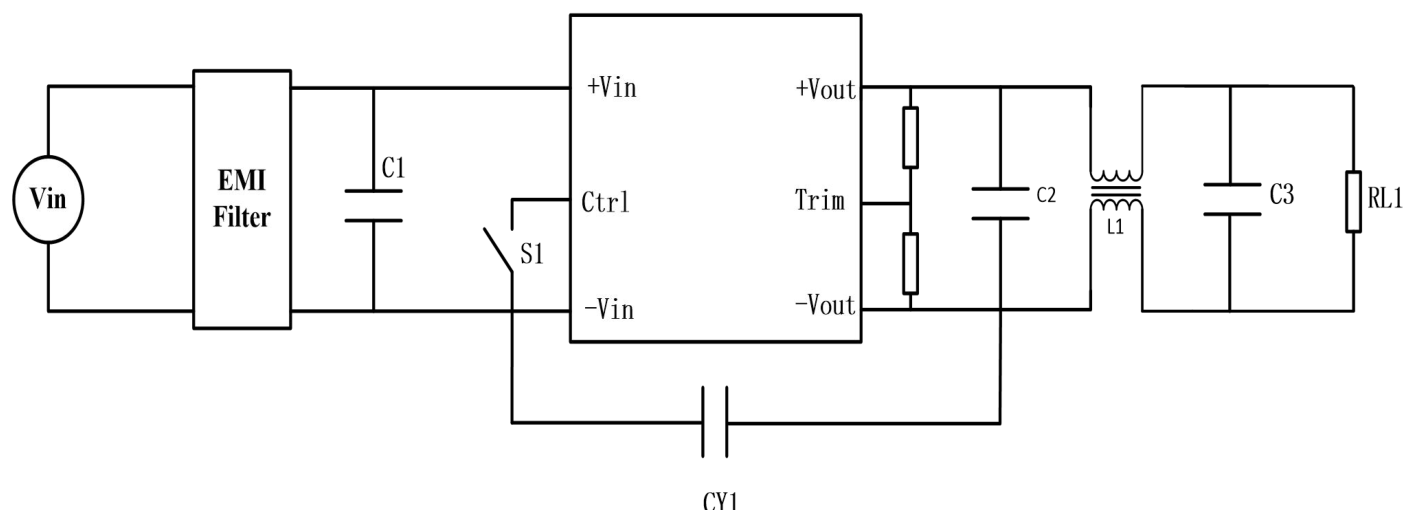

Note: 1, for other package types or temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method; 4, "*" product under development, contact technical support for details.
a: typical model QWH30-W24S12SPM, values may differ for other models, contact technical support for details.

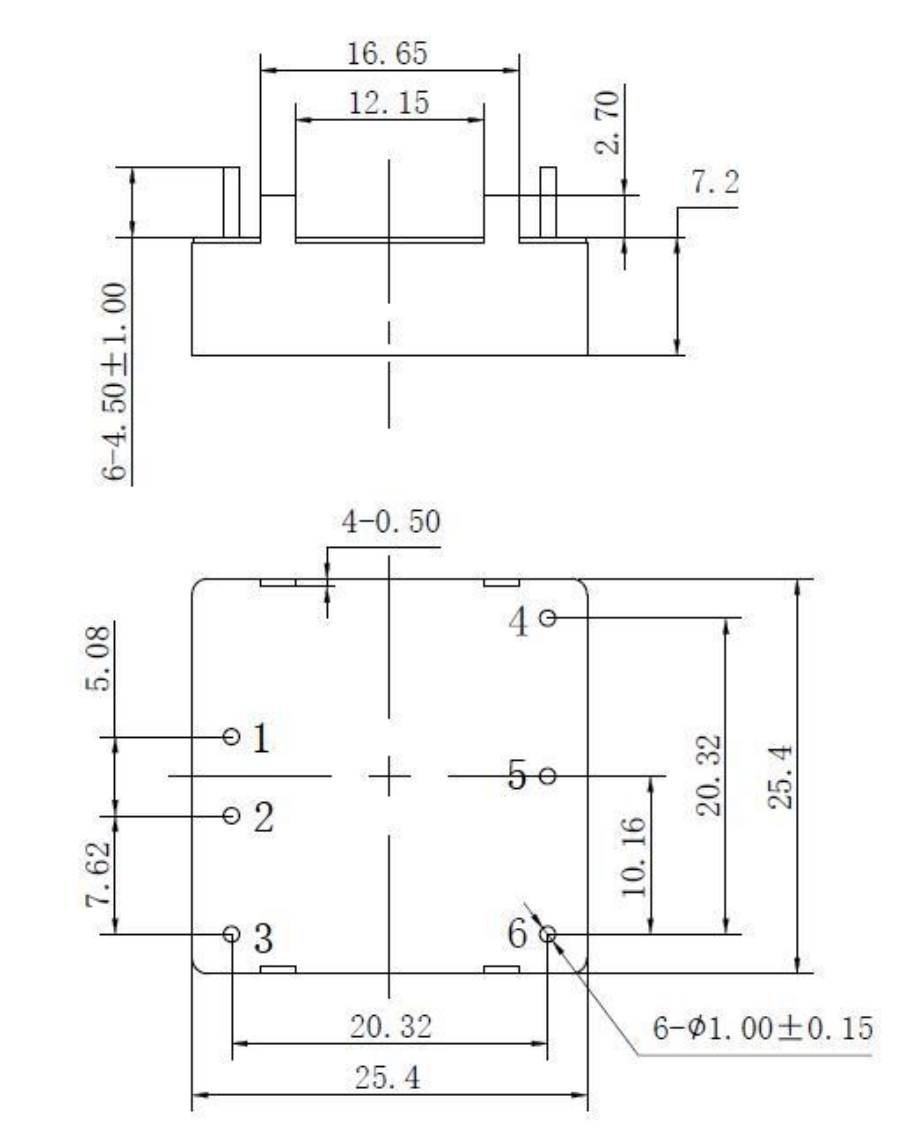

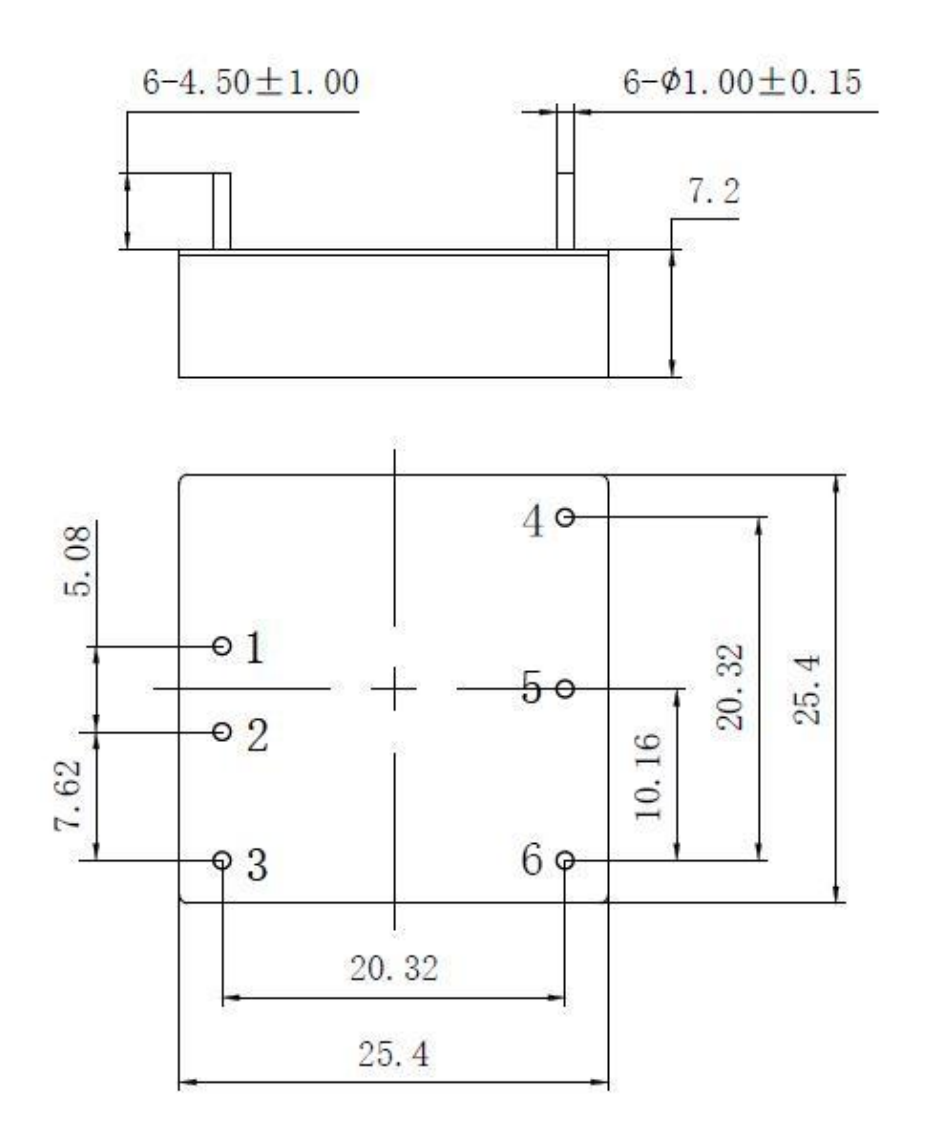

Outline & Mechanical Dimensions
