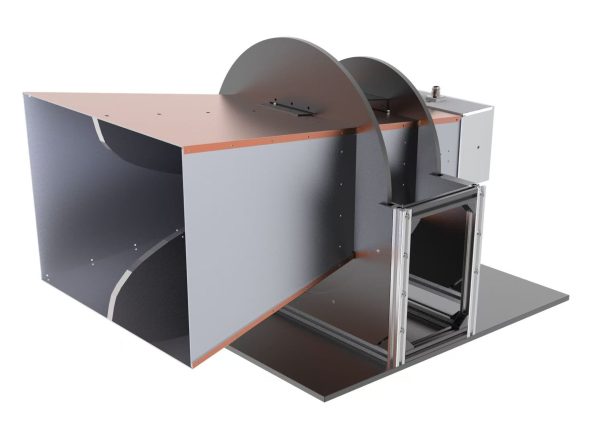

Ultra wide-band dual ridged horn antenna 0.4-6GHz
Gain: 6-19dBi.
Input Power: 0.4-1.4kW
VSWR: ＜2typ.
Impedance: 50 Ohm
Wide bandwidth.
Linear Polarized with high polarization purity
OBH-460-HG Ultra wide-band dual ridged horn antenna stands out for EMC/EMI.
- Description
- Datasheet

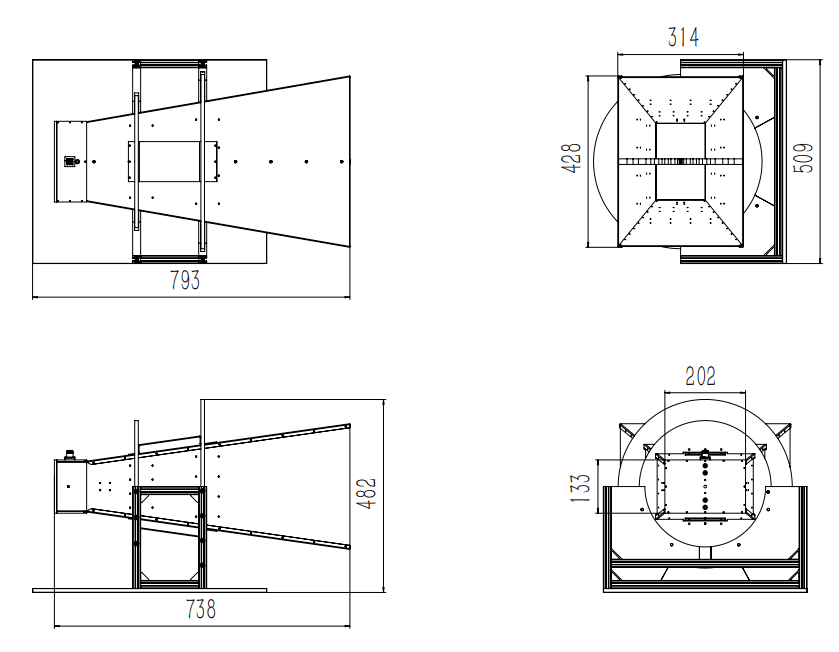

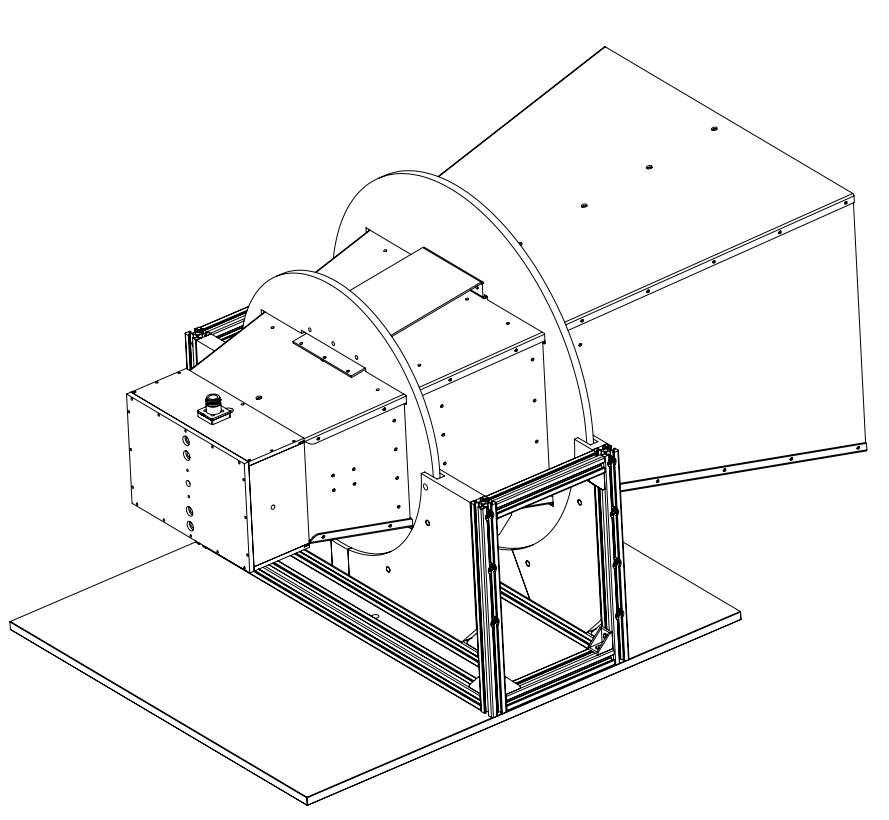

- Outline

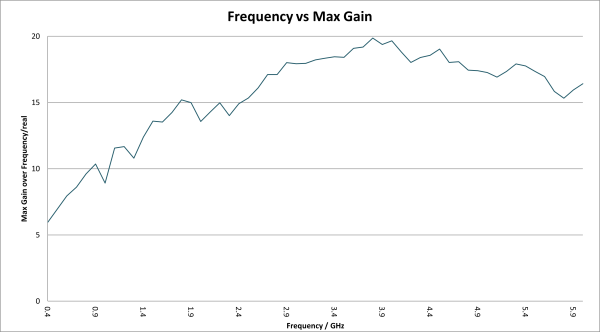

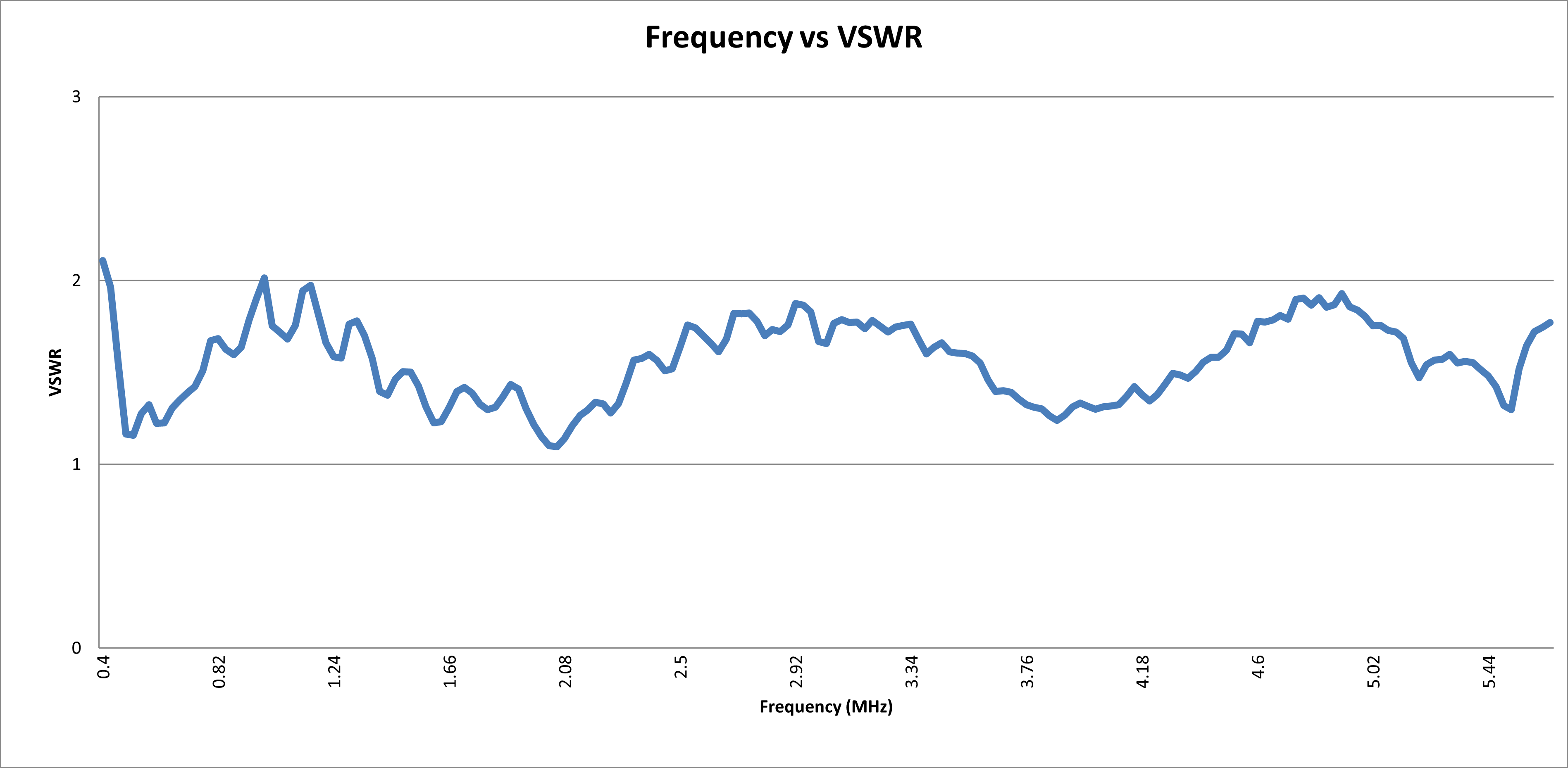

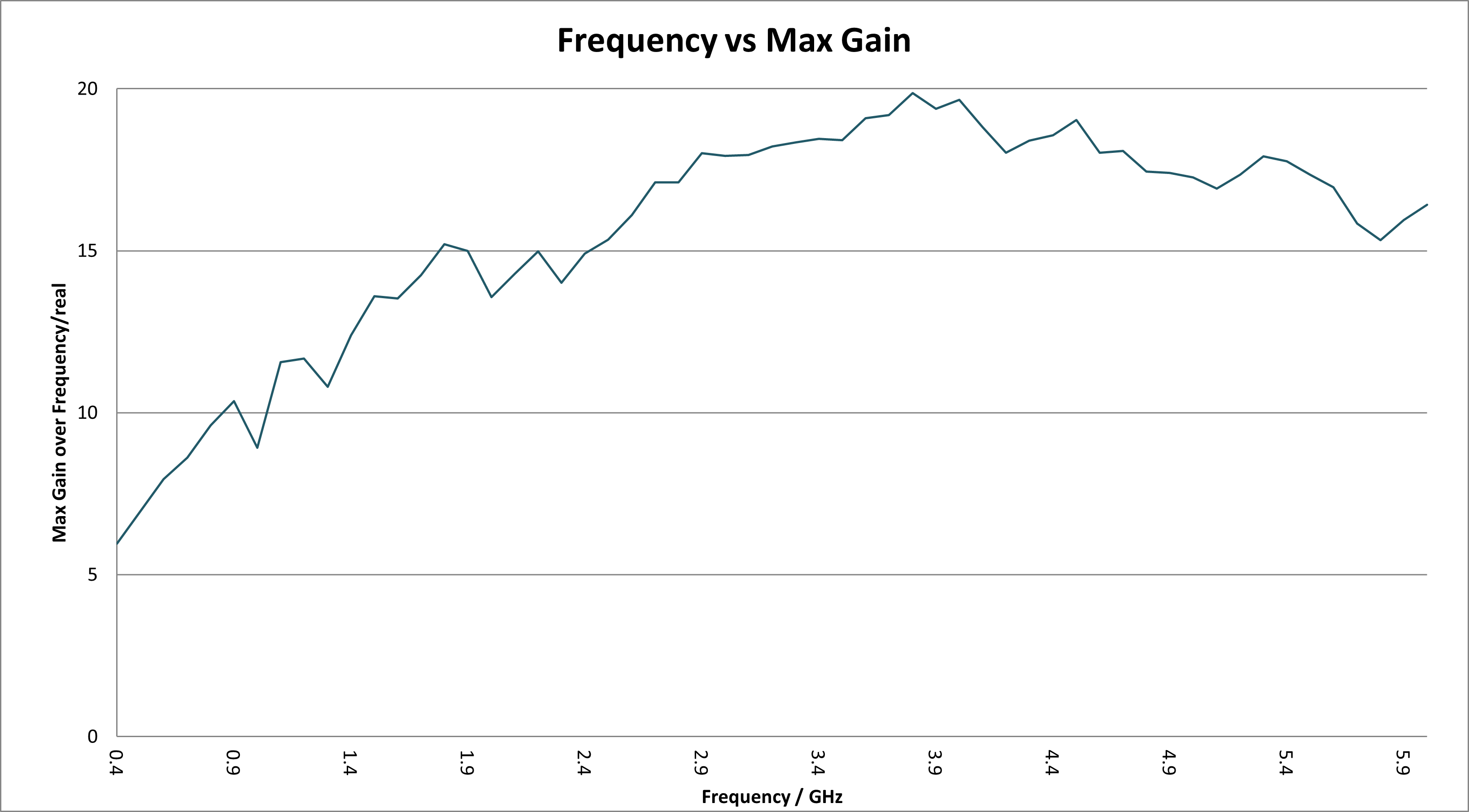

- Plot
- Reviews (0)
Description
The Ultra wide-band dual ridged horn antenna OBH-460-HG is designed for superior performance accross a wide range of frequency spectrum ensuring consistent signal strength. It can transmit a clear and precise signal even in a challenging environment. The gain increase with respect to the frequency up to approximately of 19dbi and a maximum power handling capability of upto 1400W.Especially, it performs even more outstandingly in the EMC/EMI test.
OBH-460-HG |
|
|
Ultra wide-band dual ridged horn antenna 0.4-6GHz |
|
Property |
Value |
|
Min. Frequency (GHz) |
0.4 |
|
Max. Frequency (GHz) |
6 |
|
Gain (dBi) |
6-19 |
|
Impedance (Ohm) |
50 |
|
Connector |
N-type Female |
|
VSWR |
＜2Typ. |
|
Input power(kW) |
0.4-1.4 |
Features |
|
|
Linear Polarized with high polarization purity |
|
|
Low Return Loss/VSWR |
|
|
Wide bandwidth |
|
|
High Power handling capability |
|
Applications |
|
|
EMC/EMI |
|
|
Broadcast and Telecommunications |
|
|
Radar Sensor Calibrationp |
|
|
Widely used in wireless |
|
