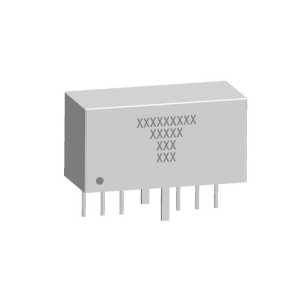

Wide-input power modules - QMJ9-W24
The QMJ9-W24 power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 9W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- DC/DC isolated conversion
- Maximum output power: 9W
- Input undervoltage protection
- Output overcurrent, short-circuit protection
- Operating temperature (Tc): -55°C to +105°C
- Storage temperature: -55°C to 125°C
Product Selection
| Model | Input voltage (V) | Output voltage (V) | Output current (A) | Efficiency (%) full load | Capacitive load (µF) max. | Ripple (mV) Typical |
|---|---|---|---|---|---|---|
| QMJ9-W24S05PPM | 9 to 40 | 5 | 1.80 | 88 | 470 | 50 |
| QMJ9-W24S12PPM | 9 to 40 | 12 | 0.75 | 89 | 220 | 80 |
| QMJ9-W24S15PPM | 9 to 40 | 15 | 0.60 | 89 | 220 | 80 |
| QMJ9-W24S24PPM | 9 to 40 | 24 | 0.38 | 89 | 220 | 80 |
| QMJ9-W24S28PPM | 9 to 40 | 28 | 0.32 | 89 | 220 | 80 |
Technical Data — QMJ9-W24
| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 9 | 24 | 40 | V | full load range |
| Input surge voltage | Room | — | — | 50 | V | Vt=100ms, full load |
| No-load power consumption a | Room | — | 0.15 | — | W | rated input voltage, no output load |
| Line regulation | Room, High, Low | -1 | — | +1 | %VO | full input-voltage range, full load |
| Load regulation | Room, High, Low | -1 | — | +1 | %VO | full load range (5V output is ±2%) |
| Turn-on delay a | Room | — | 1.4 | 10 | ms | time from power-on until output voltage reaches 10% time |

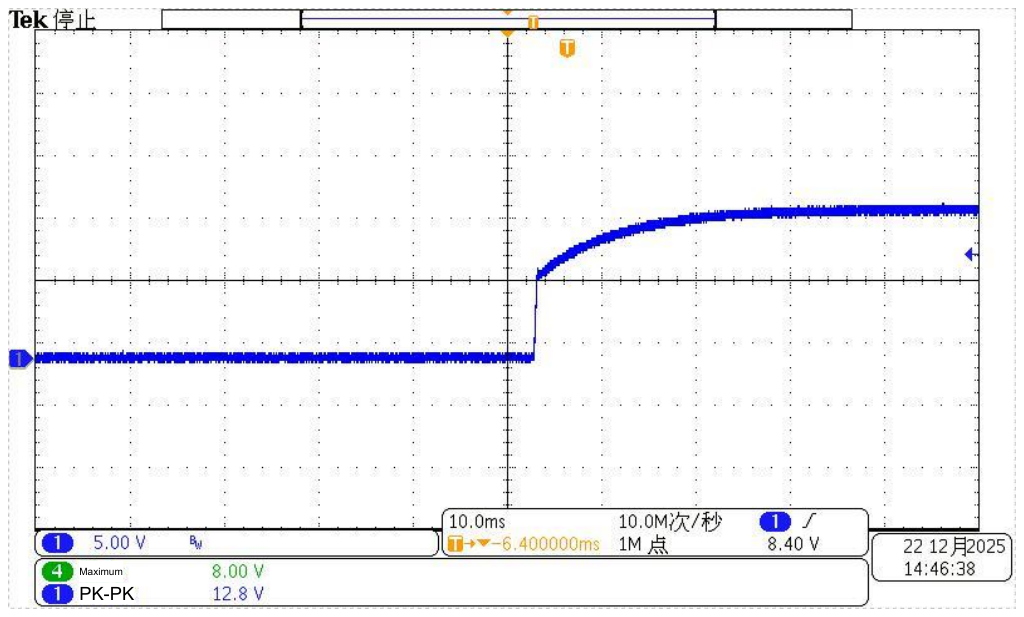

| Output voltage rise time a | Room | — | 15 | 30 | ms | output voltage from 10% rises to 90% time |
| Enable turn-on delay a | Room | — | 1.2 | 15 | ms | time from enable assertion until output voltage reaches 10% time |

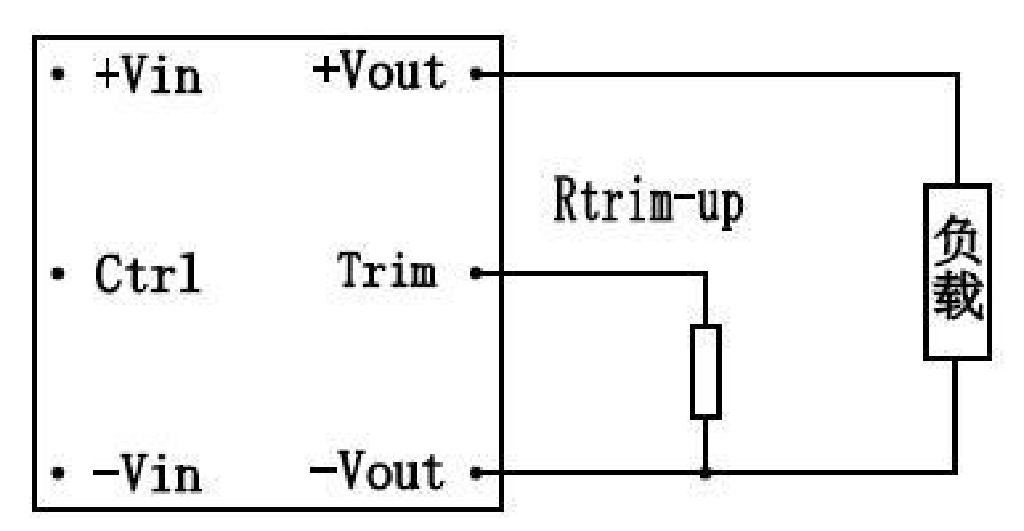

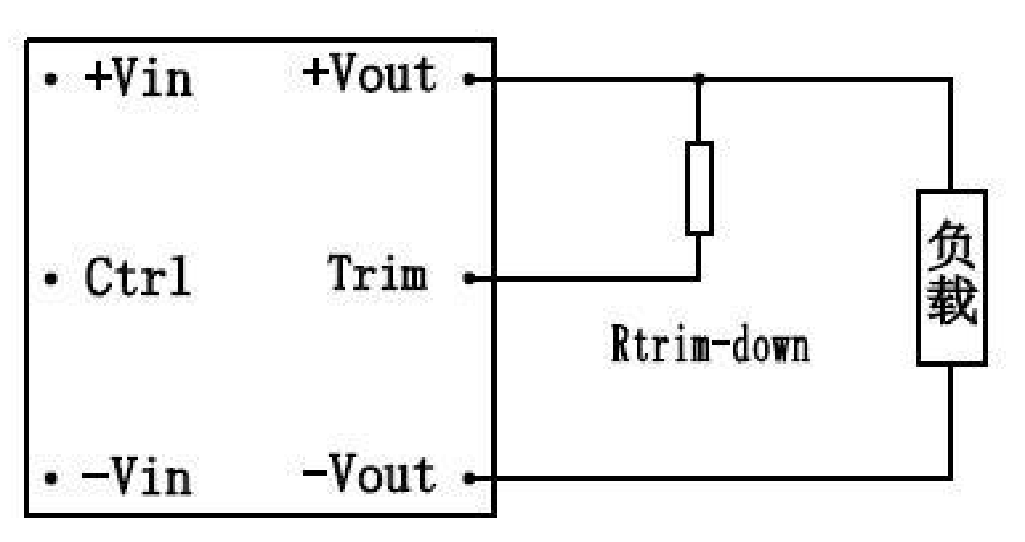

| Output voltage adjustment range | Room, High, Low | 90 | — | 110 | %VO | Io≤ maximum value and Po≤Vo×Iomax |
| Enable logic level (positive logic) | Room | 0 | — | 0.7 | V | no output when grounded or low, see the application guide for control methods |
| Enable logic level (positive logic) | Room | 3.5 | — | 12 | V | output enabled when high or open, see the application guide for control methods |
| Input undervoltage protection | Room | 6 | — | 8.8 | V | half load |
| Output overcurrent protection | Room | 110 | — | — | %IO | hiccup mode, automatic recovery after overcurrent removal |
| Output short-circuit protection | Room | — | — | — | — | hiccup mode, automatic recovery after removal of the short circuit |
| Isolation withstand voltage | Room | - | no breakdown, no flashover; input to output, 1500Vdc/60s/<3.5mA | |||
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input, output, between each pair of terminals and case |
| Switching frequency | Room | — | 500 | — | kHz | 5V output-module switching frequency is 370kHz |
| Weight | / | — | 7.5 | — | g |

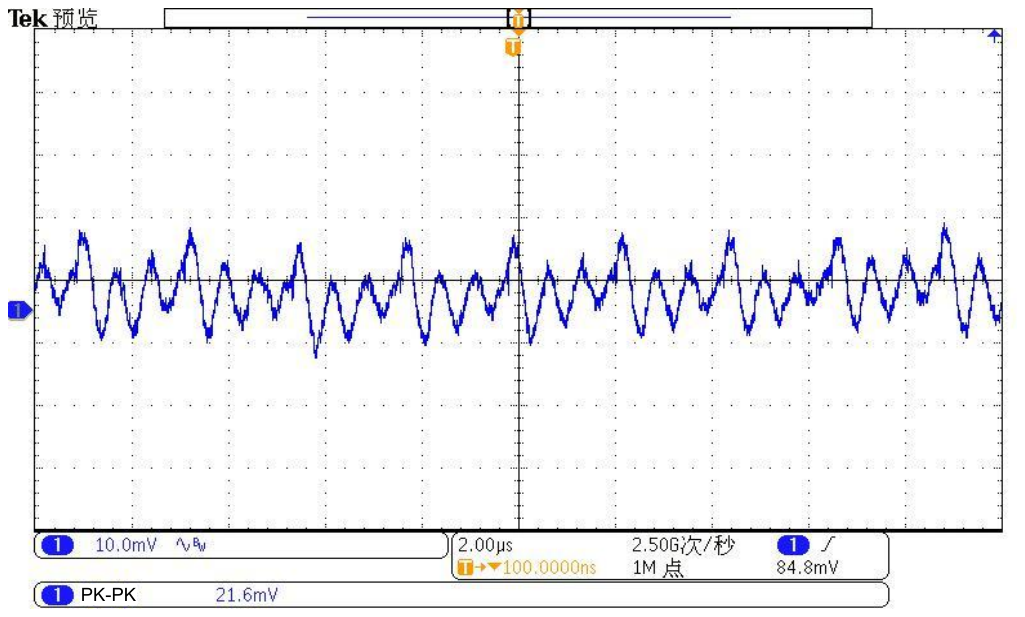

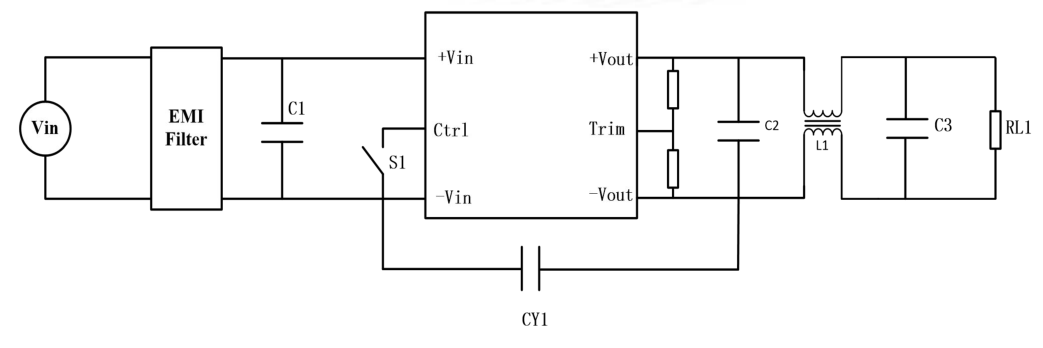

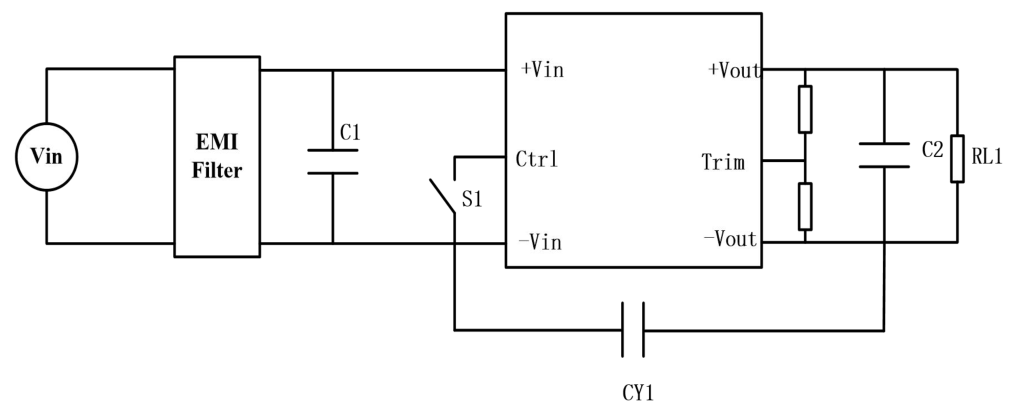

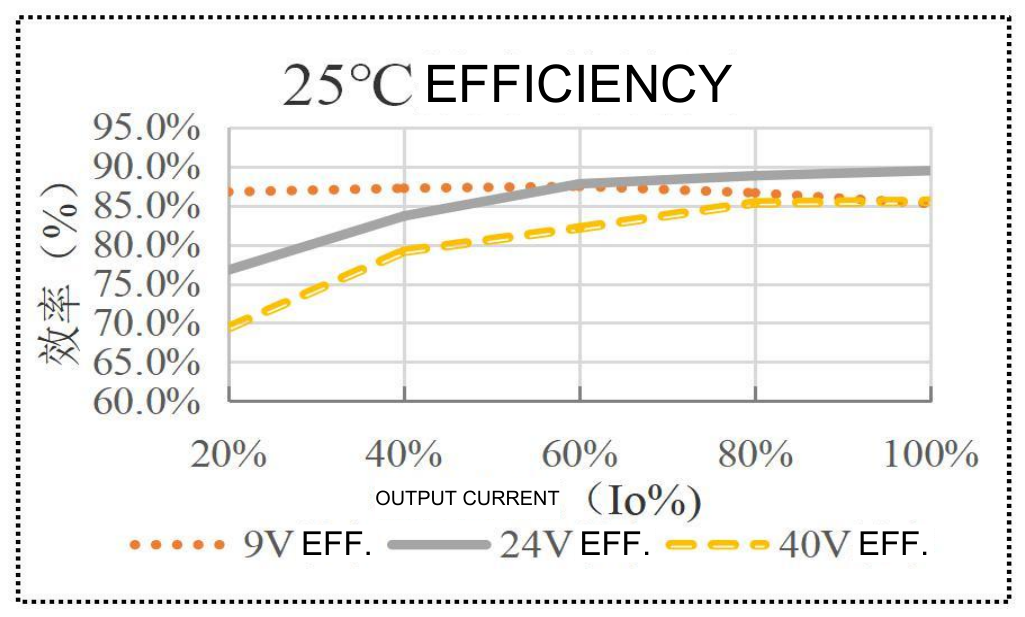

Note: 1, for other temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method.
a: Model QMJ9-W24S12PPM time, values may differ for other models, contact technical support for details.

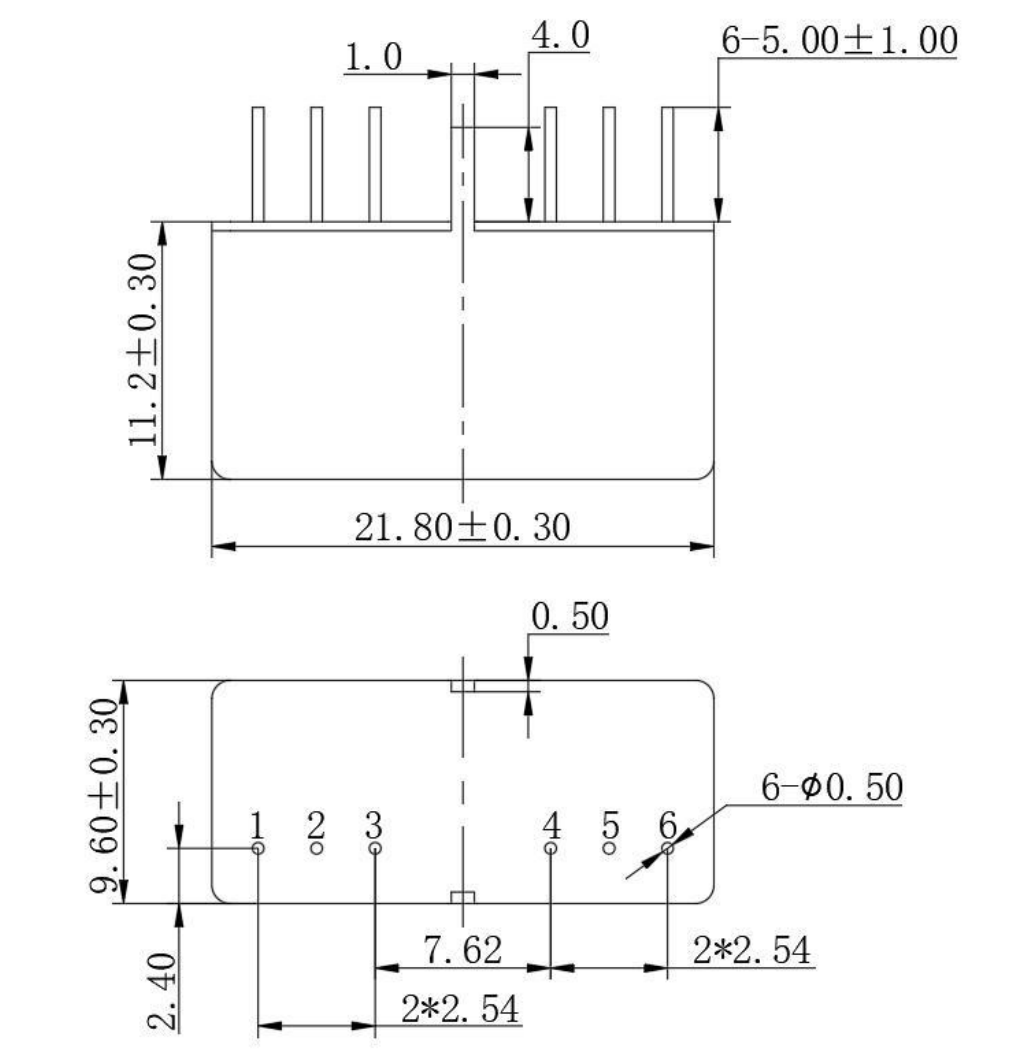

Outline & Mechanical Dimensions
