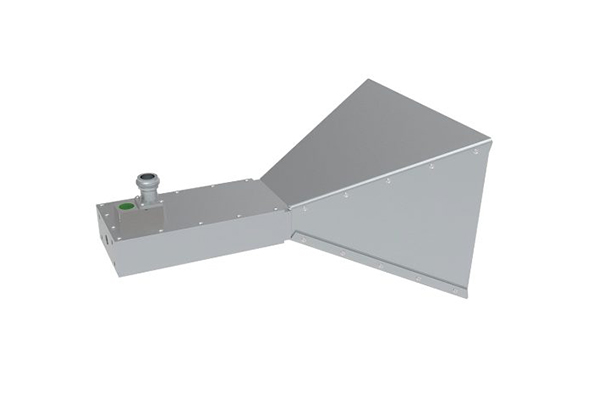

WR-187, 15 dBi Gain, 3.94GHz to 5.99GHz, Lite Pyramidal Standard Gain Horn Antenna
Frequency: 3.94-5.99GHz
Gain: 15dBi.
VSWR: 1.3Typ.
Material: Al
Waveguide: WR-187
3 dB Beamwidth: H 30° / V 30°
OLB-187-15 Pyramidal standard gain horn antenna can be applied to various microwave fields, including monitoring marine environments, detecting ships and ocean conditions, supporting maritime navigation and safety.
- Description
- Datasheet
- Reviews (0)
Description
OLB-187-15-L is a lite version of OLB-187-15 that offers a gain of 15 dBi across the band. Featuring an extremely low reflection coefficient and applicable in various microwave fields, including monitoring marine environments, detecting ships and ocean conditions, supporting maritime navigation and safety. HPBW of OLB-187-15-L has an H-plane & V-Plane beam width of H 30° / V 30°. Standard gain horn antenna has a Linear polarization. The horn antenna is integrated with the waveguide-coaxial transition section into a single unit, resulting in better VSWR and enhanced structural strength.
OLB-187-15-L |
|
|
WR-187, 15 dBi Gain, 3.94GHz to 5.99GHz, Lite Pyramidal Standard Gain Horn Antenna |
|
Property |
Value |
|
Min. Frequency (GHz) |
3.94 |
|
Max. Frequency (GHz) |
5.99 |
|
Gain (dBi) |
15 |
|
Flange |
UG-149A/U,UG-148B/U |
|
HPBW 3 dB Beamwidth |
H 30° / V 30° |
|
Waveguide |
WR-187 |
|
Material |
Al |
|
Polarization |
Linear |
|
Impedance(Ohm) |
50 |
Features |
|
|
Light Weight and Precisely Machined |
|
|
Low VSWR |
|
|
Linear Polarization |
|
|
Lower sidelobes and symmetrical radiation patterns |
|
Applications |
|
|
Marine Monitoring Radar |
|
|
Ideal for maritime navigation monitoring. |
|
|
Suitable for ocean ic condition detection. |
|
