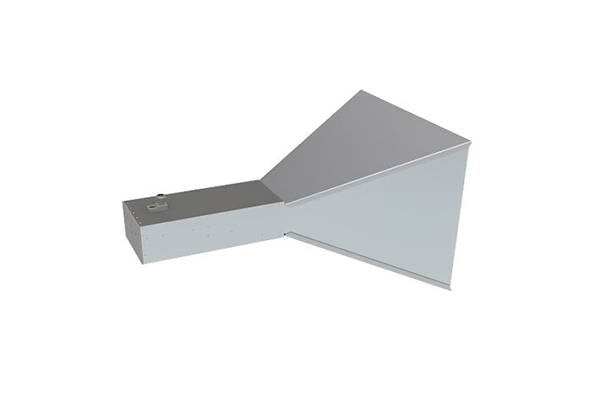

WR-430, 15 dBi Gain, 1.72GHz to 2.61 GHz, Lite Pyramidal Standard Gain Horn Antenna
Frequency: 1.72 – 2.61 GHz
Gain: 15dBi.
VSWR: 1.3Typ.
Material: Al
Waveguide: WR-430
3 dB Beamwidth: H 30° / V 30°
OLB-430-15 Pyramidal Standard Gain Horn Antenna can be applied to various microwave fields, including the detecting rain, storms, and other weather phenomena, improving the accuracy of weather forecasts.
- Description
- Datasheet
- Reviews (0)
Description
OLB-430-15-L is a lite version of OLB-430-15 that offers a gain of 15 dBi across the band. Featuring an extremely low reflection coefficient and applicable in various microwave fields, including the detecting rain, storms, and other weather phenomena, improving the accuracy of weather forecasts. HPBW of OLB-430-15-L has an H-plane & V-Plane beam width of H 30° / V 30°. Standard gain horn antenna has a Linear polarization. The horn antenna is integrated with the waveguide-coaxial transition section into a single unit, resulting in better VSWR and enhanced structural strength.
OLB-430-15-L |
|
|
WR-430, 15 dBi Gain, 1.72GHz to 2.61 GHz, Lite Pyramidal Standard Gain Horn Antenna |
|
Property |
Value |
|
Min. Frequency (GHz) |
1.72 |
|
Max. Frequency (GHz) |
2.61 |
|
Gain (dBi) |
15 |
|
Flange |
UG-435/U |
|
HPBW 3 dB Beamwidth |
H 30° / V 30° |
|
Waveguide |
WR-430 |
|
Material |
Al |
|
Polarization |
Linear |
|
Impedance(Ohm) |
50 |
Features |
|
|
Light Weight and Precisely Machined |
|
|
Low VSWR |
|
|
Linear Polarization |
|
|
Lower sidelobes and symmetrical radiation patterns |
|
Applications |
|
|
Weather Observation Radar |
|
|
Ideal for detecting rain and storms. |
|
|
Suitable for enhancing weather forecasts. |
|
