X-band Dual-polarization Active Phased Array Weather Radar
Dual-polarized Active Phased Array Antenna
Supports multi-beam scanning
High resolution, high precision, high reliability
Compact modular design for easy deployment.
All-solid-state transmitter unit
No spherical radome required
Pulse Compression
Automatic Calibration
- Description
- Datasheet
- Reviews (0)
Description

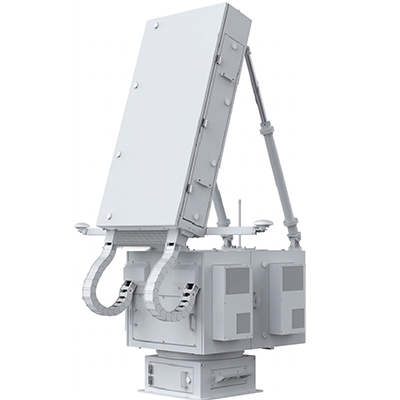

The OXPA0364 is an X-band dual-polarized active phased array weather radar featuringa compact modular design. Equipped witha dual-polarized active phased array antenna, it supports multi-beam scanning, pulse compression, and automatic calibration. The system delivers high resolution, high precision, and high reliability, requiring no spherical radome and ensuring easy deployment.
OXPA0364 |
|
|
X-band Dual-polarization Active Phased Array Weather Radar |
|
Property |
Value |
|
Radar Architectur |
Active Phased Array |
|
Operating Frequency Rang |
9.3~9.5GHz |
|
Peak Transmit Power |
>= 400W |
|
Maximum Number Of Beams |
>= 16 |
|
Operating Mod |
Dual-polarized 1D electronic scanning |
|
Quantitative Detection Distanc |
>= 60km |
|
Scanning Elevation Angl |
-2~60° |
|
First Sidelobe Level |
<= -23dB |
|
Antenna Gain |
>= 36dB |
|
Minimum Beamwidth |
<= 1.8° |
|
Cross-Polarization Isolation |
>= 30dB |
|
Range Resolution |
<= 30m |
|
Minimum Scan Tim |
<= 60s |
Features |
|
|
Dual-polarized Active Phased Array Antenna |
|
|
Supports multi-beam scanning |
|
|
High resolution, high precision, high reliability |
|
|
Compact modular design for easy deployment. |
|
|
All-solid-state transmitter unit |
|
|
No spherical radome required |
|
|
Pulse Compression |
|
|
Automatic Calibration |
|
Applications |
|
|
The system delivers high resolution, high precision, and high reliability, requiring no spherical radome and ensuring easy deployment. |
|
