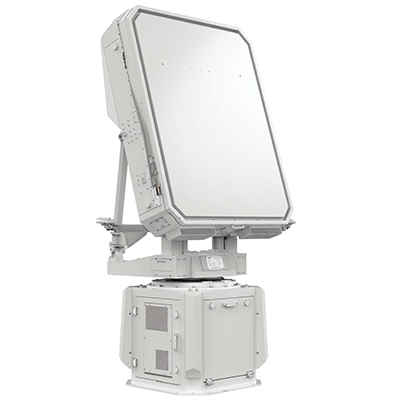

X-band Dual-polarization Multi-function Active Phased Array Radar
Dual-polarized Active Phased Array Antenna
Supports multi-beam scanning
High Resolution, High Precision, High Reliability
Compact modular design for easy deployment
All-Solid-State Transmitter Unit
No spherical radome required
Pulse compression
Auto-calibration
- Description
- Datasheet
- Reviews (0)
Description
The OXPA0464 X-band dual-polarization multi-functional active phased array radar features high resolution, high precision, and high reliability. Utilizinga compact modular design for ease of deployment, it is widely applied in hazardous weather early warning, radar network gap filling, and storm detection.
OXPA0464 |
|
|
X-band Dual-polarization Multi-function Active Phased Array Radar |
|
Property |
Value |
|
Radar Architectur |
Active Phased Array |
|
Operating Frequency Rang |
9.3~9.5GHz |
|
Peak Transmit Power |
>= 1000W |
|
Minimum scan tim |
<= 30s |
|
Maximum Number Of Beams |
>= 16 |
|
Operating Mod |
Dual-polarized 1D Electronic Scanning |
|
Quantitative Detection Distanc |
>= 75km |
|
Scanning Elevation Angl |
-2~60° |
|
First Sidelobe Level |
<= -23dB |
|
Antenna Gain |
>= 38dB |
|
Minimum Beamwidth |
<= 1.6° |
|
Cross-Polarization Isolation |
>= 30dB |
|
Range Resolution |
<= 30m |
Features |
|
|
Dual-polarized Active Phased Array Antenna |
|
|
Supports multi-beam scanning |
|
|
High Resolution, High Precision, High Reliability |
|
|
Compact modular design for easy deployment |
|
|
All-Solid-State Transmitter Unit |
|
|
No spherical radome required |
|
|
Pulse compression |
|
|
Auto-calibration |
|
Applications |
|
|
Utilizinga compact modular design for ease of deployment, it is widely applied in hazardous weather early warning, radar network gap filling, and storm detection. |
|
