X-band Fully Polarimetric Digital Active Phased Array Coastal and Maritime Surveillance Radar System
Equipped with fully polarimetric phased array electronic scanning capabilities to suppress sea clutter, detect small maritime targets, and differentiate target sizes and contours.
High spatiotemporal resolution and long-range target monitoring and tracking
Simultaneous sea surface scanning and continuous tracking of detected target trajectories.
Supports multi-source target fusion and identification integrating radar detection, video, AIS, and other data sources.
- Description
- Datasheet
- Reviews (0)
Description

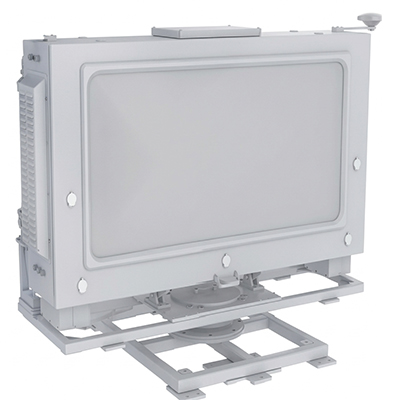

The OXPA0164 is an X-band fully polarized digital active phased array coastal and maritime surveillance radar system. Featuring full-polarization electronic scanning capabilities and high spatio-temporal resolution, the system provides long-range target monitoring and tracking, while supporting target fusion and identification with multi-source data including video and AIS. It is widely applied in maritime target detection, traffic surveillance, security, and anti-smuggling operations.
OXPA0164 |
|
|
X-band Fully Polarimetric Digital Active Phased Array Coastal and Maritime Surveillance Radar System |
|
Property |
Value |
|
Radar Architectur |
Active Phased Array |
|
Detection Rang |
>= 37.5km @SS0-4、RCS10m² |
|
Operating Frequency Rang |
9.3~9.5GHz |
|
Peak Transmit Power |
>= 256W |
|
Minimum scan tim |
<= 1.6s (+/-45°) |
|
Range resolution |
<= 7.5m |
|
Operating Mod |
Fully polarimetric 1D electronic scanning |
|
First Sidelobe Level |
<= -23dB |
|
Minimum Beamwidth |
<= 1.8° |
|
Cross-Polarization Isolation |
>= 30dB |
|
Antenna gain |
>= 36dB |
Features |
|
|
Equipped with fully polarimetric phased array electronic scanning capabilities to suppress sea clutter, detect small maritime targets, and differentiate target sizes and contours. |
|
|
High spatiotemporal resolution and long-range target monitoring and tracking |
|
|
Simultaneous sea surface scanning and continuous tracking of detected target trajectories. |
|
|
Supports multi-source target fusion and identification integrating radar detection, video, AIS, and other data sources. |
|
Applications |
|
|
It is widely applied in maritime target detection, traffic surveillance, security, and anti-smuggling operations. |
|
