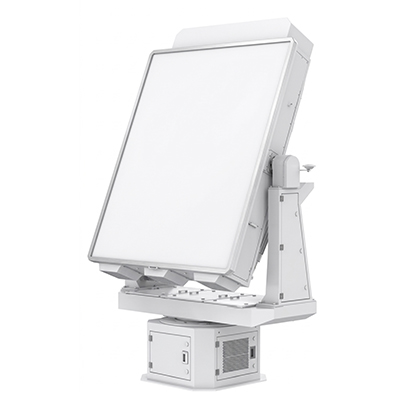

X-band Fully Polarimetric Multi-function Digital Active Phased Array Radar

OXPA0256

X-band Fully Polarimetric Multi-function Digital Active Phased Array Radar

Property

Value

Radar Architectur

Active Phased Array

Operating Frequency Rang

9.3~9.5GHz

Peak Transmit Power

>= 6400W

Range resolution

<=30m

Maximum Number Of Beams

>= 16

Operating Mod

Full-polarization 1D electronic scanning

Quantitative Detection Distanc

>= 150km

Scanning Elevation Angl

-2~60°

First Sidelobe Level

<= -25dB

Antenna Gain

>= 42dB

Minimum Beamwidth

<= 1°

Fastest scan tim

<= 5s

Cross-Polarization Isolation

>= 35dB

Features

Full-polarization Active Phased Array Antenna

Supports multi-beam scanning

High-speed, high-precision azimuth servo scanning

High transmit power and long detection range.

All-solid-state transmitter unit

Simultaneous detection of meteorological and aerial targets.

Applications

The radar is capable of simultaneous detection of meteorological and aerial targets, and is widely applied in severe weather early warning, high-resolution precision weather sensing, air traffic control, and surveillance of low-altitude, small, and slow (LSS) aerial targets.
