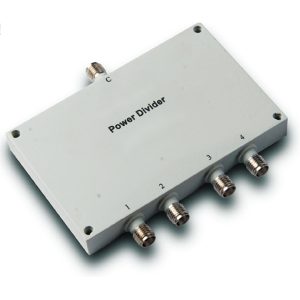

0.5-1GHz Insertion Loss 0.60dB SMA Connector 0° Power Divider
Frequency Range: 0.5-1GHz
4-Way SMA 0° Power Divider
Low Insertion Loss (0.60dB)
High Isolation (20dB)
Low VSWR (Input 1.25 / Output 1.20)
Excellent Phase and Amplitude Balance
Compact Size
Mass production consistency
- Description
- Datasheet

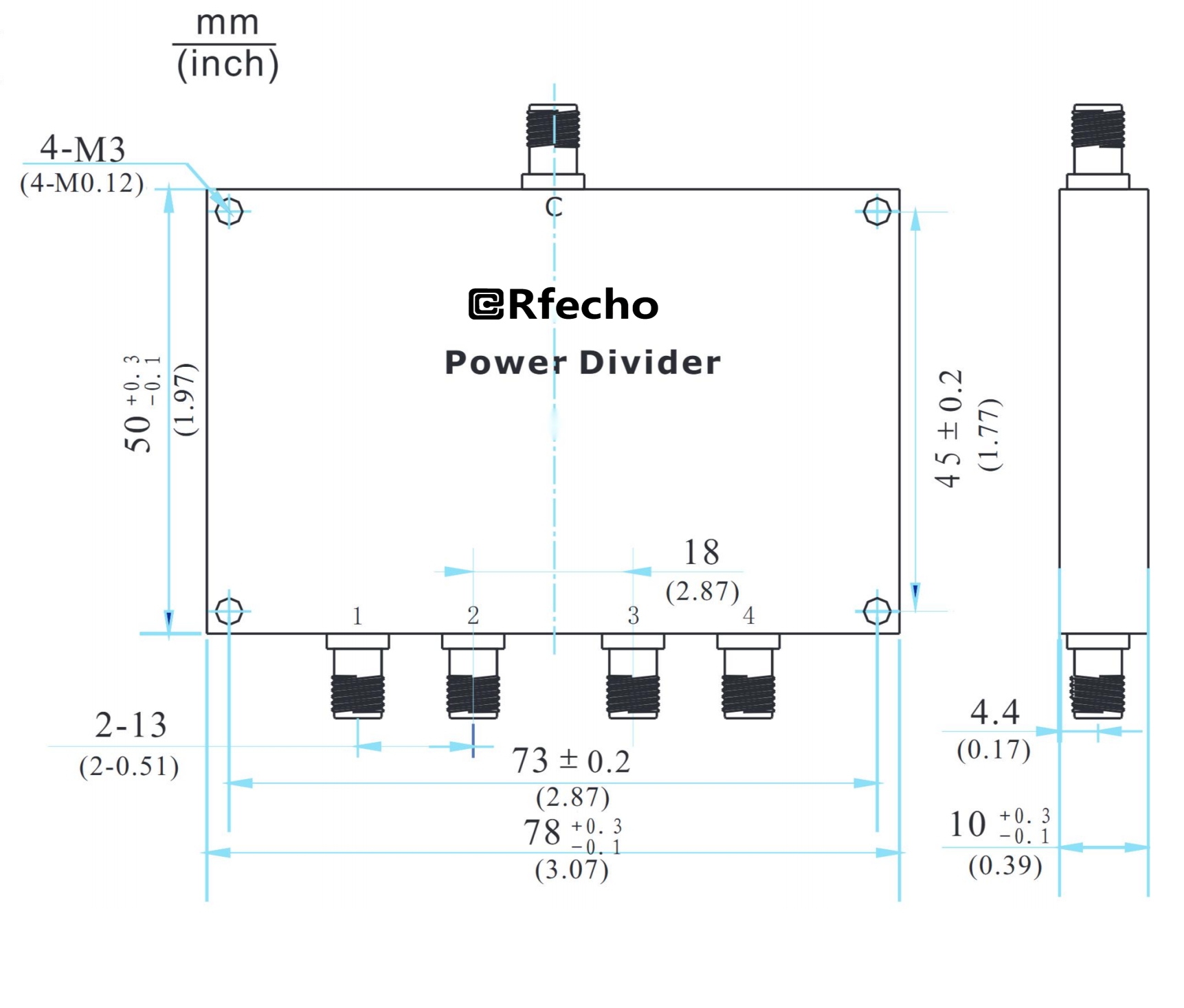

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are SMA connector 0°power dividers. This specific model, OPD-A0430, covers thefrequency range of 0.5-1GHz. The series features small size,low loss, low VSWR, and high isolation. Utilizing mass production control methods, the series ensures high productconsistency and meets large-volume supply requirements.The OPD-A0430 is primarily used in electronic warfare, navigation, test and measurement, and communication systemsfor the distribution and combination of 4-way microwave signals.
OPD-A0430 |
|
|
0.5-1GHz Insertion Loss 0.60dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
0.5-1GHz |
|
Insertion Loss |
0.60dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.30dB |
|
Phase Balance |
±3° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.25 |
|
Output VSWR |
1.2 |
|
Compliance |
Compliance: GJB-1509-1992 |
Features |
|
|
Frequency Range: 0.5-1GHz |
|
|
4-Way SMA 0° Power Divider |
|
|
Low Insertion Loss (0.60dB) |
|
|
High Isolation (20dB) |
|
|
Low VSWR (Input 1.25 / Output 1.20) |
|
|
Excellent Phase and Amplitude Balance |
|
|
Compact Size |
|
|
Mass production consistency |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
